You can vary the linear or angular spacing of individual instances of
linear and circular component patterns to override the pattern spacing.
This example modifies an instance of a linear component pattern by moving a
bracket away from a pipe.
To modify an instance in a pattern:
-
Open a model that contains a linear component
pattern.
-
In the FeatureManager design tree, right-click the linear
component pattern and click Edit
Feature
.
-
In the PropertyManager, under Instances to Override, click in Modified instances
.
In
the graphics area, pink selection orbs display on the pattern instances.
-
Click the selection orb for the instance closest to the pipe
and click Modify Instance.
-

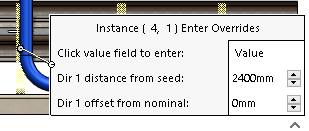

In the callout, modify the value for Dir 1 offset from nominal to -60mm and click outside of the callout.
A shadow instance appears in the new position.
-
In the PropertyManager, click
.

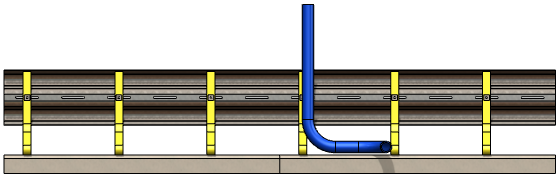

The bracket is no longer behind the pipe.
