Saving Models in MySession

You can select options to save a document that include adding a bookmark, creating a new revision, or converting part geometry for use with 3DEXPERIENCE modeling and simulation apps.

To save models in MySession:

  1. Do one of the following:

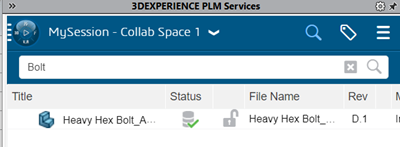

    • Right-click the model and click Save.

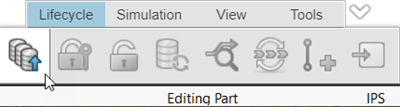

    • Open the action bar at the bottom of MySession and click Lifecycle > Save.
    The action bar is minimized at the bottom of MySession.

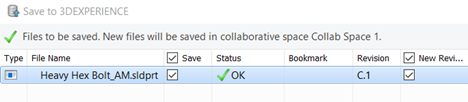

  2. In the Save to 3DEXPERIENCE dialog box, select options, such as:
    • Save
    • Optional. New Revision
    • Optional. Release reservation after Save

      When you release the model, another user can reserve and modify it.

  3. Click Save.

MySession unreserves the model and updates the revision. For details, see Save Dialog Box in Dassault Systèmes User Assistance. Access to Dassault Systèmes User Assistance requires 3DEXPERIENCE credentials.
