Enhanced Large Tooltips for Toolbars

Enhanced large tooltips provide expanded information for tools in a toolbar. Some enhanced tooltips include images or animations.

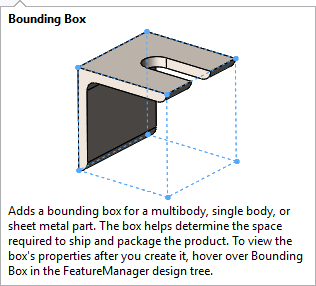

For example, the Bounding Box large tooltip provides information about viewing the bounding box properties and includes an image of a bounding box.

To use enhanced large tooltips:

  1. Click Tools > Customize and under Tooltips, click Show tooltips.
  2. Under Show tooltips, select an option:
    Large tooltips with images Displays a brief description with the tooltip. Some tooltips may include an image or short animation.
    Large tooltips without images Displays a brief description with the tooltip.
    Small tooltips Displays the tool name.
  3. Click OK.
  4. Hover over a tool in a toolbar to view the enhanced tooltip.
