Traverse Folders and Files in Vault Example (C#)
This example shows how to recursively traverse all of the
folders and files in a vault.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio
2010 or later.
// 2. Click File > New > Project > Visual C# > Windows Forms Application.
// 3. Type TraverseFilesFoldersCSharp in Name.
// 4. Click Browse and navigate to the folder where to create the project.
// 5. Click OK.
// 6. Replace the code in Form1.cs with this code.
// 7. Replace the code in Form1.Designer.cs with
this code.
// 8. If using Microsoft Visual Studio 2012 and .NET Framework 4.5, ensure
// that the Prefer 32-bit check box is cleared
(right-click the project
// name in the Solution Explorer and click Properties.
On the Build tab,
// if Platform target is set to Any CPU,
ensure that Prefer 32-bit is cleared.)
// 9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
Browse,
// navigate to the top folder of your SOLIDWORKS PDM Professional installation,
// locate and select EPDM.Interop.epdm.dll).
// 10. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 11. Ensure
that the vault contains one or more checked-out files.
// 12. Click Debug > Start Debugging or press F5.
//
// Postconditions:

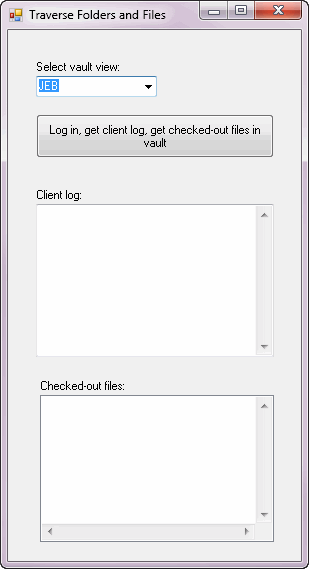

// 1. Displays a Traverse
Folders and Files dialog.
// 2. Select a vault.
// 3. Click Log
in, get client log, get checked-out files in vault.
// 4. Displays a message box with the vault type.
// 5. Click OK.
// 6. Populates Client log and Checked-out files.
// 7. Close the dialog.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Diagnostics;
using System.Windows.Forms;
using System.Runtime.InteropServices;
using EPDM.Interop.epdm;
namespace TraverseFilesAndFoldersCSharp
{
public partial class Form1 : Form
{
IEdmVault20 vault;
public Form1()
{
InitializeComponent();
}
void TraverseFilesAndFolders_Load(System.Object sender, System.EventArgs e)
{
try
{
//Declare and create an instance of IEdmVault5
IEdmVault5 vault1 = new EdmVault5();
vault = (IEdmVault20)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void TraverseFoldersButton_Click(System.Object sender, System.EventArgs e)
{
try
{
//Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
MessageBox.Show(vault.GetVaultType().ToString(), "Vault type");
String log;
vault.GetClientLog(out log);
textBox1.Text = log;
TraverseFolder(vault.RootFolder);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void TraverseFolder(IEdmFolder5 CurFolder)
{
try
{
//Enumerate the files in the folder
IEdmPos5 FilePos = default(IEdmPos5);
FilePos = CurFolder.GetFirstFilePosition();
IEdmFile5 file = default(IEdmFile5);
while (!FilePos.IsNull)
{
file = CurFolder.GetNextFile(FilePos);
//Get its checked out status
if (file.IsLocked)
{
listBox1.Items.Add(file.LockPath);
}
}
//Enumerate the sub-folders in the folder
IEdmPos5 FolderPos = default(IEdmPos5);
FolderPos = CurFolder.GetFirstSubFolderPosition();
while (!FolderPos.IsNull)
{
IEdmFolder5 SubFolder = default(IEdmFolder5);
SubFolder = CurFolder.GetNextSubFolder(FolderPos);
TraverseFolder(SubFolder);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
//Form1.Designer.cs
namespace TraverseFilesAndFoldersCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.TraverseFoldersButton = new System.Windows.Forms.Button();
this.label1 = new System.Windows.Forms.Label();
this.label2 = new System.Windows.Forms.Label();
this.listBox1 = new System.Windows.Forms.ListBox();
this.textBox1 = new System.Windows.Forms.TextBox();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(25, 30);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(28, 46);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
// TraverseFoldersButton
//
this.TraverseFoldersButton.Location = new System.Drawing.Point(28, 84);
this.TraverseFoldersButton.Name = "TraverseFoldersButton";
this.TraverseFoldersButton.Size = new System.Drawing.Size(238, 44);
this.TraverseFoldersButton.TabIndex = 2;
this.TraverseFoldersButton.Text = "Log in, get client log, get checked-out files in vault";
this.TraverseFoldersButton.UseVisualStyleBackColor = true;
this.TraverseFoldersButton.Click += new System.EventHandler(this.TraverseFoldersButton_Click);
//
// label1
//
this.label1.AutoSize = true;
this.label1.Location = new System.Drawing.Point(25, 158);
this.label1.Name = "label1";
this.label1.Size = new System.Drawing.Size(53, 13);
this.label1.TabIndex = 3;
this.label1.Text = "Client log:";
//
// label2
//
this.label2.AutoSize = true;
this.label2.Location = new System.Drawing.Point(29, 349);
this.label2.Name = "label2";
this.label2.Size = new System.Drawing.Size(92, 13);
this.label2.TabIndex = 4;
this.label2.Text = "Checked-out files:";
//
// listBox1
//
this.listBox1.FormattingEnabled = true;
this.listBox1.HorizontalScrollbar = true;
this.listBox1.Location = new System.Drawing.Point(32, 365);
this.listBox1.Name = "listBox1";
this.listBox1.ScrollAlwaysVisible = true;
this.listBox1.Size = new System.Drawing.Size(234, 147);
this.listBox1.TabIndex = 5;
//
// textBox1
//
this.textBox1.Location = new System.Drawing.Point(28, 174);
this.textBox1.Multiline = true;
this.textBox1.Name = "textBox1";
this.textBox1.ScrollBars = System.Windows.Forms.ScrollBars.Both;
this.textBox1.Size = new System.Drawing.Size(238, 153);
this.textBox1.TabIndex = 6;
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(293, 531);
this.Controls.Add(this.textBox1);
this.Controls.Add(this.listBox1);
this.Controls.Add(this.label2);
this.Controls.Add(this.label1);
this.Controls.Add(this.TraverseFoldersButton);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Traverse Folders and Files";
this.Load += new System.EventHandler(this.TraverseFilesAndFolders_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label VaultsLabel;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.Button TraverseFoldersButton;
private System.Windows.Forms.Label label1;
private System.Windows.Forms.Label label2;
private System.Windows.Forms.ListBox listBox1;
private System.Windows.Forms.TextBox textBox1;
}
}
