Batch Get and Set Reference Variables Example (C#)
This example shows how to get and set reference variables in one batch.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type BatchGetSetRefVariables_CSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and
click
// EPDM.Interop.epdm.dll, click Open, and click
Add).
// 3. Add Microsoft.VisualBasic as a reference (click
// COM in the left-side panel, click
// Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 5. Open the Administration tool.
// a. Log into a vault.
// b. Double-click Bill of Materials > BOM.
// c. Click Description in the Columns list.
// d. Select Look for variable in reference specific
values.
// e. Click OK.
// 6. Open File Explorer on a vault view.
// 7. Ensure that an assembly and its referenced parts reside in the
vault.
// 8. Check out the assembly.
// 9. Click the Bill of Materials tab in the vault view.
// 10. Select Latest in the Reference Version dropdown.
// 11. Select @ in the Configuration dropdown.
// 12. Type a description in Description for each part in the assembly.
// 13. Click Save on the Bill of Materials toolbar and close the vault
view.
// 14. Click Debug > Start Debugging or press F5.
//
// Postconditions:

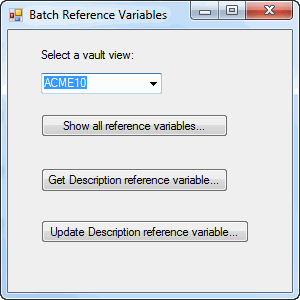

// 1. The Batch Reference Variables dialog box displays.
// a. Select a vault view.
// b. Click Show
all reference variables.
// 1. In the Select Parent File
dialog, select the assembly file identified
// in Preconditions
step 8 and click Open.
// 2. In the Select
Child File dialog, select a part file referenced by the
// assembly file and click Open.
//
Displays all of the reference variables for all
configurations.
//
3. Click OK in the dialog box.
//
c. Click Get Description reference variable.
//
1. In the Select Parent File dialog, select
the assembly file identified
// in Preconditions
step 8 and click Open.
// 2.
In the Select
Child File dialog, select a part file referenced by the
// assembly file and click Open.
//
Displays the current value of reference variable,
Description.
//
3. Click OK in the dialog box.
// d. Click Update Description reference variable.
//
1. In the Select Parent File dialog, select
the assembly file identified
// in Preconditions
step 8 and click Open.
// 2.
In the Select
Child File dialog, select a part file referenced by the
// assembly file and click Open.
// 3. Type a new description and click
OK.
//
4. Click OK in the dialog box.
// 2. Close the Batch Reference Variables dialog box.
// 3. Open the vault view and click the assembly.
// 4. Click the Bill of Materials tab.
// 5. Select @ in the
Configuration dropdown.
// 6. Observe the text in the Description column for the updated
part.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;
namespace BatchGetSetRefVariables_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault = null;
IEdmFolder5 ppoRetParentFolder;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault = new EdmVault5();
IEdmVault8 vault1 = (IEdmVault8)vault;
EdmViewInfo[] Views = null;
vault1.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void Button1_Click(System.Object sender, System.EventArgs e)
{
try
{
ShowRefVars((IEdmVault11)vault);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void Button2_Click(System.Object sender, System.EventArgs e)
{
try
{
ShowRefDescription((IEdmVault11)vault);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void Button3_Click(System.Object sender, System.EventArgs e)
{
try
{
UpdateRefDescription((IEdmVault11)vault);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void ShowRefVars(IEdmVault11 vault)
{
if (vault == null)
{
vault = (IEdmVault11)new EdmVault5();
}
if (!vault.IsLoggedIn)
{
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Let the user select the parent file
IEdmStrLst5 pathList = default(IEdmStrLst5);
pathList = (IEdmStrLst5)vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
if (pathList == null)
return;
IEdmFile8 parent = default(IEdmFile8);
parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Let the user select the child file
pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
if (pathList == null)
return;
IEdmFile8 child = default(IEdmFile8);
child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Get reference variables in the latest version
IEdmBatchRefVars batch = default(IEdmBatchRefVars);
batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);
EdmRefVar[] vars = null;
batch.GetAllRefVars(out vars, parent.ID, 0, child.ID);
//Show the result
string msg = null;
msg = "Reference variables:" + Constants.vbLf + Constants.vbLf;
int idx = 0;
idx = Information.LBound(vars);
while (idx <= Information.UBound(vars))
{
msg = msg + "Parent ID: " + Convert.ToString(vars[idx].mlParentFileID) + Constants.vbLf;
msg = msg + "Parent cfg: " + vars[idx].mbsParentCfgName + Constants.vbLf;
msg = msg + "Child ID: " + Convert.ToString(vars[idx].mlChildFileID) + Constants.vbLf;
msg = msg + "Child cfg: " + vars[idx].mbsChildCfgName + Constants.vbLf;
msg = msg + "Status: " + vault.GetErrorMessage(vars[idx].mhResult) + Constants.vbLf;
msg = msg + "Variable ID: " + Convert.ToString(vars[idx].mlVarID) + Constants.vbLf;
msg = msg + "Value: " + Convert.ToString(vars[idx].moValue) + Constants.vbLf;
msg = msg + Constants.vbLf;
idx = idx + 1;
}
Interaction.MsgBox(msg);
}
private void ShowRefDescription(IEdmVault11 vault)
{
if (vault == null)
{
vault = (IEdmVault11)new EdmVault5();
}
if (!vault.IsLoggedIn)
{
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Let the user select the parent file
IEdmStrLst5 pathList = default(IEdmStrLst5);
pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
if (pathList == null)
return;
IEdmFile8 parent = default(IEdmFile8);
parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Let the user select the child file
pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
if (pathList == null)
return;
IEdmFile8 child = default(IEdmFile8);
child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Get the Description variable
IEdmVariableMgr6 varMgr = default(IEdmVariableMgr6);
varMgr = (IEdmVariableMgr6)vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr);
IEdmVariable5 desc = default(IEdmVariable5);
desc = varMgr.GetVariable("Description");
if (desc == null)
return;
//Get reference variables in the latest version
IEdmBatchRefVars batch = default(IEdmBatchRefVars);
batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);
EdmRefVar[] vars = new EdmRefVar[1];
vars[0].mlParentFileID = parent.ID;
vars[0].mlChildFileID = child.ID;
vars[0].mbsChildCfgName = "@";
vars[0].mbsParentCfgName = "@";
vars[0].mlParentVersion = 0;
vars[0].mlVarID = desc.ID;
batch.GetRefVars(ref vars);
//Show the result to the caller
string msg = null;
msg = "Reference variable: " + "Description" + Constants.vbLf + Constants.vbLf;
msg = msg + "Status: " + vault.GetErrorMessage(vars[0].mhResult) + Constants.vbLf;
msg = msg + "Value: " + Convert.ToString(vars[0].moValue);
Interaction.MsgBox(msg);
}
private void UpdateRefDescription(IEdmVault11 vault)
{
if (vault == null)
{
vault = (IEdmVault11)new EdmVault5();
}
if (!vault.IsLoggedIn)
{
vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Let the user select the parent file
IEdmStrLst5 pathList = default(IEdmStrLst5);
pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
if (pathList == null)
return;
IEdmFile8 parent = default(IEdmFile8);
parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Let the user select the child file
pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
if (pathList == null)
return;
IEdmFile8 child = default(IEdmFile8);
child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);
//Get the Description variable
IEdmVariableMgr6 varMgr = default(IEdmVariableMgr6);
varMgr = (IEdmVariableMgr6)vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr);
IEdmVariable5 desc = default(IEdmVariable5);
desc = varMgr.GetVariable("Description");
if (desc == null)
return;
//Get reference variables in the latest version
IEdmBatchRefVars batch = default(IEdmBatchRefVars);
batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);
EdmRefVar[] vars = new EdmRefVar[1];
vars[0].mlParentFileID = parent.ID;
vars[0].mlChildFileID = child.ID;
vars[0].mbsChildCfgName = "@";
vars[0].mbsParentCfgName = "@";
vars[0].mlParentVersion = 0;
vars[0].mlVarID = desc.ID;
batch.GetRefVars(ref vars);
//Let the user edit the Description variable
vars[0].moValue = Interaction.InputBox("Enter new description:", "Update Reference Variable", vars[0].moValue.ToString());
//Store the value back in the reference
batch.SetRefVars(ref vars);
Interaction.MsgBox(vault.GetErrorMessage(vars[0].mhResult));
}
}
}
Back to top
//Form1.Designer.cs
namespace BatchGetSetRefVariables_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.VaultsLabel = new System.Windows.Forms.Label();
this.Button1 = new System.Windows.Forms.Button();
this.Button2 = new System.Windows.Forms.Button();
this.Button3 = new System.Windows.Forms.Button();
this.SuspendLayout();
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(33, 43);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 0;
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(30, 18);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(100, 13);
this.VaultsLabel.TabIndex = 1;
this.VaultsLabel.Text = "Select a vault view:";
//
//Button1
//
this.Button1.Location = new System.Drawing.Point(33, 84);
this.Button1.Name = "Button1";
this.Button1.Size = new System.Drawing.Size(187, 23);
this.Button1.TabIndex = 2;
this.Button1.Text = "Show all reference variables...";
this.Button1.UseVisualStyleBackColor = true;
this.Button1.Click += new System.EventHandler(Button1_Click);
//
//Button2
//
this.Button2.Location = new System.Drawing.Point(33, 138);
this.Button2.Name = "Button2";
this.Button2.Size = new System.Drawing.Size(187, 24);
this.Button2.TabIndex = 3;
this.Button2.Text = "Get Description reference variable...";
this.Button2.UseVisualStyleBackColor = true;
this.Button2.Click += new System.EventHandler(Button2_Click);
//
//Button3
//
this.Button3.Location = new System.Drawing.Point(33, 190);
this.Button3.Name = "Button3";
this.Button3.Size = new System.Drawing.Size(208, 23);
this.Button3.TabIndex = 4;
this.Button3.Text = "Update Description reference variable...";
this.Button3.UseVisualStyleBackColor = true;
this.Button3.Click += new System.EventHandler(Button3_Click);
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 262);
this.Controls.Add(this.Button3);
this.Controls.Add(this.Button2);
this.Controls.Add(this.Button1);
this.Controls.Add(this.VaultsLabel);
this.Controls.Add(this.VaultsComboBox);
this.Name = "Form1";
this.Text = "Batch Reference Variables";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.Button Button1;
internal System.Windows.Forms.Button Button2;
internal System.Windows.Forms.Button Button3;
#endregion
}
}
Back to top
