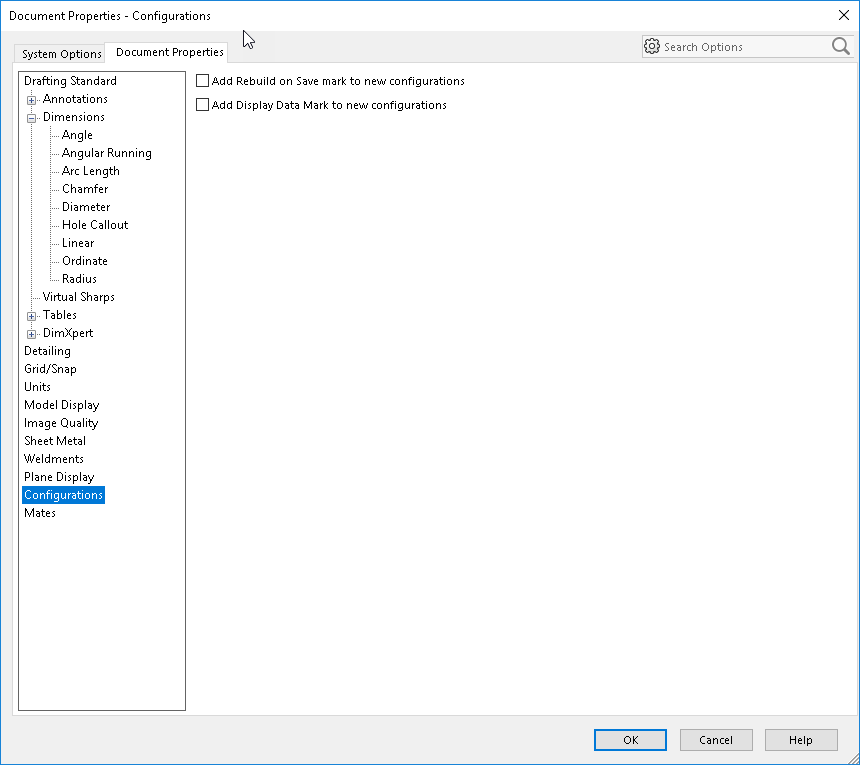

Document Properties > Configurations



Setting

Get/Set Methods

Return Value or <Value>

Comments

Add Rebuild/Save mark to new configurations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swRebuildSaveNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swRebuildSaveNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to apply the Rebuild/Save mark to new configurations.

Add Display Data Mark to new configurations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDataMarkNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDataMarkNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value
