Customizable General Tolerances for DimXpert

You can view the general tolerance file used in DimXpert and TolAnalyst and customize it to conform to your specific design requirements.

To specify the folder for DimXpert general tolerance file, click Tools > Options > System Options > File Locations. Under Show folder for, select DimXpert General Tolerance File and click OK.

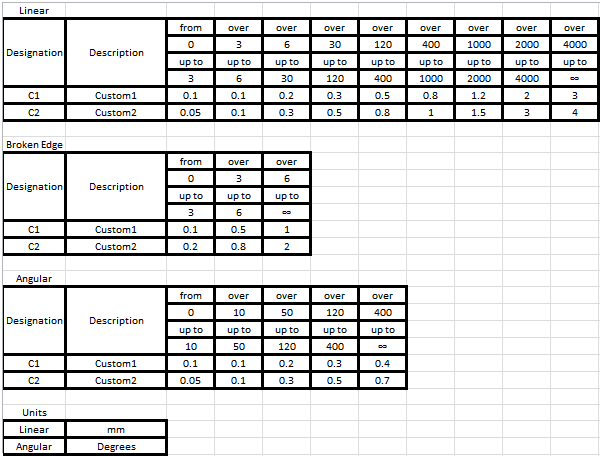

Default general tolerance file:
