A
decal
is a 2D image applied to a model. You can use decals to apply warning or instruction labels
to models. You can use decals to create model details that you can represent with an image
instead of with the model geometry, such as a car grill or a picture frame.
You can view and apply decals in SOLIDWORKS. You can view decals in eDrawings and PhotoView 360.
 |

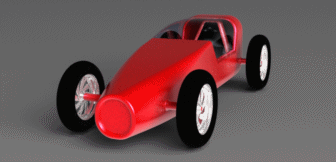

| Model of car |
 |

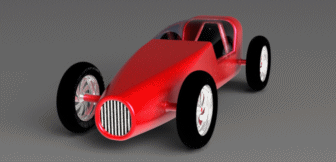

| Model of car with decal
applied to represent the grill |
By default, decals use an illumination scheme that is distinct from the
scheme for the appearance under the decal. To use the appearance illumination scheme, in
the Decals PropertyManager, on the Illumination tab, select Use
Underlying Appearance.
