You can search for a value in multiple selected variables using the
Edit-box control in a search card.
In the File
Explorer, when you search for a value, SOLIDWORKS PDM considers OR as the
implicit operator, and returns a match if it exists in any variable value.
To specify a multiple-variable edit-box control on
the search card:
In the
Card Editor, click
Edit (Controls toolbar), and click in the card
to place the edit box.

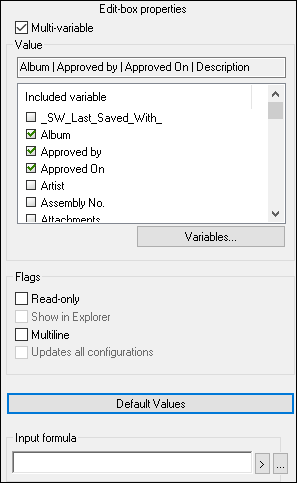

Multi-variable |
Lets you select multiple variables from the existing
variables defined in the vault. When you select
the variables, the edit box displays the variables separated by
| in alphanumeric
order.
|
Default Values |
Lets you define the variable values.By default, SOLIDWORKS PDM considers the OR condition for the
default values. The values can be the same or unique. At run time, when you edit default values
with Multi-variable selected, the
default values in the single variable edit box (for example,
in the Cards tab) are not updated
automatically.
|
