Graph a Workflow Example (C#)
This example shows how to graph a workflow.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
// a. Click File > New > Project > Visual
C# > Windows Forms Application.
// b. Type PaintWorkflowGraph_CSharp in Name.
// c. Click Browse and navigate to the folder where to create
// the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form,
replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and click
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
// click Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1. Displays the Graph

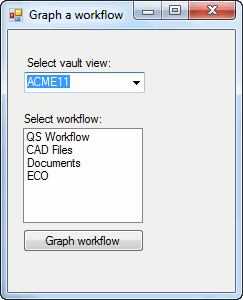

a workflow dialog box.
// 2. Maximize the dialog box for the workflow graph.
// 3. Select a vault view.
// 4. Click a workflow.
// 5. Click Graph
workflow.
//
6. Graphs the selected workflow in the dialog box.
// 7. Close the Graph
a workflow dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;
namespace PaintWorkflowGraph_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
IEdmVault5 vault1 = null;
IEdmWorkflow6 wf;
IEdmWorkflowMgr6 wfmgr;
IEdmPos5 pos;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void GraphWorkflow_Click(System.Object sender, System.EventArgs e)
{
//Graph workflow
try
{
IEdmVault7 vault2 = default(IEdmVault7);
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Retrieve the graphics interface of this window
System.Drawing.Graphics gfx = default(System.Drawing.Graphics);
gfx = this.CreateGraphics();
gfx.Clear(Color.AliceBlue);
//Create font with which to draw text
System.Drawing.Font font = default(System.Drawing.Font);
font = new System.Drawing.Font("Arial", 10, FontStyle.Bold);
//Loop over all the workflows to find the selected workflow
pos = wfmgr.GetFirstWorkflowPosition();
while (!pos.IsNull)
{
wf = wfmgr.GetNextWorkflow(pos);
if ((wf.Name == ListBox1.SelectedItem.ToString()))
{
//Loop over all workflow transitions
pos = default(IEdmPos5);
pos = wf.GetFirstTransitionPosition();
while (!pos.IsNull)
{
IEdmTransition7 trans = default(IEdmTransition7);
trans = (IEdmTransition7)wf.GetNextTransition(pos);
//Draw the arrow of the transition
EdmPoint[] vertices = null;
vertices = null;
trans.GetArrowVertices(out vertices);
PaintArrow(gfx, vertices);
//Get the transition box
EdmRect transRect = default(EdmRect);
trans.GetRect(out transRect);
System.Drawing.RectangleF rectF = default(System.Drawing.RectangleF);
rectF.X = transRect.mlLeft;
rectF.Y = transRect.mlTop;
rectF.Width = transRect.mlRight - transRect.mlLeft;
rectF.Height = transRect.mlBottom - transRect.mlTop;
//Draw the transition box
gfx.FillRectangle(Brushes.LightYellow, rectF);
gfx.DrawRectangle(Pens.Black, rectF.X, rectF.Y, rectF.Width, rectF.Height);
gfx.DrawString(trans.Name, font, Brushes.Black, rectF);
}
//Loop over all workflow states
pos = wf.GetFirstStatePosition();
while (!pos.IsNull)
{
IEdmState7 state = default(IEdmState7);
state = (IEdmState7)wf.GetNextState(pos);
//Get the state box
EdmRect stateRect = default(EdmRect);
state.GetRect(out stateRect);
System.Drawing.RectangleF rectF = default(System.Drawing.RectangleF);
rectF.X = stateRect.mlLeft;
rectF.Y = stateRect.mlTop;
rectF.Width = stateRect.mlRight - stateRect.mlLeft;
rectF.Height = stateRect.mlBottom - stateRect.mlTop;
//Draw the state box
gfx.FillRectangle(Brushes.Azure, rectF);
gfx.DrawRectangle(Pens.Black, rectF.X, rectF.Y, rectF.Width, rectF.Height);
gfx.DrawString(state.Name, font, Brushes.Black, rectF);
}
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
//Draw the arrow of a transition
private void PaintArrow(System.Drawing.Graphics gfx, EdmPoint[] vertices)
{
try
{
System.Drawing.PointF[] points = new System.Drawing.PointF[Information.UBound(vertices) + 1];
int i = 0;
i = Information.LBound(vertices);
while (i <= Information.UBound(vertices))
{
points[i].X = vertices[i].mlX;
points[i].Y = vertices[i].mlY;
i = i + 1;
}
//Draw the arrow lines
gfx.DrawLines(Pens.DarkRed, points);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void VaultsComboBox_SelectedIndexChanged(object sender, EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
ListBox1.Items.Clear();
wfmgr = (IEdmWorkflowMgr6)vault.CreateUtility(EdmUtility.EdmUtil_WorkflowMgr);
pos = wfmgr.GetFirstWorkflowPosition();
while (!pos.IsNull)
{
wf = wfmgr.GetNextWorkflow(pos);
ListBox1.Items.Add(wf.Name);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
