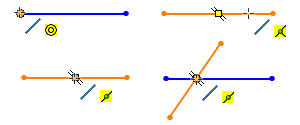

The pointer changes shape in SOLIDWORKS to show the type of object it sees; for example, a vertex, an edge, or a face. In sketches, the pointer shows relations such as endpoints, midpoints, intersections, and types of entities such as lines, rectangles, and circles.
Relations:
|
|
Endpoint, Coincident
Midpoint, Intersection
|
 |
Entities and tools:
|
|
Rectangle, Circle, Spline
Point, Trim, Extend, Dimension
|
   |
    |
