Navigating Through Objects
Features of this example animation:
- The camera sled is a model of a spaceship that includes a line (hidden) and a point.
-
The Camera Position and the Target Point are attached to the end point of the line and a point, respectively.
- The Field of View includes the space ship as part of the animation.
-
Set roll by selection is selected, and the sketched plane is used to control Camera Rotation.
- The defined path has the spaceship navigate around the spheres and through the open squares, using motion along all three axes.
Video: Navigating Through Objects
Moving Through Enclosed Space
Features of this example animation:

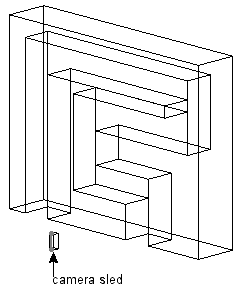

- Camera Position and Target Point are attached to the camera sled.
- Set roll by selection is selected and the top face of the camera sled is used to control Camera Rotation.
-
The Field of View is adjusted to include an area slightly larger than the size of the cut to display all four "walls" during the animation.
- The camera sled is hidden prior to playback.
- The path follows the outlines of the cut-extrude, which is hidden to create an enclosed space.
Video: Moving Through an Enclosed Space
