Displaying the BOM Assembly Structure

You can expand a BOM to view the assembly structure. For models with balloons, the assembly structure column is preceded by a per-component listing of balloons.

  1. Open a BOM.
  2. Click the side expansion arrows at the left side of the BOM to display the assembly structure.

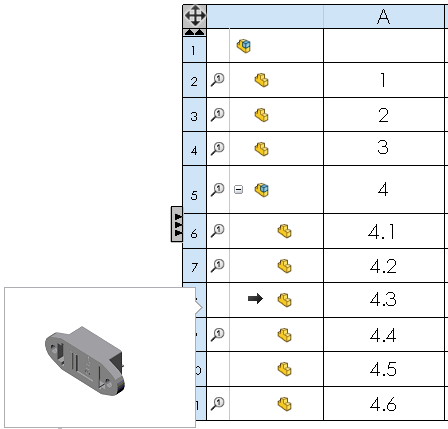

    The expanded BOM displays the assembly structure and indicates components that have balloons.
