Saving a File with Options in MySession

You can select options to save a file that include adding a bookmark, creating a new revision, or converting part geometry for use with 3DEXPERIENCE modeling and simulation apps.

To save a file with options in MySession:

  1. Do one of the following:

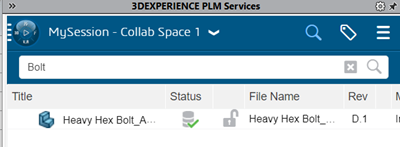

    • Right-click the model and click Save.

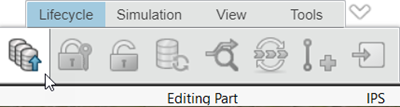

    • Open the action bar at the bottom of MySession and click Lifecycle > Save.
    The action bar is minimized at the bottom of MySession.

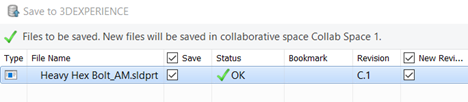

  2. In the Save to 3DEXPERIENCE dialog box, select options, such as:
    • New Revision

      Increments the revision ID to the file.

    • Bookmark

      Lets you add a bookmark to the file using the Bookmark Editor app.

    • Release lock after Save

      Lets another user lock the model after you release the model.



  3. Click Save.

MySession unlocks the model and updates the revision.

For details, see Save Dialog Box in Dassault Systèmes User Assistance. Access to Dassault Systèmes User Assistance requires 3DEXPERIENCE credentials.
