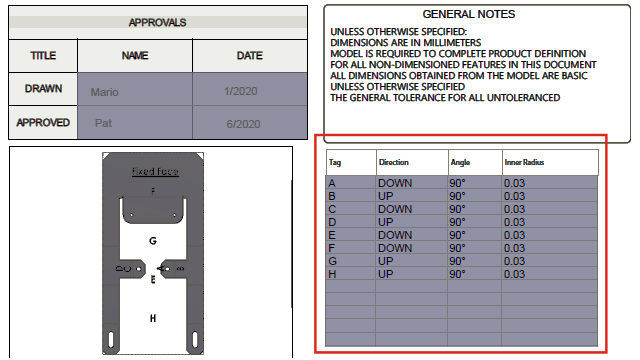

For sheet metal
parts, you can include a bend table when you publish a 3D
PDF.
First, edit a
template and insert a placeholder for a bend table.
- In the 3D PDF Template
Editor, click Bend Table
, and then click in the
template to insert the table placeholder. You can drag and resize the
placeholder.
- Click outside of the placeholder to release it.
Then use that template when publishing a 3D PDF for a sheet metal part that has a
bend table.
- Click Publish to 3D PDF
(MBD toolbar or 3D Views
tab).
- In the Template Selection
dialog box, select the template and click OK.
- In the Publish to 3D PDF
PropertyManager, under Bend Table, select
a bend table and columns to include.
