Destroy Deleted Files in Vault Example (VB.NET)

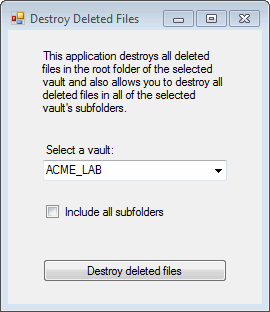

This example shows how to create an application that displays a form in which
a user can select the vault in whose root
folder and subfolders all deleted files will be permanently destroyed. The user must have permission to delete
files.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
IMPORTANT: Do not recreate and run this
example if you do not want to destroy all deleted files in the root folder and
subfolders in the selected vault. Instead, SOLIDWORKS PDM Professional suggests
that you review the code to understand how you can programmatically destroy
deleted files in the root folder and subfolders of a vault.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' 2. Click
File > New > Project > Visual Basic > Windows Forms Application.
' 3. Type the name of your project in Name.
' 4. Click the
Browse button and browse to the folder where to create the project.
'
5. Click OK.
' 6. Create a form similar to the form shown above
and change:
'
a. Second label to VaultsLabel.
' b. Combo box to
VaultsComboBox.
' c. Check box to CheckBox_Recursive.
'
d.
Button to DestroyDeletedItemsButton.
' 7. Replace the code in Form1.vb with
this
code.
' 8. Replace the code in Form1.Designer.vb with
this code.
' 9.
Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add
Reference, click
' Framework in the left-side panel, browse to the
top folder of your
' SOLIDWORKS PDM Professional installation, locate and
click
' EPDM.Interop.epdm.dll, click Open, click
Add, and click Close).
' 10. Right-click EPDM.Interop.epdm in References, click Properties,
and set
' Embed Interop Types to False to
handle methods that pass arrays of
' structures.
' 11. Switch back to
Form1.vb code window.
' 12. Click
Debug > Start Debugging or press F5.
'
' Postconditions:
' 1. Displays the Destroy Deleted Files dialog.
' 2. Select a vault.
' 3. Optionally select the Include all subfolders check box.
' 4. Click the Destroy deleted files button.
' A message box pops up informing you that:
' * No deleted files were found to destroy.
' - or -
' * The deleted files were destroyed.
' 5. Click OK in the message box.
' 6. Close the Destroy Deleted Files dialog.
'----------------------------------------------------------------------------
'Form1.vb
Imports EPDM.Interop.epdm
Public Class DestroyDeletedItems
Private Sub DestroyDeleteItems_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
'Declare and create an instance of IEdmVault5
'Cast IEdmVault5 to IEdmVault8
Dim vault As IEdmVault8 = New EdmVault5
Dim Views() As EdmViewInfo = Nothing
'Populate the form with the names of
'the vaults on the computer
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = VaultsComboBox.Items(0)
End If
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + vbCrLf + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub DestroyDeletedItemsButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles DestroyDeletedItemsButton.Click
Try
'Declare and create an instance of IEdmVault5
Dim vault As IEdmVault5 = New EdmVault5()
'Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
'Check to see if deleted files should be
'destroyed in all subfolders
Dim aRecursive As Boolean = False
If CheckBox_Recursive.Checked Then
aRecursive = True
End If
'Get the current time to pass to IEdmFolder7::DestroyDeletedItems
Dim CurrentTime As Date
CurrentTime = Now
Dim Recursive As Boolean = False
Dim ppoDestroyedItems() As EdmFileInfo = Nothing
Dim paErrors() As EdmBatchDelErrInfo = Nothing
Dim DeletedFolder As IEdmFolder7
'Get the root folder of the vault
DeletedFolder = vault.RootFolder
DeletedFolder.DestroyDeletedItems(aRecursive, CurrentTime, ppoDestroyedItems, paErrors)
'Destroy all deleted files in the root folder and
'subfolders, if the check box is selected on the form
Dim idx As Integer
idx = LBound(ppoDestroyedItems)
Dim msg As String = Nothing
'If any deleted files found, display their names in a message box
While idx <= UBound(ppoDestroyedItems)
Dim row As String
row = "DocumentID: " + CStr(ppoDestroyedItems(idx).mlFileID) + ", FolderID: " + _
CStr(ppoDestroyedItems(idx).mlFolderID) + ", File path: " + ppoDestroyedItems(idx).mbsPath + vbCrLf
If ppoDestroyedItems(idx).mhResult = 0 Then
row = row + "Status: OK" + vbCrLf
Else
row = row + " status: Failed=" + "HRESULT = 0x" + CStr(paErrors(idx).mlErrorCode)
End If
idx = idx + 1
msg = msg + row + vbCrLf
End While
If msg Is Nothing Then
MessageBox.Show("No deleted files were found in the selected vault's
root folder or subfolders.")
Else
MessageBox.Show("The status for each destroyed file is: " + vbCrLf + vbCrLf + msg)
End If
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + vbCrLf + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub Label1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)
End Sub
Private Sub VaultsLabel_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)
End Sub
Private Sub CheckBox_Recursive_CheckedChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles CheckBox_Recursive.CheckedChanged
End Sub
End Class
Back
to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class DestroyDeletedItems
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.CheckBox_Recursive = New System.Windows.Forms.CheckBox()
Me.DestroyDeletedItemsButton = New System.Windows.Forms.Button()
Me.Label1 = New System.Windows.Forms.Label()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.SuspendLayout()
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(69, 133)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(139, 21)
Me.VaultsComboBox.TabIndex = 1
'
'CheckBox_Recursive
'
Me.CheckBox_Recursive.AutoSize = True
Me.CheckBox_Recursive.Location = New System.Drawing.Point(69, 181)
Me.CheckBox_Recursive.Name = "CheckBox_Recursive"
Me.CheckBox_Recursive.Size = New System.Drawing.Size(125, 17)
Me.CheckBox_Recursive.TabIndex = 3
Me.CheckBox_Recursive.Text = "Include all subfolders"
Me.CheckBox_Recursive.UseVisualStyleBackColor = True
'
'DestroyDeletedItemsButton
'
Me.DestroyDeletedItemsButton.Location = New System.Drawing.Point(69, 218)
Me.DestroyDeletedItemsButton.Name = "DestroyDeletedItemsButton"
Me.DestroyDeletedItemsButton.Size = New System.Drawing.Size(139, 23)
Me.DestroyDeletedItemsButton.TabIndex = 4
Me.DestroyDeletedItemsButton.Text = "Destroy deleted files"
Me.DestroyDeletedItemsButton.UseVisualStyleBackColor = True
'
'Label1
'
Me.Label1.Location = New System.Drawing.Point(66, 20)
Me.Label1.Name = "Label1"
Me.Label1.Size = New System.Drawing.Size(171, 68)
Me.Label1.TabIndex = 5
Me.Label1.Text = "This application destroys all deleted files in the root folder of the selected va" & _
"ult and also allows you to destroy all deleted files in all of the selected vaul" & _
"t's subfolders."
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(66, 108)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(75, 13)
Me.VaultsLabel.TabIndex = 6
Me.VaultsLabel.Text = "Select a vault:"
'
'DestroyDeletedItems
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(284, 262)
Me.Controls.Add(Me.VaultsLabel)
Me.Controls.Add(Me.Label1)
Me.Controls.Add(Me.DestroyDeletedItemsButton)
Me.Controls.Add(Me.CheckBox_Recursive)
Me.Controls.Add(Me.VaultsComboBox)
Me.Name = "DestroyDeletedItems"
Me.Text = "Destroy Deleted Files"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents CheckBox_Recursive As System.Windows.Forms.CheckBox
Friend WithEvents DestroyDeletedItemsButton As System.Windows.Forms.Button
Friend WithEvents Label1 As System.Windows.Forms.Label
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
End Class
