Favorite Search Example (C#)
This example shows how to perform a favorite search.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// 2. Click File > New > Project > Visual C# > Windows Forms Application.
// 3. Type FavoriteSearch_CSharp in Name.
// 4. Click Browse to navigate to the folder where to create the project.
// 5. Click OK.
// 6. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// 7. Replace the code in Form1.cs with this code.
// 8. To create the form, replace the code in Form1.Designer.cs with this code.
// 9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assembly > Framework in the left-side panel, browse to the top folder of your
// SOLIDWORKS PDM Professional installation, locate and select
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 10. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 11. Ensure that you know the name of a saved favorite search, and that search
// finds at least one vault file whose extension (e.g., sldprt)
// has a file data card (e.g. Quick Start Data Card) with a Description field.
// 12. Check out the vault file and add a description. Check it back in.
// 13. Use the Admin Tool to create a new column set for complete search results.
// (Right-click on Admin Tool > vault_name > Columns > Search Result Columns and select New Column Set.
// 14. Click Add and select Description from the Variable dropdown
// 15. Save the new column set with name, MyFavoriteSearchResults.
// 16. Double-click Admin Tool > vault_name > Cards > Search Cards > Complete Search.
// 17. In the Card Properties panel, select the View and Preferred checkboxes next to MyFavoriteSearchResults.
// 18. Save and close the Card Editor dialog.
// 19. Click Debug > Start Debugging or press F5.
//
// Postconditions:

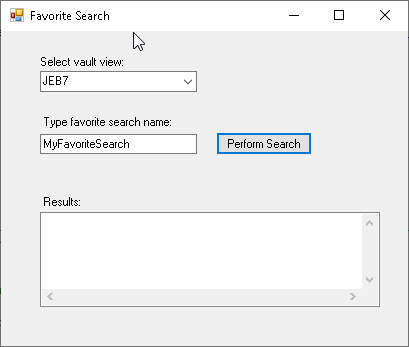

// 1. Displays a dialog.
// 2. Select a vault.
// 3. Type in a favorite search name.
// 4. Click Perform Search.
// 5. Displays search results, including the custom search column, Description.
// 6. Close the dialog.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace FavoriteSearch_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void PerformSearch_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault9 vault2 =
null;
if (vault1 ==
null)
vault1 =
new
EdmVault5();
vault2 = (IEdmVault9)vault1;
if (!vault1.IsLoggedIn)
vault1.LoginAuto(VaultsComboBox.Text,
this.Handle.ToInt32());
IEdmSearch10 oSearch = (IEdmSearch10)vault1.CreateSearch();
IEdmSearchResult6 oSearchResult =
(IEdmSearchResult6)oSearch.GetFirstFavoriteResult(TextBox1.Text,
true);
// get custom search result columns, if present
do
{
// oSearchResult will have default values like path or ID, even if custom
columns do not exist
ListBox1.Items.Add("ID:
" + oSearchResult.ID);
ListBox1.Items.Add("Name:
" + oSearchResult.Name);
ListBox1.Items.Add("Path:
" + oSearchResult.Path);
ListBox1.Items.Add("Version:
" + oSearchResult.Version);
EdmListCol[] oColsInfo =
null;
string[]
oStrValues =
null;
oSearchResult.GetCustomColumnsInfo(out oColsInfo);
oSearchResult.GetCustomColumnValues(out oStrValues);
if
(oColsInfo !=
null)
{
for
(int
i = 0; i <= oColsInfo.Length - 1; i++)
ListBox1.Items.Add(oColsInfo[i].mbsCaption +
": "
+ oStrValues[i]);
}
oSearchResult = (IEdmSearchResult6)oSearch.GetNextResult();
}
while (oSearchResult !=
null);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
namespace
FavoriteSearch_CSharp
{
partial
class
Form1
{
///
<summary>
///
Required designer variable.
///
</summary>
private
System.ComponentModel.IContainer components =
null;
///
<summary>
/// Clean up any resources being
used.
///
</summary>
///
<param name="disposing">true
if managed resources should be disposed; otherwise, false.</param>
protected
override
void
Dispose(bool
disposing)
{
if (disposing && (components !=
null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer
generated code
///
<summary>
/// Required method for Designer
support - do not modify
/// the contents of this method
with the code editor.
///
</summary>
private
void InitializeComponent()
{
this.VaultsLabel =
new
System.Windows.Forms.Label();
this.VaultsComboBox =
new
System.Windows.Forms.ComboBox();
this.PerformSearch =
new
System.Windows.Forms.Button();
this.TextBox1 =
new
System.Windows.Forms.TextBox();
this.Label1 =
new
System.Windows.Forms.Label();
this.Label2 =
new
System.Windows.Forms.Label();
this.ListBox1 =
new
System.Windows.Forms.ListBox();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.AutoSize =
true;
this.VaultsLabel.Location =
new
System.Drawing.Point(36, 24);
this.VaultsLabel.Name =
"VaultsLabel";
this.VaultsLabel.Size =
new
System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text =
"Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled
=
true;
this.VaultsComboBox.Location =
new
System.Drawing.Point(39, 40);
this.VaultsComboBox.Name =
"VaultsComboBox";
this.VaultsComboBox.Size =
new
System.Drawing.Size(157, 21);
this.VaultsComboBox.TabIndex = 1;
//
// PerformSearch
//
this.PerformSearch.Location =
new
System.Drawing.Point(215, 101);
this.PerformSearch.Name =
"PerformSearch";
this.PerformSearch.Size =
new
System.Drawing.Size(96, 23);
this.PerformSearch.TabIndex = 6;
this.PerformSearch.Text =
"Perform Search";
this.PerformSearch.UseVisualStyleBackColor
=
true;
this.PerformSearch.Click +=
new
System.EventHandler(this.PerformSearch_Click);
//
// TextBox1
//
this.TextBox1.Location =
new
System.Drawing.Point(39, 103);
this.TextBox1.Name =
"TextBox1";
this.TextBox1.Size =
new
System.Drawing.Size(157, 20);
this.TextBox1.TabIndex = 7;
//
// Label1
//
this.Label1.AutoSize =
true;
this.Label1.Location =
new
System.Drawing.Point(39, 84);
this.Label1.Name =
"Label1";
this.Label1.Size =
new
System.Drawing.Size(136, 13);
this.Label1.TabIndex = 8;
this.Label1.Text =
"Type favorite search name:";
//
// Label2
//
this.Label2.AutoSize =
true;
this.Label2.Location =
new
System.Drawing.Point(39, 164);
this.Label2.Name =
"Label2";
this.Label2.Size =
new
System.Drawing.Size(45, 13);
this.Label2.TabIndex = 10;
this.Label2.Text =
"Results:";
//
// ListBox1
//
this.ListBox1.FormattingEnabled =
true;
this.ListBox1.HorizontalScrollbar =
true;
this.ListBox1.Location =
new
System.Drawing.Point(39, 181);
this.ListBox1.Name =
"ListBox1";
this.ListBox1.ScrollAlwaysVisible =
true;
this.ListBox1.Size =
new
System.Drawing.Size(340, 264);
this.ListBox1.TabIndex = 11;
//
// Form1
//
this.AutoScaleDimensions =
new
System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode =
System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize =
new
System.Drawing.Size(407, 472);
this.Controls.Add(this.ListBox1);
this.Controls.Add(this.Label2);
this.Controls.Add(this.Label1);
this.Controls.Add(this.TextBox1);
this.Controls.Add(this.PerformSearch);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name =
"Form1";
this.Text =
"Favorite Search";
this.Load +=
new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal
System.Windows.Forms.Label VaultsLabel;
internal
System.Windows.Forms.ComboBox VaultsComboBox;
internal
System.Windows.Forms.Button PerformSearch;
internal
System.Windows.Forms.TextBox TextBox1;
internal
System.Windows.Forms.Label Label1;
internal
System.Windows.Forms.Label Label2;
internal
System.Windows.Forms.ListBox ListBox1;
#endregion
}
}
