Access Bill of Materials Example (C#)
This example shows how to access the Bill of
Materials (BOM) of a file in the vault.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type EdmBOM_CSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder
// of your SOLIDWORKS PDM Professional installation, locate and
click
// EPDM.Interop.epdm.dll, click Open, and click
Add).
// 4. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 5. Ensure that the vault contains the BOM layout.
// To inspect the
existing layouts:
// a. Open the SOLIDWORKS PDM Professional
Administration tool.
// b. Log into vault_name.
// c. Expand vault_name
> Bills of Materials.
// d. Verify that layout, BOM, exists.
// 6. Ensure that an assembly and its parts exist in the root folder of the
// vault in default configuration, @.
// 7. Ensure that one or more named Bills of Materials exist for the assembly.
// a. Open File Explorer on a vault_name view.
// b. Click the assembly.
// c. Click the Bill of Materials
tab.
// d. Click BOM.
// e. If a named Bill of Materials does not exist in the BOM
list:
// 1. Click Save > Save As in
the tab toolbar.
// 2. In the Save As dialog, click
Save.
// 8. Click Debug > Start Debugging or press F5.
//
// Postconditions:

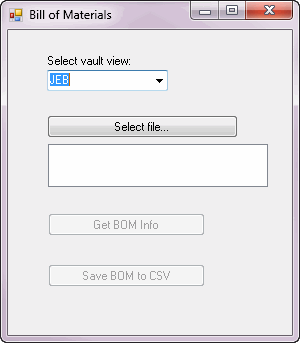

// 1. Opens the Bill of Materials dialog box.
// a. Select a vault_name view.
// b. Click Select file.
// c. In the Select File dialog:
// 1. Click the assembly specified in
Preconditions step 6.
// 2. Click Open.
// d. Click Get BOM Info.
// Displays message boxes containing:
// * Information about all named BOMs of the
assembly.
// * Version information for the named BOMs.
// * Information about all BOM layouts in
the vault.
// * Row and column information about a BOM
view in the BOM layout
// for the selected assembly in
its @ configuration.
// e. Click OK in each message box.
// f. Click Save BOM
to CSV.
// Saves the BOM to c:\temp\SavedBOM.csv.
// 2. Close the Bill of Materials dialog box.
// 3. Verify that c:\temp\SavedBOM.csv
is created.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;
using System.IO;
using System.Xml.Serialization;
using System.Windows.Forms;
using System.ComponentModel;
using EPDM.Interop.epdm;
namespace EdmBOM_CSharp
{
public partial class Form1 : Form
{
private IEdmVault5 vault1 = null;
IEdmFile7 aFile;
IEdmBom bom;
IEdmBomMgr2 bomMgr;
IEdmBomView3 bomView;
public Form1()
{
InitializeComponent();
}
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SelectFiles_Click(System.Object sender, System.EventArgs e)
{
try
{
File1List.Items.Clear();
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Set the initial directory in the Select File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select File dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
// do nothing
}
else
{
IEdmFolder5 ppoRetParentFolder;
foreach (string FileName in OpenFileDialog1.FileNames)
{
File1List.Items.Add(FileName);
aFile = (IEdmFile7)vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
}
}
GetBOM.Enabled = true;
SaveBOM.Enabled = false;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void GetBOM_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault11 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault11)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
if (aFile != null)
{
// Get named BOMs and their versions for the selected file
EdmBomInfo[] derivedBOMs = null;
aFile.GetDerivedBOMs(out derivedBOMs);
int arrSize = 0;
EdmBomVersion[] ppoVersions = null;
int i = 0;
int j = 0;
int id = 0;
string str = "";
string verstr = "";
int verArrSize = 0;
arrSize = derivedBOMs.Length;
int userID
= 0;
bool canSeeLayout = false;
userID = vault2.GetLoggedInWindowsUserID(vault2.Name);
while (i < arrSize)
{
id = derivedBOMs[i].mlBomID;
bom = (IEdmBom)vault2.GetObject(EdmObjectType.EdmObject_BOM, id);
str = "Named BOM: " + derivedBOMs[i].mbsBomName + "\r\n" + "Type
of BOM as defined in EdmBomType: " + derivedBOMs[i].meType
+ "\\n"
+ "Check-out user: " + bom.CheckOutUserID + "\r\n" + "Current state: " + bom.CurrentState.Name + "\r\n" + "Current version: " + bom.CurrentVersion + "\r\n" + "ID: " + bom.FileID + "\r\n" + "Is checked out: " + bom.IsCheckedOut;
MessageBox.Show(str);
bom.GetVersions(out ppoVersions);
verArrSize = ppoVersions.Length;
while (j < verArrSize)
{
verstr = "BOM version: " + "\r\n" + "Type as defined in EdmBomVersionType: " + ppoVersions[j].meType + "\r\n" + "Version number: " + ppoVersions[j].mlVersion + "\r\n" + "Date: " + ppoVersions[j].moDate + "\r\n" + "Label: " + ppoVersions[j].mbsTag + "\r\n" + "Comment: " + ppoVersions[j].mbsComment;
MessageBox.Show(verstr);
j = j + 1;
}
i = i + 1;
}
// Get a BOM view with the specified layout
bomMgr = (IEdmBomMgr2)vault2.CreateUtility(EdmUtility.EdmUtil_BomMgr);
EdmBomLayout2[] ppoRetLayouts = null;
EdmBomLayout2 ppoRetLayout = default(EdmBomLayout2);
bomMgr.GetBomLayouts2(out ppoRetLayouts);
i = 0;
arrSize = ppoRetLayouts.Length;
str = "";
while (i < arrSize)
{
ppoRetLayout = ppoRetLayouts[i];
canSeeLayout = bomMgr.CanSeeBomLayout(userID, ppoRetLayout.mlLayoutID);
str = "BOM Layout " + i + ": " + ppoRetLayout.mbsLayoutName + "\r\n" + "ID: " + ppoRetLayout.mlLayoutID;
str = str + " Logged-in user can see this
layout? " + canSeeLayout;
if (ppoRetLayout.mbsLayoutName == "BOM")
{
bomView = (IEdmBomView3)aFile.GetComputedBOM(ppoRetLayout.mbsLayoutName, 0, "@", (int)EdmBomFlag.EdmBf_AsBuilt + (int)EdmBomFlag.EdmBf_ShowSelected);
}
MessageBox.Show(str);
i = i + 1;
}
// Display BOM view
row and column information
object[] ppoRows = null;
IEdmBomCell ppoRow = default(IEdmBomCell);
bomView.GetRows(out ppoRows);
i = 0;
arrSize = ppoRows.Length;
str = "";
while (i < arrSize)
{
ppoRow = (IEdmBomCell)ppoRows[i];
str = "BOM Row " + i + ": " + "\r\n" + "Item ID: " + ppoRow.GetItemID() + "\r\n" + "Path name: " + ppoRow.GetPathName() + "\r\n" + "Tree level: " + ppoRow.GetTreeLevel() + "\r\n" + " Is locked? " + ppoRow.IsLocked();
MessageBox.Show(str);
i = i + 1;
}
EdmBomColumn[] ppoColumns = null;
bomView.GetColumns(out ppoColumns);
i = 0;
arrSize = ppoColumns.Length;
str = "";
while (i < arrSize)
{
str = "BOM Column " + i + ": " + "\r\n" + "Header: " + ppoColumns[i].mbsCaption + "\r\n" + "Column type as defined in EdmBomColumnType: " + ppoColumns[i].meType + "\r\n" + "ID: " + ppoColumns[i].mlColumnID + "\r\n" + "Flags: " + ppoColumns[i].mlFlags + "\r\n" + "Variable ID: " + ppoColumns[i].mlVariableID + "\r\n" + "Variable type as defined in EdmVariableType: " + ppoColumns[i].mlVariableType + "\r\n" + "Column width: " + ppoColumns[i].mlWidth;
MessageBox.Show(str);
i = i + 1;
}
SaveBOM.Enabled = true;
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SaveBOM_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault9)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
if ((aFile != null) & (bomView != null))
{
bomView.SaveToCSV("c:\\temp\\SavedBOM.csv", false);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
Back to top
//Form1.Designer.cs
namespace EdmBOM_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.SelectFiles = new System.Windows.Forms.Button();
this.File1List = new System.Windows.Forms.ListBox();
this.GetBOM = new System.Windows.Forms.Button();
this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
this.SaveBOM = new System.Windows.Forms.Button();
this.SuspendLayout();
//
// VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
// SelectFiles
//
this.SelectFiles.Location = new System.Drawing.Point(39, 85);
this.SelectFiles.Name = "SelectFiles";
this.SelectFiles.Size = new System.Drawing.Size(191, 23);
this.SelectFiles.TabIndex = 2;
this.SelectFiles.Text = "Select file...";
this.SelectFiles.UseVisualStyleBackColor = true;
this.SelectFiles.Click += new System.EventHandler(this.SelectFiles_Click);
//
// File1List
//
this.File1List.FormattingEnabled = true;
this.File1List.HorizontalScrollbar = true;
this.File1List.Location = new System.Drawing.Point(40, 114);
this.File1List.Name = "File1List";
this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
this.File1List.Size = new System.Drawing.Size(220, 43);
this.File1List.TabIndex = 4;
//
// GetBOM
//
this.GetBOM.Location = new System.Drawing.Point(40, 183);
this.GetBOM.Name = "GetBOM";
this.GetBOM.Size = new System.Drawing.Size(157, 23);
this.GetBOM.TabIndex = 6;
this.GetBOM.Text = "Get BOM";
this.GetBOM.UseVisualStyleBackColor = true;
this.GetBOM.Enabled = false;
this.GetBOM.Click += new System.EventHandler(this.GetBOM_Click);
//
// OpenFileDialog1
//
this.OpenFileDialog1.FileName = "OpenFileDialog1";
this.OpenFileDialog1.Title = "Select File";
//
// SaveBOM
//
this.SaveBOM.Location = new System.Drawing.Point(40, 252);
this.SaveBOM.Name = "SaveBOM";
this.SaveBOM.Size = new System.Drawing.Size(157, 23);
this.SaveBOM.TabIndex = 7;
this.SaveBOM.Text = "Save BOM to CSV";
this.SaveBOM.UseVisualStyleBackColor = true;
this.SaveBOM.Enabled = false;
this.SaveBOM.Click += new System.EventHandler(this.SaveBOM_Click);
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 363);
this.Controls.Add(this.SaveBOM);
this.Controls.Add(this.GetBOM);
this.Controls.Add(this.File1List);
this.Controls.Add(this.SelectFiles);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Bill of Materials";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button SelectFiles;
internal System.Windows.Forms.ListBox File1List;
internal System.Windows.Forms.Button GetBOM;
internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
#endregion
private System.Windows.Forms.Button SaveBOM;
}
}
Back to top
