3D Interconnect to Import Third-Party Native CAD Files Example (C#)

This example demonstrates how to use the 3D Interconnect API to import and access third-party non-native CAD data.

//---------------------------------------------------------------------------
// Preconditions:
// 1. Ensure Tools > Options > System Options > Enable VSTA VERSION 3.0 is
//    selected.
// 2. Open a new C# macro in SOLIDWORKS. Save it with project name
//    Interconnect to a convenient location on your machine.
// 3. Add references, SolidWorks.interop.sldworks and
//    SolidWorks.Interop.swconst.
// 4. Open SolidWorksMacro.cs.
// 5. Replace everything in SolidWorksMacro.cs with this code.
// 6. Right-click the Interconnect project in Solution Explorer and select
// Add > Windows Form.
// 7. Save the form with name, InterConnectingApp.cs.
// 8. Open InterConnectingApp.Designer.cs and replace everything in it
//    with this code.
// 9. Open the InterConnectingApp.cs form. Right-click on the design
//    and select View Code.
// 10. Replace everything in InterConnectingApp.cs with this code.
// 11. Compile and save the project.
//
// Postconditions:

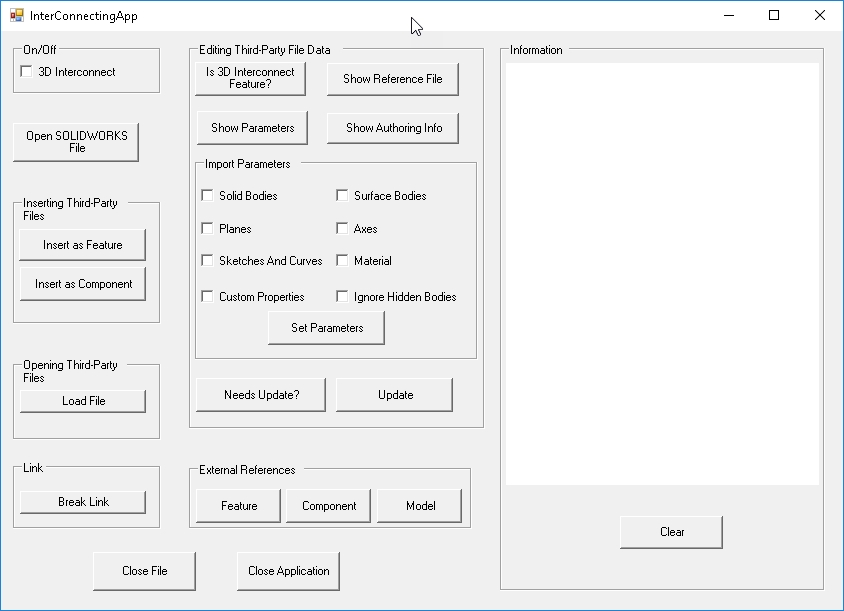

// 1. Opens the InterConnectingApp dialog.
// 2. Select 3D Interconnect checkbox to enable 3D Interconnect.
// 3. Click one of:
//   a. Load File
//    b. Open SOLIDWORKS File
// 4. If you clicked 3b, then click one of:
//    a. Insert as Feature (if you opened a part)
//    b. Insert as Component (if you opened an assembly)
// 5. Select the third-party non-native CAD file to insert. Click OK.
// 6. Select the top-level imported item in the FeatureManager design tree.
// 7. Exercise the buttons in the Editing Third-Party File Data group box.
//    Observe the Information text box. Click Clear to refresh it.
// 8. Click Break Link to break the link between the imported
// feature/component and its original file.
// 9. Click Feature, Component, or Model to list all external references.
// 10. Click Close File to close the current files.
// 11. Click Close Application to close the InterConnectingApp dialog.
//
// -------------------------------------------------------------------------

//SolidWorksMacro.cs:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using System.Windows;

using System.Windows.Forms;

using SolidWorks.Interop.sldworks;

using SolidWorks.Interop.swconst;

namespace Interconnect

{

public partial class SolidWorksMacro

{

public void Main()

{

swApp.SetUserPreferenceToggle((int)swUserPreferenceToggle_e.swStopDebuggingVstaOnExit, false);

InterConnectingApp obj = new InterConnectingApp();

obj.RunInterconnectApplication(swApp);

return;

}

// The SldWorks swApp variable is pre-assigned for you.

public SldWorks swApp;

}

//InterConnectingApp.Designer.cs:

namespace Interconnect

{

partial class InterConnectingApp

{

/// <summary>

/// Required designer variable.

/// </summary>

private System.ComponentModel.IContainer components = null;

/// <summary>

/// Clean up any resources being used.

/// </summary>

/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>

protected override void Dispose(bool disposing)

{

if (disposing && (components != null))

{

components.Dispose();

}

base.Dispose(disposing);

}

#region Windows Form Designer generated code

/// <summary>

/// Required method for Designer support - do not modify

/// the contents of this method with the code editor.

/// </summary>

private void InitializeComponent()

{

this.groupBox1 = new System.Windows.Forms.GroupBox();

this.chkTurnInterconnectOnOff = new System.Windows.Forms.CheckBox();

this.groupBox2 = new System.Windows.Forms.GroupBox();

this.btnInsertComponent = new System.Windows.Forms.Button();

this.btnInsertFeat = new System.Windows.Forms.Button();

this.groupBox3 = new System.Windows.Forms.GroupBox();

this.btnLoadFile = new System.Windows.Forms.Button();

this.groupBox4 = new System.Windows.Forms.GroupBox();

this.groupBox8 = new System.Windows.Forms.GroupBox();

this.chkSolidBodies = new System.Windows.Forms.CheckBox();

this.chkSurfaceBodies = new System.Windows.Forms.CheckBox();

this.chkPlanes = new System.Windows.Forms.CheckBox();

this.chkAxes = new System.Windows.Forms.CheckBox();

this.chkSketchedAndCurves = new System.Windows.Forms.CheckBox();

this.btnSetParams = new System.Windows.Forms.Button();

this.chkMaterial = new System.Windows.Forms.CheckBox();

this.chkCustomProps = new System.Windows.Forms.CheckBox();

this.chkIgnoreHiddenBodies = new System.Windows.Forms.CheckBox();

this.btn_IsInterFeat = new System.Windows.Forms.Button();

this.btnUpdate = new System.Windows.Forms.Button();

this.btnAuthorInfo = new System.Windows.Forms.Button();

this.btnIsUpdateNeeded = new System.Windows.Forms.Button();

this.btnGetParams = new System.Windows.Forms.Button();

this.btnGetRefFileName = new System.Windows.Forms.Button();

this.groupBox5 = new System.Windows.Forms.GroupBox();

this.btnClear = new System.Windows.Forms.Button();

this.richTextBox1 = new System.Windows.Forms.RichTextBox();

this.groupBox6 = new System.Windows.Forms.GroupBox();

this.btnBreakLink = new System.Windows.Forms.Button();

this.groupBox7 = new System.Windows.Forms.GroupBox();

this.btnModelExtRefs = new System.Windows.Forms.Button();

this.btnComponentExtRef = new System.Windows.Forms.Button();

this.btnFeatureExtRefs = new System.Windows.Forms.Button();

this.btnFormOpenFile = new System.Windows.Forms.Button();

this.btnCloseFile = new System.Windows.Forms.Button();

this.btnCloseApp = new System.Windows.Forms.Button();

this.groupBox1.SuspendLayout();

this.groupBox2.SuspendLayout();

this.groupBox3.SuspendLayout();

this.groupBox4.SuspendLayout();

this.groupBox8.SuspendLayout();

this.groupBox5.SuspendLayout();

this.groupBox6.SuspendLayout();

this.groupBox7.SuspendLayout();

this.SuspendLayout();

// groupBox1

this.groupBox1.Controls.Add(this.chkTurnInterconnectOnOff);

this.groupBox1.Location = new System.Drawing.Point(12, 12);

this.groupBox1.Name = "groupBox1";

this.groupBox1.Size = new System.Drawing.Size(148, 51);

this.groupBox1.TabIndex = 0;

this.groupBox1.TabStop = false;

this.groupBox1.Text = "On/Off";

// chkTurnInterconnectOnOff

this.chkTurnInterconnectOnOff.AutoSize = true;

this.chkTurnInterconnectOnOff.Location = new System.Drawing.Point(7, 20);

this.chkTurnInterconnectOnOff.Name = "chkTurnInterconnectOnOff";

this.chkTurnInterconnectOnOff.Size = new System.Drawing.Size(103, 17);

this.chkTurnInterconnectOnOff.TabIndex = 0;

this.chkTurnInterconnectOnOff.Text = "3D Interconnect";

this.chkTurnInterconnectOnOff.UseVisualStyleBackColor = true;

this.chkTurnInterconnectOnOff.CheckStateChanged += new System.EventHandler(this.chkTurnInterconnectOnOff_CheckStateChanged);

// groupBox2

this.groupBox2.Controls.Add(this.btnInsertComponent);

this.groupBox2.Controls.Add(this.btnInsertFeat);

this.groupBox2.Location = new System.Drawing.Point(12, 166);

this.groupBox2.Name = "groupBox2";

this.groupBox2.Size = new System.Drawing.Size(148, 127);

this.groupBox2.TabIndex = 1;

this.groupBox2.TabStop = false;

this.groupBox2.Text = "Inserting Third-Party Files";

// btnInsertComponent

this.btnInsertComponent.Location = new System.Drawing.Point(7, 70);

this.btnInsertComponent.Name = "btnInsertComponent";

this.btnInsertComponent.Size = new System.Drawing.Size(126, 34);

this.btnInsertComponent.TabIndex = 1;

this.btnInsertComponent.Text = "Insert as Component";

this.btnInsertComponent.UseVisualStyleBackColor = true;

this.btnInsertComponent.Click += new System.EventHandler(this.btnInsertComponent_Click);

// btnInsertFeat

this.btnInsertFeat.Location = new System.Drawing.Point(6, 32);

this.btnInsertFeat.Name = "btnInsertFeat";

this.btnInsertFeat.Size = new System.Drawing.Size(127, 32);

this.btnInsertFeat.TabIndex = 0;

this.btnInsertFeat.Text = "Insert as Feature";

this.btnInsertFeat.UseVisualStyleBackColor = true;

this.btnInsertFeat.Click += new System.EventHandler(this.btnInsertFeat_Click);

// groupBox3

this.groupBox3.Controls.Add(this.btnLoadFile);

this.groupBox3.Location = new System.Drawing.Point(12, 328);

this.groupBox3.Name = "groupBox3";

this.groupBox3.Size = new System.Drawing.Size(148, 81);

this.groupBox3.TabIndex = 2;

this.groupBox3.TabStop = false;

this.groupBox3.Text = "Opening Third-Party Files";

// btnLoadFile

this.btnLoadFile.Location = new System.Drawing.Point(7, 31);

this.btnLoadFile.Name = "btnLoadFile";

this.btnLoadFile.Size = new System.Drawing.Size(126, 23);

this.btnLoadFile.TabIndex = 0;

this.btnLoadFile.Text = "Load File";

this.btnLoadFile.UseVisualStyleBackColor = true;

this.btnLoadFile.Click += new System.EventHandler(this.btnLoadFile_Click);

// groupBox4

this.groupBox4.Controls.Add(this.groupBox8);

this.groupBox4.Controls.Add(this.btn_IsInterFeat);

this.groupBox4.Controls.Add(this.btnUpdate);

this.groupBox4.Controls.Add(this.btnAuthorInfo);

this.groupBox4.Controls.Add(this.btnIsUpdateNeeded);

this.groupBox4.Controls.Add(this.btnGetParams);

this.groupBox4.Controls.Add(this.btnGetRefFileName);

this.groupBox4.Location = new System.Drawing.Point(188, 12);

this.groupBox4.Name = "groupBox4";

this.groupBox4.Size = new System.Drawing.Size(296, 386);

this.groupBox4.TabIndex = 3;

this.groupBox4.TabStop = false;

this.groupBox4.Text = "Editing Third-Party File Data";

// groupBox8

this.groupBox8.Controls.Add(this.chkSolidBodies);

this.groupBox8.Controls.Add(this.chkSurfaceBodies);

this.groupBox8.Controls.Add(this.chkPlanes);

this.groupBox8.Controls.Add(this.chkAxes);

this.groupBox8.Controls.Add(this.chkSketchedAndCurves);

this.groupBox8.Controls.Add(this.btnSetParams);

this.groupBox8.Controls.Add(this.chkMaterial);

this.groupBox8.Controls.Add(this.chkCustomProps);

this.groupBox8.Controls.Add(this.chkIgnoreHiddenBodies);

this.groupBox8.Location = new System.Drawing.Point(6, 114);

this.groupBox8.Name = "groupBox8";

this.groupBox8.Size = new System.Drawing.Size(283, 203);

this.groupBox8.TabIndex = 16;

this.groupBox8.TabStop = false;

this.groupBox8.Text = "Import Parameters";

// chkSolidBodies

this.chkSolidBodies.AutoSize = true;

this.chkSolidBodies.Location = new System.Drawing.Point(6, 30);

this.chkSolidBodies.Name = "chkSolidBodies";

this.chkSolidBodies.Size = new System.Drawing.Size(84, 17);

this.chkSolidBodies.TabIndex = 0;

this.chkSolidBodies.Text = "Solid Bodies";

this.chkSolidBodies.UseVisualStyleBackColor = true;

// chkSurfaceBodies

this.chkSurfaceBodies.AutoSize = true;

this.chkSurfaceBodies.Location = new System.Drawing.Point(141, 30);

this.chkSurfaceBodies.Name = "chkSurfaceBodies";

this.chkSurfaceBodies.Size = new System.Drawing.Size(98, 17);

this.chkSurfaceBodies.TabIndex = 1;

this.chkSurfaceBodies.Text = "Surface Bodies";

this.chkSurfaceBodies.UseVisualStyleBackColor = true;

// chkPlanes

this.chkPlanes.AutoSize = true;

this.chkPlanes.Location = new System.Drawing.Point(6, 63);

this.chkPlanes.Name = "chkPlanes";

this.chkPlanes.Size = new System.Drawing.Size(58, 17);

this.chkPlanes.TabIndex = 2;

this.chkPlanes.Text = "Planes";

this.chkPlanes.UseVisualStyleBackColor = true;

// chkAxes

this.chkAxes.AutoSize = true;

this.chkAxes.Location = new System.Drawing.Point(141, 63);

this.chkAxes.Name = "chkAxes";

this.chkAxes.Size = new System.Drawing.Size(49, 17);

this.chkAxes.TabIndex = 3;

this.chkAxes.Text = "Axes";

this.chkAxes.UseVisualStyleBackColor = true;

// chkSketchedAndCurves

this.chkSketchedAndCurves.AutoSize = true;

this.chkSketchedAndCurves.Location = new System.Drawing.Point(6, 95);

this.chkSketchedAndCurves.Name = "chkSketchedAndCurves";

this.chkSketchedAndCurves.Size = new System.Drawing.Size(129, 17);

this.chkSketchedAndCurves.TabIndex = 4;

this.chkSketchedAndCurves.Text = "Sketches And Curves";

this.chkSketchedAndCurves.UseVisualStyleBackColor = true;

// btnSetParams

this.btnSetParams.Location = new System.Drawing.Point(73, 154);

this.btnSetParams.Name = "btnSetParams";

this.btnSetParams.Size = new System.Drawing.Size(117, 34);

this.btnSetParams.TabIndex = 12;

this.btnSetParams.Text = "Set Parameters";

this.btnSetParams.UseVisualStyleBackColor = true;

this.btnSetParams.Click += new System.EventHandler(this.btnSetParams_Click);

// chkMaterial

this.chkMaterial.AutoSize = true;

this.chkMaterial.Location = new System.Drawing.Point(141, 95);

this.chkMaterial.Name = "chkMaterial";

this.chkMaterial.Size = new System.Drawing.Size(63, 17);

this.chkMaterial.TabIndex = 6;

this.chkMaterial.Text = "Material";

this.chkMaterial.UseVisualStyleBackColor = true;

// chkCustomProps

this.chkCustomProps.AutoSize = true;

this.chkCustomProps.Location = new System.Drawing.Point(6, 131);

this.chkCustomProps.Name = "chkCustomProps";

this.chkCustomProps.Size = new System.Drawing.Size(111, 17);

this.chkCustomProps.TabIndex = 5;

this.chkCustomProps.Text = "Custom Properties";

this.chkCustomProps.UseVisualStyleBackColor = true;

// chkIgnoreHiddenBodies

this.chkIgnoreHiddenBodies.AutoSize = true;

this.chkIgnoreHiddenBodies.Location = new System.Drawing.Point(141, 131);

this.chkIgnoreHiddenBodies.Name = "chkIgnoreHiddenBodies";

this.chkIgnoreHiddenBodies.Size = new System.Drawing.Size(128, 17);

this.chkIgnoreHiddenBodies.TabIndex = 7;

this.chkIgnoreHiddenBodies.Text = "Ignore Hidden Bodies";

this.chkIgnoreHiddenBodies.UseVisualStyleBackColor = true;

// btn_IsInterFeat

this.btn_IsInterFeat.Location = new System.Drawing.Point(6, 19);

this.btn_IsInterFeat.Name = "btn_IsInterFeat";

this.btn_IsInterFeat.Size = new System.Drawing.Size(111, 34);

this.btn_IsInterFeat.TabIndex = 15;

this.btn_IsInterFeat.Text = "Is 3D Interconnect Feature?";

this.btn_IsInterFeat.UseVisualStyleBackColor = true;

this.btn_IsInterFeat.Click += new System.EventHandler(this.btn_IsInterFeat_Click);

// btnUpdate

this.btnUpdate.Location = new System.Drawing.Point(147, 335);

this.btnUpdate.Name = "btnUpdate";

this.btnUpdate.Size = new System.Drawing.Size(117, 34);

this.btnUpdate.TabIndex = 14;

this.btnUpdate.Text = "Update";

this.btnUpdate.UseVisualStyleBackColor = true;

this.btnUpdate.Click += new System.EventHandler(this.btnUpdate_Click);

// btnAuthorInfo

this.btnAuthorInfo.Location = new System.Drawing.Point(138, 70);

this.btnAuthorInfo.Name = "btnAuthorInfo";

this.btnAuthorInfo.Size = new System.Drawing.Size(132, 31);

this.btnAuthorInfo.TabIndex = 10;

this.btnAuthorInfo.Text = "Show Authoring Info";

this.btnAuthorInfo.UseVisualStyleBackColor = true;

this.btnAuthorInfo.Click += new System.EventHandler(this.btnAuthorInfo_Click);

// btnIsUpdateNeeded

this.btnIsUpdateNeeded.Location = new System.Drawing.Point(7, 335);

this.btnIsUpdateNeeded.Name = "btnIsUpdateNeeded";

this.btnIsUpdateNeeded.Size = new System.Drawing.Size(130, 34);

this.btnIsUpdateNeeded.TabIndex = 13;

this.btnIsUpdateNeeded.Text = "Needs Update?";

this.btnIsUpdateNeeded.UseVisualStyleBackColor = true;

this.btnIsUpdateNeeded.Click += new System.EventHandler(this.btnIsUpdateNeeded_Click);

// btnGetParams

this.btnGetParams.Location = new System.Drawing.Point(8, 68);

this.btnGetParams.Name = "btnGetParams";

this.btnGetParams.Size = new System.Drawing.Size(111, 34);

this.btnGetParams.TabIndex = 11;

this.btnGetParams.Text = "Show Parameters";

this.btnGetParams.UseVisualStyleBackColor = true;

this.btnGetParams.Click += new System.EventHandler(this.btnGetParams_Click);

// btnGetRefFileName

this.btnGetRefFileName.Location = new System.Drawing.Point(138, 20);

this.btnGetRefFileName.Name = "btnGetRefFileName";

this.btnGetRefFileName.Size = new System.Drawing.Size(132, 33);

this.btnGetRefFileName.TabIndex = 8;

this.btnGetRefFileName.Text = "Show Reference File";

this.btnGetRefFileName.UseVisualStyleBackColor = true;

this.btnGetRefFileName.Click += new System.EventHandler(this.btnGetRefFileName_Click);

// groupBox5

this.groupBox5.Controls.Add(this.btnClear);

this.groupBox5.Controls.Add(this.richTextBox1);

this.groupBox5.Location = new System.Drawing.Point(499, 12);

this.groupBox5.Name = "groupBox5";

this.groupBox5.Size = new System.Drawing.Size(325, 548);

this.groupBox5.TabIndex = 4;

this.groupBox5.TabStop = false;

this.groupBox5.Text = "Information";

// btnClear

this.btnClear.Location = new System.Drawing.Point(120, 473);

this.btnClear.Name = "btnClear";

this.btnClear.Size = new System.Drawing.Size(103, 33);

this.btnClear.TabIndex = 1;

this.btnClear.Text = "Clear";

this.btnClear.UseVisualStyleBackColor = true;

this.btnClear.Click += new System.EventHandler(this.btnClear_Click);

// richTextBox1

this.richTextBox1.BorderStyle = System.Windows.Forms.BorderStyle.None;

this.richTextBox1.Location = new System.Drawing.Point(6, 20);

this.richTextBox1.Name = "richTextBox1";

this.richTextBox1.Size = new System.Drawing.Size(313, 422);

this.richTextBox1.TabIndex = 0;

this.richTextBox1.Text = "";

// groupBox6

this.groupBox6.Controls.Add(this.btnBreakLink);

this.groupBox6.Location = new System.Drawing.Point(12, 430);

this.groupBox6.Name = "groupBox6";

this.groupBox6.Size = new System.Drawing.Size(148, 68);

this.groupBox6.TabIndex = 5;

this.groupBox6.TabStop = false;

this.groupBox6.Text = "Link";

// btnBreakLink

this.btnBreakLink.Location = new System.Drawing.Point(7, 30);

this.btnBreakLink.Name = "btnBreakLink";

this.btnBreakLink.Size = new System.Drawing.Size(126, 23);

this.btnBreakLink.TabIndex = 0;

this.btnBreakLink.Text = "Break Link";

this.btnBreakLink.UseVisualStyleBackColor = true;

this.btnBreakLink.Click += new System.EventHandler(this.btnBreakLink_Click);

// groupBox7

this.groupBox7.Controls.Add(this.btnModelExtRefs);

this.groupBox7.Controls.Add(this.btnComponentExtRef);

this.groupBox7.Controls.Add(this.btnFeatureExtRefs);

this.groupBox7.Location = new System.Drawing.Point(188, 432);

this.groupBox7.Name = "groupBox7";

this.groupBox7.Size = new System.Drawing.Size(283, 66);

this.groupBox7.TabIndex = 6;

this.groupBox7.TabStop = false;

this.groupBox7.Text = "External References";

// btnModelExtRefs

this.btnModelExtRefs.Location = new System.Drawing.Point(188, 26);

this.btnModelExtRefs.Name = "btnModelExtRefs";

this.btnModelExtRefs.Size = new System.Drawing.Size(85, 34);

this.btnModelExtRefs.TabIndex = 2;

this.btnModelExtRefs.Text = "Model";

this.btnModelExtRefs.UseVisualStyleBackColor = true;

this.btnModelExtRefs.Click += new System.EventHandler(this.btnModelExtRefs_Click);

// btnComponentExtRef

this.btnComponentExtRef.Location = new System.Drawing.Point(97, 26);

this.btnComponentExtRef.Name = "btnComponentExtRef";

this.btnComponentExtRef.Size = new System.Drawing.Size(85, 34);

this.btnComponentExtRef.TabIndex = 1;

this.btnComponentExtRef.Text = "Component";

this.btnComponentExtRef.UseVisualStyleBackColor = true;

this.btnComponentExtRef.Click += new System.EventHandler(this.btnComponentExtRef_Click);

// btnFeatureExtRefs

this.btnFeatureExtRefs.Location = new System.Drawing.Point(7, 26);

this.btnFeatureExtRefs.Name = "btnFeatureExtRefs";

this.btnFeatureExtRefs.Size = new System.Drawing.Size(85, 34);

this.btnFeatureExtRefs.TabIndex = 0;

this.btnFeatureExtRefs.Text = "Feature";

this.btnFeatureExtRefs.UseVisualStyleBackColor = true;

this.btnFeatureExtRefs.Click += new System.EventHandler(this.btnFeatureExtRefs_Click);

// btnFormOpenFile

this.btnFormOpenFile.Location = new System.Drawing.Point(12, 92);

this.btnFormOpenFile.Name = "btnFormOpenFile";

this.btnFormOpenFile.Size = new System.Drawing.Size(126, 39);

this.btnFormOpenFile.TabIndex = 7;

this.btnFormOpenFile.Text = "Open SOLIDWORKS File";

this.btnFormOpenFile.UseVisualStyleBackColor = true;

this.btnFormOpenFile.Click += new System.EventHandler(this.btnFormOpenFile_Click);

// btnCloseFile

this.btnCloseFile.Location = new System.Drawing.Point(92, 521);

this.btnCloseFile.Name = "btnCloseFile";

this.btnCloseFile.Size = new System.Drawing.Size(103, 39);

this.btnCloseFile.TabIndex = 8;

this.btnCloseFile.Text = "Close File";

this.btnCloseFile.UseVisualStyleBackColor = true;

this.btnCloseFile.Click += new System.EventHandler(this.btnCloseFile_Click);

// btnCloseApp

this.btnCloseApp.Location = new System.Drawing.Point(236, 521);

this.btnCloseApp.Name = "btnCloseApp";

this.btnCloseApp.Size = new System.Drawing.Size(103, 39);

this.btnCloseApp.TabIndex = 9;

this.btnCloseApp.Text = "Close Application";

this.btnCloseApp.UseVisualStyleBackColor = true;

this.btnCloseApp.Click += new System.EventHandler(this.btnCloseApp_Click);

// InterConnectingApp

this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);

this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;

this.ClientSize = new System.Drawing.Size(842, 579);

this.Controls.Add(this.btnCloseApp);

this.Controls.Add(this.btnCloseFile);

this.Controls.Add(this.btnFormOpenFile);

this.Controls.Add(this.groupBox7);

this.Controls.Add(this.groupBox6);

this.Controls.Add(this.groupBox5);

this.Controls.Add(this.groupBox4);

this.Controls.Add(this.groupBox3);

this.Controls.Add(this.groupBox2);

this.Controls.Add(this.groupBox1);

this.FormBorderStyle = System.Windows.Forms.FormBorderStyle.FixedSingle;

this.Name = "InterConnectingApp";

this.Text = "InterConnectingApp";

this.groupBox1.ResumeLayout(false);

this.groupBox1.PerformLayout();

this.groupBox2.ResumeLayout(false);

this.groupBox3.ResumeLayout(false);

this.groupBox4.ResumeLayout(false);

this.groupBox8.ResumeLayout(false);

this.groupBox8.PerformLayout();

this.groupBox5.ResumeLayout(false);

this.groupBox6.ResumeLayout(false);

this.groupBox7.ResumeLayout(false);

this.ResumeLayout(false);

}

#endregion

private System.Windows.Forms.GroupBox groupBox1;

private System.Windows.Forms.CheckBox chkTurnInterconnectOnOff;

private System.Windows.Forms.GroupBox groupBox2;

private System.Windows.Forms.Button btnInsertComponent;

private System.Windows.Forms.Button btnInsertFeat;

private System.Windows.Forms.GroupBox groupBox3;

private System.Windows.Forms.Button btnLoadFile;

private System.Windows.Forms.GroupBox groupBox4;

private System.Windows.Forms.Button btnAuthorInfo;

private System.Windows.Forms.Button btnGetRefFileName;

private System.Windows.Forms.CheckBox chkIgnoreHiddenBodies;

private System.Windows.Forms.CheckBox chkMaterial;

private System.Windows.Forms.CheckBox chkCustomProps;

private System.Windows.Forms.CheckBox chkSketchedAndCurves;

private System.Windows.Forms.CheckBox chkAxes;

private System.Windows.Forms.CheckBox chkPlanes;

private System.Windows.Forms.CheckBox chkSurfaceBodies;

private System.Windows.Forms.CheckBox chkSolidBodies;

private System.Windows.Forms.Button btnUpdate;

private System.Windows.Forms.Button btnIsUpdateNeeded;

private System.Windows.Forms.Button btnSetParams;

private System.Windows.Forms.Button btnGetParams;

private System.Windows.Forms.GroupBox groupBox5;

private System.Windows.Forms.RichTextBox richTextBox1;

private System.Windows.Forms.Button btnClear;

private System.Windows.Forms.GroupBox groupBox6;

private System.Windows.Forms.Button btnBreakLink;

private System.Windows.Forms.GroupBox groupBox7;

private System.Windows.Forms.Button btnModelExtRefs;

private System.Windows.Forms.Button btnComponentExtRef;

private System.Windows.Forms.Button btnFeatureExtRefs;

private System.Windows.Forms.Button btnFormOpenFile;

private System.Windows.Forms.Button btnCloseFile;

private System.Windows.Forms.Button btnCloseApp;

private System.Windows.Forms.Button btn_IsInterFeat;

private System.Windows.Forms.GroupBox groupBox8;

}

//InterConnectingApp.cs:

using System;

using System.Collections.Generic;

using System.ComponentModel;

using System.Data;

using System.Drawing;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using System.Windows.Forms;

using System.IO;

using SolidWorks.Interop.sldworks;

using SolidWorks.Interop.swconst;

namespace Interconnect

{

public partial class InterConnectingApp : Form

{

public SldWorks m_SwApp = default(SldWorks);

public ModelDoc2 swModelDoc = default(ModelDoc2);

public PartDoc swPart = default(PartDoc);

public AssemblyDoc swAssembly = default(AssemblyDoc);

public Feature swFeat = default(Feature);

public Component2 swComp = default(Component2);

public Import3DInterconnectData swIntrConData = default(Import3DInterconnectData);

public SelectionMgr swSelMgr = default(SelectionMgr);

public string strCurModelDoc = string.Empty;

public int m_LongStatus;

public int m_Warning;

public bool m_BoolStatus;

public StringBuilder strEventData;

delegate void StringArgReturningVoidDelegate(string text);

public InterConnectingApp()

{

InitializeComponent();

}

public void RunInterconnectApplication(SldWorks swApp)

{

m_SwApp = swApp;

swModelDoc = (ModelDoc2)m_SwApp.ActiveDoc;

if (swModelDoc != null)

{

strCurModelDoc = swModelDoc.GetPathName();

string strExt = Path.GetExtension(strCurModelDoc);

if (strExt.ToLower() == ".sldprt")

swPart = (PartDoc)swModelDoc;

else if (strExt.ToLower() == ".sldasm")

swAssembly = (AssemblyDoc)swModelDoc;

}

AttachEventHandlers();

strEventData = new StringBuilder();

Application.Run(this);

}

public void AttachEventHandlers()

{

AttachSWEvents();

}

public void AttachSWEvents()

{

m_SwApp.Begin3DInterconnectTranslationNotify += M_SwApp_Begin3DInterconnectTranslationNotify;

m_SwApp.End3DInterconnectTranslationNotify += M_SwApp_End3DInterconnectTranslationNotify;

}

public int M_SwApp_End3DInterconnectTranslationNotify(string FileName)

{

strEventData = strEventData.Append("3D Interconnect translation finished");

strEventData = strEventData.Append("\r\n");

return 0;

}

public int M_SwApp_Begin3DInterconnectTranslationNotify(string FileName)

{

strEventData = strEventData.Append("3D Interconnect translation started");

strEventData = strEventData.Append("\r\n");

return 0;

}

public int BeginTranslationNotify()

{

int i = 0;

return i;

}

//Information field

public void SetRichTextBoxVal(string strText)

{

try

{

if (this.richTextBox1.InvokeRequired == true)

{

StringArgReturningVoidDelegate d = new StringArgReturningVoidDelegate(SetRichTextBoxVal);

this.Invoke(d, new object[] { strText });

}

else

{

this.richTextBox1.Text = strText;

}

catch (Exception e)

{

MessageBox.Show(e.Message);

}

//Turn 3D Interconnect on and off

private void chkTurnInterconnectOnOff_CheckStateChanged(object sender, EventArgs e)

{

if (chkTurnInterconnectOnOff.CheckState == CheckState.Checked)

{

m_SwApp.SetUserPreferenceToggle((int)swUserPreferenceToggle_e.swMultiCAD_Enable3DInterconnect, true);

}

else if (chkTurnInterconnectOnOff.CheckState == CheckState.Unchecked)

{

m_SwApp.SetUserPreferenceToggle((int)swUserPreferenceToggle_e.swMultiCAD_Enable3DInterconnect, false);

}

//Open a SOLIDWORKS document

private void btnFormOpenFile_Click(object sender, EventArgs e)

{

OpenFileDialog m_fileOpenDlg = new OpenFileDialog();

m_fileOpenDlg.Filter = "SolidWorks File | *.sldprt; *.sldasm";

m_fileOpenDlg.Title = "Open SolidWorks File";

string FilePath = string.Empty;

string FileExtension = string.Empty;

if (m_fileOpenDlg.ShowDialog() == DialogResult.OK)

{

FilePath = m_fileOpenDlg.FileName;

FileExtension = Path.GetExtension(FilePath);

if (FileExtension.ToLower() == ".sldasm")

{

swModelDoc = (ModelDoc2)m_SwApp.OpenDoc6(FilePath, (int)swDocumentTypes_e.swDocASSEMBLY, (int)swOpenDocOptions_e.swOpenDocOptions_Silent, "", ref m_LongStatus, ref m_Warning);

swAssembly = (AssemblyDoc)swModelDoc;

}

else if (FileExtension.ToLower() == ".sldprt")

{

swModelDoc = (ModelDoc2)m_SwApp.OpenDoc6(FilePath, (int)swDocumentTypes_e.swDocPART, (int)swOpenDocOptions_e.swOpenDocOptions_Silent, "", ref m_LongStatus, ref m_Warning);

swPart = (PartDoc)swModelDoc;

}

//Insert third-party feature into the current part

private void btnInsertFeat_Click(object sender, EventArgs e)

{

swModelDoc = (ModelDoc2)m_SwApp.ActiveDoc;

if (swModelDoc != null) {

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

{

if (swPart != null)

{

OpenFileDialog m_fileOpenDlg = new OpenFileDialog();

m_fileOpenDlg.Title = "Insert Third-Party Feature";

string FilePath = string.Empty;

if (m_fileOpenDlg.ShowDialog() == DialogResult.OK)

{

FilePath = m_fileOpenDlg.FileName;

swFeat = (Feature)swPart.InsertImportedFeature(FilePath, out m_LongStatus);

if (swFeat == null)

SetRichTextBoxVal(m_LongStatus.ToString());

}

//Insert third-party component into the current assembly

private void btnInsertComponent_Click(object sender, EventArgs e)

{

swModelDoc = (ModelDoc2)m_SwApp.ActiveDoc;

if (swModelDoc != null)

{

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

if (swAssembly != null)

{

OpenFileDialog m_fileOpenDlg = new OpenFileDialog();

m_fileOpenDlg.Filter = "All Files | *.*";

m_fileOpenDlg.Title = "Insert Third-Party Component";

string FilePath = string.Empty;

if (m_fileOpenDlg.ShowDialog() == DialogResult.OK)

{

FilePath = m_fileOpenDlg.FileName;

Object InsertedComp = null;

int retVal = (int)swAssembly.InsertImportedComponent(FilePath, 0, 0, 0, out InsertedComp);

swComp = (InsertedComp != null) ? (Component2)InsertedComp : null;

if (swComp == null)

SetRichTextBoxVal(retVal.ToString());

else

{

SetRichTextBoxVal(strEventData.ToString());

strEventData.Length = 0;

}

//Open a third-party file into a new document

private void btnLoadFile_Click(object sender, EventArgs e)

{

OpenFileDialog m_fileOpenDlg = new OpenFileDialog();

m_fileOpenDlg.Filter = "All Files | *.*";

m_fileOpenDlg.Title = "Open Third-Party File";

string FilePath = string.Empty;

if (m_fileOpenDlg.ShowDialog() == DialogResult.OK)

{

FilePath = m_fileOpenDlg.FileName;

swModelDoc = m_SwApp.LoadFile4(FilePath, "r", null, ref m_LongStatus);

string strLoadFileError = "";

if (m_LongStatus != 0)

strLoadFileError = "File load error as defined in swFileLoadError_e: " + m_LongStatus.ToString();

StringBuilder strLoadFileInfo = new StringBuilder();

strLoadFileInfo = strLoadFileInfo.Append(strLoadFileError);

strLoadFileInfo = strLoadFileInfo.Append("\r\n");

strLoadFileInfo = strLoadFileInfo.Append(strEventData.ToString());

SetRichTextBoxVal(strLoadFileInfo.ToString());

strEventData.Length = 0;

if (swModelDoc != null)

{

string strModelName = swModelDoc.GetPathName();

string strExt = Path.GetExtension(strModelName);

if (strExt.ToLower() == ".sldprt")

swPart = (PartDoc)swModelDoc;

else if (strExt.ToLower() == ".sldasm")

swAssembly = (AssemblyDoc)swModelDoc;

}

private void btnCloseApp_Click(object sender, EventArgs e)

{

Application.Exit();

}

private void btnCloseFile_Click(object sender, EventArgs e)

{

m_SwApp.CloseDoc(strCurModelDoc);

}

//Get whether the selected feature is a 3D Interconnect feature

private void btn_IsInterFeat_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

m_BoolStatus = false;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

{

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

if (swFeat != null)

m_BoolStatus = swFeat.Is3DInterconnectFeature;

else

MessageBox.Show("No feature selected");

}

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName;

string sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

if (swFeat != null)

m_BoolStatus = swFeat.Is3DInterconnectFeature;

else

MessageBox.Show("No feature selected");

}

if (m_BoolStatus == false)

SetRichTextBoxVal("This is NOT a 3D Interconnect feature");

else

SetRichTextBoxVal("This is a 3D Interconnect feature");

}

private void btnClear_Click(object sender, EventArgs e)

{

SetRichTextBoxVal("");

}

//Show the selected item's reference file name

private void btnGetRefFileName_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

object DataObj = null;

swFeat.GetImportedFeatureParameters(out DataObj);

swIntrConData = (Import3DInterconnectData)DataObj;

if (swIntrConData != null)

{

SetRichTextBoxVal(swIntrConData.GetReferencedFileName());

}

//Show the selected item's authoring application

private void btnAuthorInfo_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

object DataObj = null;

swFeat.GetImportedFeatureParameters(out DataObj);

swIntrConData = (Import3DInterconnectData)DataObj;

if (swIntrConData != null)

{

SetRichTextBoxVal(swIntrConData.GetAuthoringInfo());

}

//Show the import settings

private void btnGetParams_Click(object sender, EventArgs e)

{

StringBuilder strBld = new StringBuilder();

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName, sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

}

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

object DataObj = null;

swFeat.GetImportedFeatureParameters(out DataObj);

swIntrConData = (Import3DInterconnectData)DataObj;

if (swIntrConData != null)

{

if (swIntrConData.SolidBodies == true)

{

strBld = strBld.Append("Solid Bodies"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.SurfaceBodies == true)

{

strBld = strBld.Append("Surface Bodies"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.Planes == true)

{

strBld = strBld.Append("Planes"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.Axes == true)

{

strBld = strBld.Append("Axes"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.SketchesAndCurves == true)

{

strBld = strBld.Append("Sketches And Curves"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.CustomProperties == true)

{

strBld = strBld.Append("Custom Properties"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.Material == true)

{

strBld = strBld.Append("Material"); strBld = strBld.Append("\r\n");

}

if (swIntrConData.IgnoreHiddenEntities == true)

{

strBld = strBld.Append("Ignore Hidden Entities"); strBld = strBld.Append("\r\n");

}

SetRichTextBoxVal(strBld.ToString());

}

//Set new import settings

private void btnSetParams_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName, sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

}

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

object DataObj = null;

swFeat.GetImportedFeatureParameters(out DataObj);

swIntrConData = (Import3DInterconnectData)DataObj;

if (swIntrConData != null)

{

if (chkSolidBodies.CheckState == CheckState.Checked)

swIntrConData.SolidBodies = true;

else

swIntrConData.SolidBodies = false;

if (chkSurfaceBodies.CheckState == CheckState.Checked)

swIntrConData.SurfaceBodies = true;

else

swIntrConData.SurfaceBodies = false;

if (chkPlanes.CheckState == CheckState.Checked)

swIntrConData.Planes = true;

else

swIntrConData.Planes = false;

if (chkAxes.CheckState == CheckState.Checked)

swIntrConData.Axes = true;

else

swIntrConData.Axes = false;

if (chkSketchedAndCurves.CheckState == CheckState.Checked)

swIntrConData.SketchesAndCurves = true;

else

swIntrConData.SketchesAndCurves = false;

if (chkCustomProps.CheckState == CheckState.Checked)

swIntrConData.CustomProperties = true;

else

swIntrConData.CustomProperties = false;

if (chkMaterial.CheckState == CheckState.Checked)

swIntrConData.Material = true;

else

swIntrConData.Material = false;

if (chkIgnoreHiddenBodies.CheckState == CheckState.Checked)

swIntrConData.IgnoreHiddenEntities = true;

else

swIntrConData.IgnoreHiddenEntities = false;

m_LongStatus = swFeat.SetImportedFeatureParameters(swIntrConData);

if (m_LongStatus != 0)

{

SetRichTextBoxVal("Error setting import parameters as defined in sw3DInterconnectImportErrors_e: " + m_LongStatus.ToString());

}

//Get whether the selected 3D Interconnect item needs an update

private void btnIsUpdateNeeded_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName, sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

}

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

if (swFeat.Is3DInterconnectUpdateAvailable == true)

SetRichTextBoxVal("Need to update");

else

SetRichTextBoxVal("No update needed");

}

//Update the selected 3D Interconnect item

private void btnUpdate_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName, sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

}

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

bool isUpdated = swFeat.Update3DInterconnectModel();

if (isUpdated)

SetRichTextBoxVal("Updated");

else

SetRichTextBoxVal("Error during update");

}

//Break the link between the selected item and its original file

private void btnBreakLink_Click(object sender, EventArgs e)

{

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocPART)

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

else if (swModelDoc.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)

{

object objSelected = swSelMgr.GetSelectedObject6(1, -1);

string strSelectedObjName, sType;

int iType;

swSelMgr.GetSelectByIdSpecification(objSelected, out strSelectedObjName, out sType, out iType);

swAssembly = (AssemblyDoc)swModelDoc;

if (strSelectedObjName.Length > 0)

{

string[] vNames = strSelectedObjName.Split('@');

swFeat = (Feature)swAssembly.FeatureByName(vNames[0]);

if (swFeat == null && (iType != 22 || iType != 76))

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

}

if ((swFeat != null) & (swFeat.Is3DInterconnectFeature))

{

bool Silent = false; bool allComp = false;

DialogResult dRes = MessageBox.Show("Silent?", "Want Silent", MessageBoxButtons.YesNo);

switch (dRes)

{

case DialogResult.Yes:

{

Silent = true;

break;

}

case DialogResult.No:

{

Silent = false;

break;

}

DialogResult dRes1 = MessageBox.Show("All Components?", "All Comp", MessageBoxButtons.YesNo);

switch (dRes1)

{

case DialogResult.Yes:

{

allComp = true;

break;

}

case DialogResult.No:

{

allComp = false;

break;

}

int lError = swFeat.BreakLink(allComp, Silent);

string inp = "Break Link Error" + lError.ToString();

SetRichTextBoxVal(inp);

}

private void btnFeatureExtRefs_Click(object sender, EventArgs e)

{

object vModelPathName = null;

object vComponentPathName = null;

object vFeature = null;

object vDataType = null;

object vStatus = null;

object vRefEntity = null;

object vFeatComp = null;

int nConfigOpt = 0;

string sConfigName = null;

int nRefCount = 0;

int nSelType = 0;

int i = 0;

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

nSelType = swSelMgr.GetSelectedObjectType3(1, -1);

if (nSelType != (int)swSelectType_e.swSelCOMPONENTS && nSelType != 0)

{

swFeat = (Feature)swSelMgr.GetSelectedObject6(1, -1);

nRefCount = swFeat.ListExternalFileReferencesCount();

swFeat.ListExternalFileReferences2(out vModelPathName, out vComponentPathName, out vFeature, out vDataType, out vStatus, out vRefEntity, out vFeatComp, out nConfigOpt, out sConfigName);

if (nRefCount >= 1)

{

object[] ModelPathName = new object[nRefCount - 1];

object[] ComponentPathName = new object[nRefCount - 1];

object[] Feature = new object[nRefCount - 1];

object[] DataType = new object[nRefCount - 1];

int[] Status = new int[nRefCount - 1];

object[] RefEntity = new object[nRefCount - 1];

object[] FeatComp = new object[nRefCount - 1];

ModelPathName = (object[])vModelPathName;

ComponentPathName = (object[])vComponentPathName;

Feature = (object[])vFeature;

DataType = (object[])vDataType;

Status = (int[])vStatus;

RefEntity = (object[])vRefEntity;

FeatComp = (object[])vFeatComp;

StringBuilder sb = new StringBuilder();

for (i = 0; i <= nRefCount - 1; i++)

{

sb = sb.Append("=>"); sb = sb.Append("Reference Count = "); sb = sb.Append(nRefCount.ToString()); sb = sb.Append("\r\n");

sb = sb.Append(" "); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Model path + name = "); sb = sb.Append(ModelPathName[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Component path + name = "); sb = sb.Append(ComponentPathName[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Feature = "); sb = sb.Append(Feature[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Data type = "); sb = sb.Append(DataType[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Status = "); sb = sb.Append(System.Convert.ToString(Status[i])); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Reference entity = "); sb = sb.Append(RefEntity[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Feature component = "); sb = sb.Append(FeatComp[i].ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Config option = "); sb = sb.Append(nConfigOpt.ToString()); sb = sb.Append("\r\n");

sb = sb.Append("=>"); sb = sb.Append("Config name = "); sb = sb.Append(sConfigName); sb = sb.Append("\r\n");

SetRichTextBoxVal(sb.ToString());

}

private void btnComponentExtRef_Click(object sender, EventArgs e)

{

object vModelPathName = null;

object vComponentPathName = null;

object vFeature = null;

object vDataType = null;

object vStatus = null;

object vRefEntity = null;

object vFeatComp = null;

int nConfigOpt = 0;

string sConfigName = null;

int nRefCount = 0;

int nSelType = 0;

int i = 0;

if (swModelDoc != null)

{

swSelMgr = (SelectionMgr)swModelDoc.SelectionManager;

nSelType = swSelMgr.GetSelectedObjectType3(1, -1);

if (nSelType == (int)swSelectType_e.swSelCOMPONENTS)

{

swComp = (Component2)swSelMgr.GetSelectedObject6(1, -1);

nRefCount = swComp.ListExternalFileReferencesCount();

swComp.ListExternalFileReferences2(out vModelPathName, out vComponentPathName, out vFeature, out vDataType, out vStatus, out vRefEntity, out vFeatComp, out nConfigOpt, out sConfigName);
