Moving Existing Revision Tags

You can move the latest revision tag to the latest version of a file you are upgrading.

Selections represented In the diagram below are:

Screen	Option	Selections
Search Files to Upgrade	Files of type	<All SW file types>
Version Settings	Create new version of files	Files referencing older versions Are excluded Update revisions Move revision

Screen

Option

Selections

Search Files to Upgrade

Files of type

Version Settings

Create new version of files

Files referencing older versions

Are excluded

Update revisions

Move revision

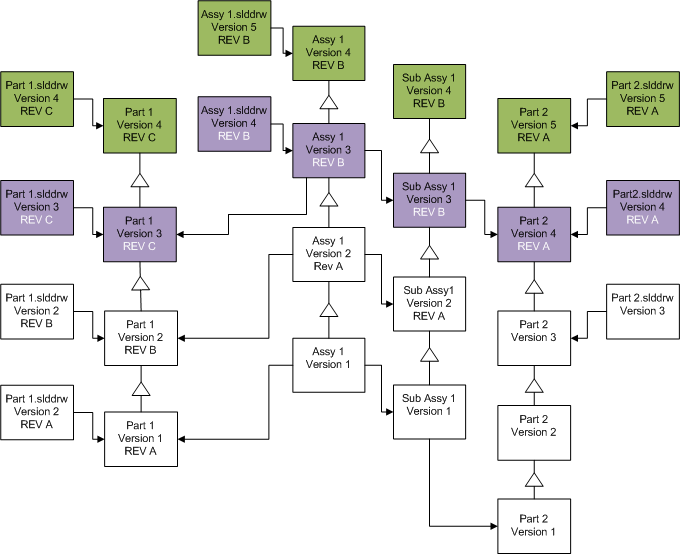

Files before upgrade, showing revision that is moved

Upgraded files
