Displaying the Undeformed Shape of a Model on a Result Plot

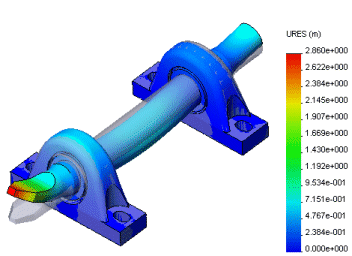

For structural studies, you can superimpose the undeformed shape, with controlled transparency, for results plotted on the deformed shape.

  1. In the Simulation study tree, right-click a plot icon of a structural study and select Settings.
  2. Under Deformed Plot Options, do the following:
    1. Check Superimpose model on the deformed shape.
    2. Set the translucency color and level.
  3. Click .
