You can insert a bend table in the flat pattern view of sheet metal parts in drawings.
Bend tables provide information about the bends in the sheet metal body including:
- Tags
- Directions
- Angles
- Inner radii
You can use bend tables or bend notes, but not both.
 |

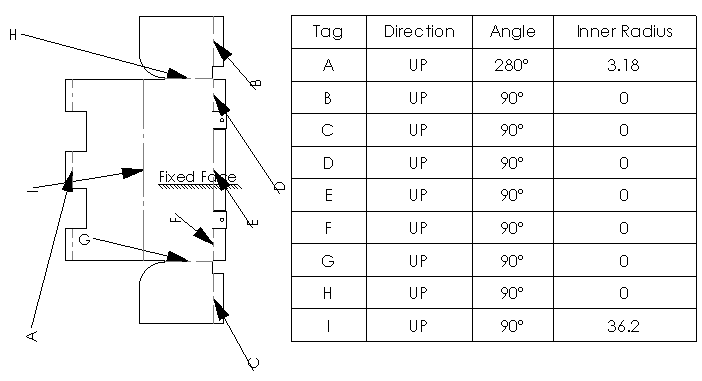

| Bend Table |
 |

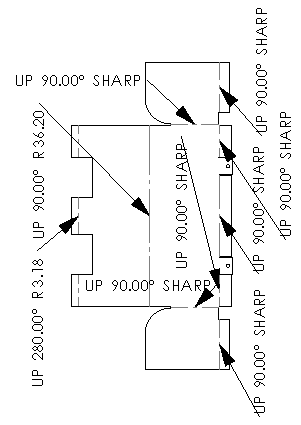

| Bend Notes |
