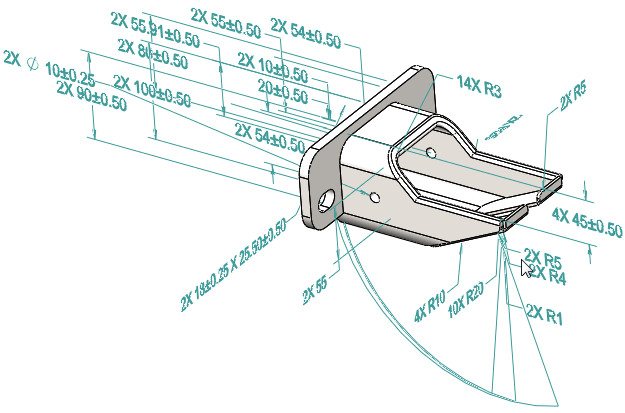

DimXpert in Assemblies

You can use DimXpert in assemblies.


To use DimXpert in assemblies:

  1. Open an assembly.
  2. Click Tools > Options > Document Properties, and set DimXpert options, such as Geometric Tolerance.
  3. Insert dimensions and geometric tolerances manually or automatically.
  4. Save the assembly.

DimXpert dimensions created in parts and subassemblies will not appear in the open assembly. Only DimXpert annotations created in the open assembly will appear in the open assembly.
