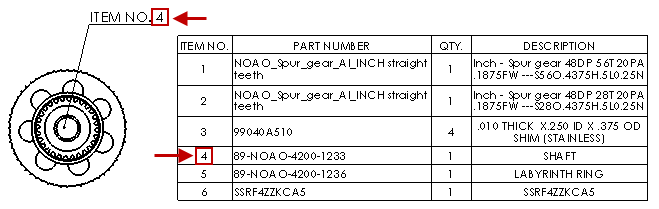

You can link a note to the contents of any BOM or hole table cell.
To link a note to a table cell:
-
In a drawing with a table, insert a note.
- Click .
- Click to place the note.
- Click to edit the note.
- In the PropertyManager, under Text Format, select Link Table Cell .
- In the table, select a cell.
- Click .

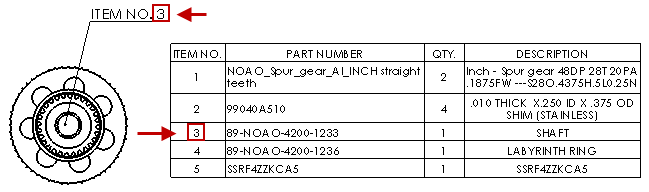

Because the note is linked to a table cell, when the cell value changes, the note updates.
