Add Files to Vault Example (VB.NET)
This example shows how to add files to a vault.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type AddFiles in Name.
' c. Click Browse and navigate to the folder where to create
' the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form, replace the code in Form1.Designer.vb with this code.
' 2. Add references to:
' a. EPDM.Interop.epdm.dll (right-click the project
' name in the Solution Explorer, click Add
> Reference >
' Assemblies > Framework >
Browse and browse to the top folder of your
' SOLIDWORKS PDM Professional installation, select
' EPDM.Interop.epdm.dll,
and click OK).
' b.
EPDM.interop.EPDMResultCode.dll (click
Browse, navigate to and select
' EPDM.interop.EPDMResultCode.dll,
and click OK).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Ensure that the vault workflow contains the Waiting for Approval
state.
' 5. Ensure that the vault workflow contains the Submit for Approval
transition
' to the Waiting for Approval state.
' 6. Ensure that the logged-in PDM user has permission to move files.
' 7. Modify password in
IEdmFile13::ChangeState3 to
' match the password of your logged-in PDM user.
' 8. Click Debug > Start Debugging or press F5.
'
' Postconditions:

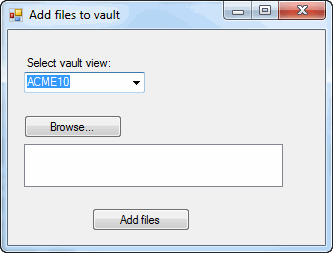

' 1. Displays the Add files to vault dialog box.
' a. Select a vault view.
' b. Click Browse.
' 1. Locate and click three files outside
the vault.
' 2. Click Open.
' c. Click Add files.
' 1. Adds the selected files to the root
folder of the vault.
' 2. Checks in the files.
' 3. Creates path \temp\files in
the root folder.
' 4. Moves one of the files to subfolder
\temp\files.
' 5. Copies one of the files to subfolder
\temp.
' 6. Changes the state of one of the files
in the root folder to
' Waiting for Approval.
' 2. Click OK to close each message box.
' 3. Examine the vault.
' 4. Close the Add files to vault dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Implements IEdmCallback6
Private vault1 As IEdmVault5 = Nothing
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
Dim vault1 As IEdmVault5 = New EdmVault5()
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub BrowseButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BrowseButton.Click
Try
ListBox.Items.Clear()
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Set the initial directory in the Open dialog
OpenFileDialog.InitialDirectory = vault1.RootFolderPath
'Show the Open dialog
Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
DialogResult = OpenFileDialog.ShowDialog()
'If the user didn't click Open, exit
If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
Return
End If
For Each FileName As String In OpenFileDialog.FileNames
ListBox.Items.Add(FileName)
Next
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub AddFiles_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles AddFiles.Click
Try
Dim vault2 As IEdmVault16 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault16)
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
If Not ListBox.Items.Count = 3 Then
MessageBox.Show("Please click three files that are not in the vault.")
Exit Sub
End If
'MessageBox.Show("Vault type as defined in EdmVaultType: " + vault2.GetVaultType().ToString())
Dim aFile As IEdmFile13
' Add selected files to the root folder of the vault
Dim Folder As IEdmFolder9
Folder = vault2.RootFolder
Dim Files() As EdmAddFileInfo
ReDim Files(ListBox.Items.Count - 1)
Dim FileNames(2) As String
Dim Index As Integer = 0
Dim fileStr = ""
For Each FileName In ListBox.Items
fileStr = FileName.ToString()
FileNames(Index) = fileStr.Substring(fileStr.LastIndexOf("\"))
Index = Index + 1
Next
Dim Path As String
Index = 0
For Each FileName In ListBox.Items
Path = FileName
Files(Index).mbsPath = Path
Files(Index).mlEdmAddFlags = EdmAddFlag.EdmAdd_Simple
Files(Index).mlFileID = 0
Files(Index).mlSrcDocumentID = 0
Files(Index).mlSrcProjectID = 0
Files(Index).mbsNewName = ""
Index = Index + 1
Next
Folder.AddFiles(Me.Handle.ToInt32(), Files, Me)
' Check in the files
Dim arrFiles(3) As IEdmFile13
Index = 0
For Each FileName In FileNames
aFile = vault2.GetFileFromPath(Folder.LocalPath + "\" + FileName)
'MessageBox.Show("User can rename " + aFile.Name + " in this folder? " + Folder.HasRenameRights(Me.Handle.ToInt32(), aFile.ID, FileName, "new",
True).ToString())
'MessageBox.Show(aFile.Name + " is in a private state? " + aFile.PrivateStateFile.ToString())
Dim ID As Integer
Dim fName As String
Dim vaultName As String
Dim vaultObject As IEdmVault5
ID = aFile.ID
fName = aFile.Name
vaultObject = aFile.Vault
vaultName = vaultObject.Name
MessageBox.Show("Database ID: " + ID.ToString() + "; Vault name: " + vaultName + "; File name: " + fName)
aFile.UnlockFile(Me.Handle.ToInt32(), "")
arrFiles(Index) = aFile
Dim thumb As Object
thumb = aFile.GetThumbnail
Index = Index + 1
Next
' Create \temp\files path in the root folder
Folder.CreateFolderPath("\temp\files", Me.Handle.ToInt32())
' Move one of the files to the \temp\files subfolder
Dim dest As IEdmFolder5
dest = vault2.GetFolderFromPath(Folder.LocalPath + "\temp\files")
aFile = arrFiles(0)
aFile.Move(Me.Handle.ToInt32(), Folder.ID, dest.ID, 0)
' Copy one of the files to the temp subfolder
aFile = arrFiles(1)
aFile.GetFileCopy(Me.Handle.ToInt32(), "", Folder.LocalPath + "\temp\")
' Change the state of one of the files to Waiting for Approval
aFile = arrFiles(2)
aFile.ChangeState3("Waiting for Approval", "Submit
for Approval", Folder.ID, "The file is waiting for approval.", Me.Handle.ToInt32(), EdmStateFlags.EdmState_Simple, "password")
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Function IEdmCallback6_MsgBox(ByVal lParentWnd As Integer, ByVal lMsgID As Integer, ByVal bsMsg As String, Optional ByVal eType As EdmMBoxType = 0&) As EdmMBoxResult Implements IEdmCallback6.MsgBox
MsgBox(bsMsg)
IEdmCallback6_MsgBox = EdmMBoxResult.EdmMbr_OK
End Function
Private Sub IEdmCallback6_Resolve(ByVal lParentWnd As Integer, ByRef ppoItems() As EdmCmdData) Implements IEdmCallback6.Resolve
End Sub
Private Function IEdmCallback6_SetProgress(ByVal lBarIndex As Integer, ByVal lPos As Integer, ByVal bsMsg As String) As Boolean Implements IEdmCallback6.SetProgress
IEdmCallback6_SetProgress = True
End Function
Private Sub IEdmCallback6_SetProgressRange(ByVal lBarIndex As Integer, ByVal lMax As Integer) Implements IEdmCallback6.SetProgressRange
End Sub
Private Sub IEdmCallback6_SetStatusMessage(ByVal lBarIndex As Integer, ByVal bsMessage As String) Implements IEdmCallback6.SetStatusMessage
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
''' <summary>
''' Required designer variable.
''' </summary>
Private components As System.ComponentModel.IContainer = Nothing
''' <summary>
''' Clean up any resources being used.
''' </summary>
''' <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
If disposing AndAlso (components IsNot Nothing) Then
components.Dispose()
End If
MyBase.Dispose(disposing)
End Sub
#Region "Windows Form Designer generated code"
''' <summary>
''' Required method for Designer support - do not modify
''' the contents of this method with the code editor.
''' </summary>
Private Sub InitializeComponent()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.BrowseButton = New System.Windows.Forms.Button()
Me.ListBox = New System.Windows.Forms.ListBox()
Me.AddFiles = New System.Windows.Forms.Button()
Me.OpenFileDialog = New System.Windows.Forms.OpenFileDialog()
Me.SuspendLayout()
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(13, 26)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(94, 13)
Me.VaultsLabel.TabIndex = 0
Me.VaultsLabel.Text = " Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(16, 42)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 1
'
'BrowseButton
'
Me.BrowseButton.Location = New System.Drawing.Point(16, 85)
Me.BrowseButton.Name = "BrowseButton"
Me.BrowseButton.Size = New System.Drawing.Size(98, 23)
Me.BrowseButton.TabIndex = 3
Me.BrowseButton.Text = "Browse..."
Me.BrowseButton.UseVisualStyleBackColor = True
'
'ListBox
'
Me.ListBox.FormattingEnabled = True
Me.ListBox.HorizontalScrollbar = True
Me.ListBox.Location = New System.Drawing.Point(16, 114)
Me.ListBox.Name = "ListBox"
Me.ListBox.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
Me.ListBox.Size = New System.Drawing.Size(259, 43)
Me.ListBox.TabIndex = 4
'
'AddFiles
'
Me.AddFiles.Location = New System.Drawing.Point(84, 178)
Me.AddFiles.Name = "AddFiles"
Me.AddFiles.Size = New System.Drawing.Size(98, 23)
Me.AddFiles.TabIndex = 5
Me.AddFiles.Text = "Add files"
Me.AddFiles.UseVisualStyleBackColor = True
'
'OpenFileDialog
'
Me.OpenFileDialog.Multiselect = True
Me.OpenFileDialog.Title = "Open"
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(317, 215)
Me.Controls.Add(Me.AddFiles)
Me.Controls.Add(Me.ListBox)
Me.Controls.Add(Me.BrowseButton)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.VaultsLabel)
Me.Name = "Form1"
Me.Text = "Add files to vault"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
#End Region
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents BrowseButton As System.Windows.Forms.Button
Friend WithEvents ListBox As System.Windows.Forms.ListBox
Friend WithEvents AddFiles As System.Windows.Forms.Button
Friend WithEvents OpenFileDialog As System.Windows.Forms.OpenFileDialog
End Class
Back to top
