Add Card Variables to Vault Example (C#)
This example shows how to add card variables to a vault and
edit them.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual
C# > Windows Forms Application.
// b. Type AddEditVars_CSharp in Name.
// c. Click Browse and navigate to the folder where to create
// the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form,
replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and click
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

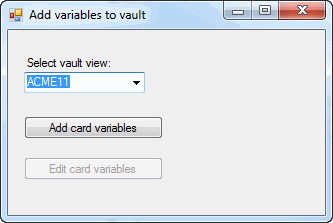

// 1. Displays the Add
variables to vault dialog box.
// 2. Select a vault view.
// 3. Click Add
card variables.
//
a. Adds two card variables, MyNewVar and MySecondVar, to the vault.
// b. Displays a message box with the IDs of the new
variables.
// c. Click OK.
// 4. Click Edit card variables.
// a. Displays the Edit Variables dialog box.
// b. Click OK.
// c. Displays a message box.
// d. Click OK.
// 5. Close the Add
variables to vault dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace AddEditVars_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
IEdmItem item;
IEdmFile8 fileInt;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
Button1.Enabled = false;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void AddVaultVars_Click(System.Object sender, System.EventArgs e)
{
//Add card variables to vault
try
{
IEdmVault11 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault11)vault1;
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmVariableMgr6 poVarMgr = default(IEdmVariableMgr6);
poVarMgr = (IEdmVariableMgr6)vault2.CreateUtility(EdmUtility.EdmUtil_VariableMgr);
EdmVariableData[] aoNewVars = new EdmVariableData[2];
//Set some properties for the first variable
aoNewVars[0].mbsVariableName = "MyNewVar";
aoNewVars[0].meType = EdmVariableType.EdmVarType_Text;
aoNewVars[0].mlEdmVariableFlags = (int)EdmVariableFlags.EdmVar_Mandatory;
EdmAttributeData[] aoAttributes = new EdmAttributeData[1];
aoAttributes[0].mbsBlockName = "DrawingBorder";
aoAttributes[0].mbsAttribName = "PartNumber";
aoAttributes[0].mbsExtensions = "DWG,DXF";
aoNewVars[0].mpoAttributes = aoAttributes;
//Set some properties for the second variable
aoNewVars[1].mbsVariableName = "MySecondVar";
aoNewVars[1].meType = EdmVariableType.EdmVarType_Date;
//Add the variables
poVarMgr.AddVariables(ref aoNewVars);
//Show the IDs of the new variables
string sMsg = null;
sMsg = "";
int iIdx = 0;
iIdx = aoNewVars.GetLowerBound(0);
while (iIdx <= aoNewVars.GetUpperBound(0))
{
sMsg = sMsg + aoNewVars[iIdx].mbsVariableName + " has ID " + (aoNewVars[iIdx].mlVariableID).ToString() + "\n";
iIdx = iIdx + 1;
}
MessageBox.Show(sMsg);
Button1.Enabled = true;
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void Button1_Click(System.Object sender, System.EventArgs e)
{
//Edit card variables
try
{
IEdmVault11 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault11)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmVariableMgr5 varMgr = default(IEdmVariableMgr5);
varMgr = (IEdmVariableMgr5)vault2;
if (varMgr.EditVariables(this.Handle.ToInt32()))
{
MessageBox.Show("An update was made!");
}
else
{
MessageBox.Show("No changes were made.");
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
