Add Card Variables to Vault Example (VB.NET)
This example shows how to add card variables to a vault and
edit them.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type AddEditVars in Name.
' c. Click Browse and navigate to the folder where to create
' the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form,
replace the code in Form1.Designer.vb with this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Click Debug > Start Debugging or press F5.
'
' Postconditions:

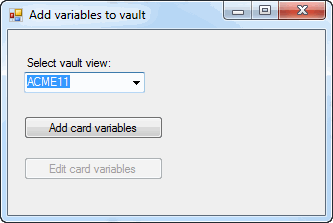

' 1. Displays the Add variables to
vault dialog box.
' 2. Select a vault view.
' 3. Click Add card variables.
' a. Adds two card variables, MyNewVar and MySecondVar, to the
vault.
' b. Displays a message box with the IDs of the new variables.
' c. Click OK.
' 4. Click Edit card variables.
' a. Displays the Edit Variables dialog box.
' b. Click OK.
' c. Displays a message box.
' d. Click OK.
' 5. Close the Add variables to vault dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Dim item As IEdmItem
Dim fileInt As IEdmFile8
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
Dim vault1 As IEdmVault5 = New EdmVault5()
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Button1.Enabled = False
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub AddVaultVars_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles AddVaultVars.Click
'Add card variables to vault
Try
Dim vault2 As IEdmVault11 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault11)
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
Dim poVarMgr As IEdmVariableMgr6
poVarMgr = vault2.CreateUtility(EdmUtility.EdmUtil_VariableMgr)
Dim aoNewVars(1) As EdmVariableData 'Array with 2 variables
'Set some properties for the first variable
aoNewVars(0).mbsVariableName = "MyNewVar"
aoNewVars(0).meType = EdmVariableType.EdmVarType_Text
aoNewVars(0).mlEdmVariableFlags = EdmVariableFlags.EdmVar_Mandatory
Dim aoAttributes(0) As EdmAttributeData
aoAttributes(0).mbsBlockName = "DrawingBorder"
aoAttributes(0).mbsAttribName = "PartNumber"
aoAttributes(0).mbsExtensions = "DWG,DXF"
aoNewVars(0).mpoAttributes = aoAttributes
'Set some properties for the second variable
aoNewVars(1).mbsVariableName = "MySecondVar"
aoNewVars(1).meType = EdmVariableType.EdmVarType_Date
'Add the variables
poVarMgr.AddVariables(aoNewVars)
'Show the IDs of the new variables
Dim sMsg As String
sMsg = ""
Dim iIdx As Integer
iIdx = LBound(aoNewVars)
While iIdx <= UBound(aoNewVars)
sMsg = sMsg + aoNewVars(iIdx).mbsVariableName + " has ID " + CStr(aoNewVars(iIdx).mlVariableID) + vbLf
iIdx = iIdx + 1
End While
MessageBox.Show(sMsg)
Button1.Enabled = True
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
'Edit card variables
Try
Dim vault2 As IEdmVault11 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault11)
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
Dim varMgr As IEdmVariableMgr5
varMgr = vault2
If varMgr.EditVariables(Me.Handle.ToInt32()) Then
MessageBox.Show("An update was made!")
Else
MessageBox.Show("No changes were made.")
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
