Create Card View Example (VB.NET)

This example shows how to create a file or folder card view.

NOTE: If using the primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type CreateCardView in Name.
'    c. Click Browse and navigate to the folder where to create the project.
'    d. Click OK.
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with
'       this code.
' 2. Add references to:
'    a. EPDM.Interop.epdm.dll (right-click the project
'       name in the Solution Explorer, click Add > Reference >
'       Assemblies > Framework > Browse and browse to the top folder of your
'       SOLIDWORKS PDM Professional installation, click
'     EPDM.Interop.epdm.dll > Add).
'    b. EPDM.interop.EPDMResultCode.dll (click Browse >
'       EPDM.interop.EPDMResultCode.dll > Add > OK).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Create a folder in the vault.
' 5. Check out a file from the vault in which you created the folder.
' 6. Click Debug > Start Debugging or press F5.
'
' Postconditions:

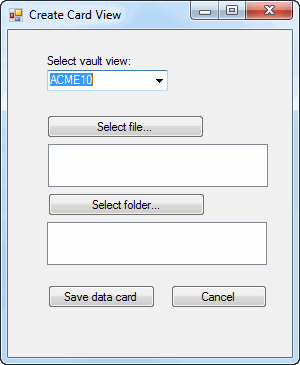

' 1. Displays the Create Card View dialog box.
' 2. Select the vault in which you created a folder and
'    checked out a file.
' 3. Click either:
'    a. Select file.
'    b. In the Select File dialog:
'       1. Click the file checked out in Preconditions step 5.
'       2. Click Open.
'       3. Inspect the message box, then click OK.
'    c. In the file data card, modify a field.
'    d. Click Save data card.
'    e. Check in the file and inspect its data card.
'       - or -
'    a. Select folder.
'    b. In the Select Folder dialog, select the vault folder created in
'       Preconditions step 4 and click OK.
'    c. Inspect the message box, then click OK.
'    d. In the folder data card, click the Edit Values tab.
'    e. Modify a field.
'    f. Click Save data card.
'    g. Inspect the folder card in the vault.
' 4. Close the Create Card View dialog box.
'----------------------------------------------------------------------------
'Form1.vb

Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm

Public Class Form1
    Implements EdmCallback

    Private vault1 As IEdmVault5 = Nothing
    Dim view As IEdmCardView64
    Dim aFile As IEdmFile7
    Dim aFolder As IEdmFolder5

    Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Try
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing

            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SelectFile_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFile.Click
        Try
            File1List.Items.Clear()

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            SelectFolder.Enabled = False

            'Set the initial directory in the Select File dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath

            'Show the Select File dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()

            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
                ' do nothing
            Else
                For Each FileName As String In OpenFileDialog1.FileNames
                    File1List.Items.Add(FileName)
                    aFile = CType(vault1.GetFileFromPath(FileName, aFolder), IEdmFile7)
                    ShowCard(aFolder, aFile.ID)
                Next
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SelectFolder_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFolder.Click
        Try
            Folder1List.Items.Clear()

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            SelectFile.Enabled = False
            aFolder = vault1.BrowseForFolder(Me.Handle.ToInt32(), "Select folder:")
            If Folder1List Is Nothing Then Exit Sub
            Folder1List.Items.Add(aFolder.Name)
            ShowCard(aFolder, 0)

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub SaveCard_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SaveCard.Click
        Try
            Folder1List.Items.Clear()

            Dim vault2 As IEdmVault7 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault7)

            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            view.SaveData()
            SaveCard.Enabled = False

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    'Display the card of the selected file or folder
    Private Sub ShowCard(ByVal folder As IEdmFolder5, ByVal fileID As Integer)

        ' Create the card view interface
        Dim folder10 As IEdmFolder10 = Nothing
        folder10 = DirectCast(folder, IEdmFolder10)
        view = CType(folder10.CreateCardView2(fileID, Me.Handle.ToInt32(), 40, 300, Me, EdmCardViewFlag.EdmCvf_Normal), IEdmCardView64)

        If view Is Nothing Then
            MsgBox("The file does not have a card.")
            Exit Sub
        End If

        view.SetFlagIsFocusOnDataCard(True)

        ' Set input focus to the first control in the card
        view.SetFocus(0)

        ' Enable all controls in the card
        view.Update(EdmCardViewUpdateType.EdmCvut_EnableCtrl)

        ' Get the size needed to display the card
        Dim width As Integer
        Dim height As Integer
        view.GetCardSize(width, height)

        ' Resize the form window to make room for the card
        Me.Width = (width + 100)
        Me.Height = (height + 400)
        view.ShowWindow(True)

        Dim ID As Integer
        Dim folderName As String
        Dim vaultName As String
        Dim vaultObject As IEdmVault5

        ' Get some folder information
        ID = folder10.ID
        folderName = folder10.Name
        vaultObject = folder10.Vault
        vaultName = vaultObject.Name
        MessageBox.Show("Database ID: " + ID.ToString() + "; Vault name: " + vaultName + "; Folder name: " + folderName)

        folder10.Refresh()

        SaveCard.Enabled = False
    End Sub

    Private Sub Cancel_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Cancel.Click
        view.OnCancel()
        SaveCard.Enabled = False
        SelectFile.Enabled = True
        SelectFolder.Enabled = True
        view.ShowWindow(False)
    End Sub

    Private Sub EdmCallback_SetModifiedFlag() Implements EdmCallback.SetModifiedFlag
        SaveCard.Enabled = True
    End Sub

    Private Sub EdmCallback_SetProgressPos(ByVal lPos As Integer) Implements EdmCallback.SetProgressPos
    End Sub

    Private Sub EdmCallback_SetProgressRange(ByVal lMin As Integer, ByVal lMax As Integer) Implements EdmCallback.SetProgressRange
    End Sub

    Private Sub EdmCallback_SetStatusMessage(ByVal bsMessage As String) Implements EdmCallback.SetStatusMessage
    End Sub

End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.SelectFile = New System.Windows.Forms.Button()
        Me.File1List = New System.Windows.Forms.ListBox()
        Me.SaveCard = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.SelectFolder = New System.Windows.Forms.Button()
        Me.Folder1List = New System.Windows.Forms.ListBox()
        Me.Cancel = New System.Windows.Forms.Button()
        Me.SuspendLayout()
        '
        'VaultsLabel
        '
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(36, 24)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(39, 40)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'SelectFile
        '
        Me.SelectFile.Location = New System.Drawing.Point(39, 85)
        Me.SelectFile.Name = "SelectFile"
        Me.SelectFile.Size = New System.Drawing.Size(157, 23)
        Me.SelectFile.TabIndex = 2
        Me.SelectFile.Text = "Select file..."
        Me.SelectFile.UseVisualStyleBackColor = True
        '
        'File1List
        '
        Me.File1List.FormattingEnabled = True
        Me.File1List.HorizontalScrollbar = True
        Me.File1List.Location = New System.Drawing.Point(40, 114)
        Me.File1List.Name = "File1List"
        Me.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended
        Me.File1List.Size = New System.Drawing.Size(220, 43)
        Me.File1List.TabIndex = 4
        '
        'SaveCard
        '
        Me.SaveCard.Location = New System.Drawing.Point(40, 255)
        Me.SaveCard.Name = "SaveCard"
        Me.SaveCard.Size = New System.Drawing.Size(107, 23)
        Me.SaveCard.TabIndex = 6
        Me.SaveCard.Text = "Save data card"
        Me.SaveCard.UseVisualStyleBackColor = True
        '
        'OpenFileDialog1
        '
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Title = "Select File"
        '
        'SelectFolder
        '
        Me.SelectFolder.Location = New System.Drawing.Point(40, 163)
        Me.SelectFolder.Name = "SelectFolder"
        Me.SelectFolder.Size = New System.Drawing.Size(157, 23)
        Me.SelectFolder.TabIndex = 7
        Me.SelectFolder.Text = "Select folder..."
        Me.SelectFolder.UseVisualStyleBackColor = True
        '
        'Folder1List
        '
        Me.Folder1List.FormattingEnabled = True
        Me.Folder1List.Location = New System.Drawing.Point(39, 192)
        Me.Folder1List.Name = "Folder1List"
        Me.Folder1List.Size = New System.Drawing.Size(220, 43)
        Me.Folder1List.TabIndex = 8
        '
        'Cancel
        '
        Me.Cancel.Location = New System.Drawing.Point(163, 255)
        Me.Cancel.Name = "Cancel"
        Me.Cancel.Size = New System.Drawing.Size(96, 23)
        Me.Cancel.TabIndex = 9
        Me.Cancel.Text = "Cancel"
        Me.Cancel.UseVisualStyleBackColor = True
        '
        'Form1
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(284, 327)
        Me.Controls.Add(Me.Cancel)
        Me.Controls.Add(Me.Folder1List)
        Me.Controls.Add(Me.SelectFolder)
        Me.Controls.Add(Me.SaveCard)
        Me.Controls.Add(Me.File1List)
        Me.Controls.Add(Me.SelectFile)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.VaultsLabel)
        Me.Name = "Form1"
        Me.Text = "Create Card View"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents SelectFile As System.Windows.Forms.Button
    Friend WithEvents File1List As System.Windows.Forms.ListBox
    Friend WithEvents SaveCard As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
    Friend WithEvents SelectFolder As System.Windows.Forms.Button
    Friend WithEvents Folder1List As System.Windows.Forms.ListBox
    Friend WithEvents Cancel As System.Windows.Forms.Button

End Class

Search 'Create Card View Example (VB.NET)' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		Create Card View Example (VB.NET)
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: API Help (English only) 2021 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
