Task Add-in Sample
The following shows the entire source code of a task add-in
written in VB.NET. The add-in:
- Implements
IEdmAddIn5.
- Creates custom pages in the Task property dialog box.
- Customizes the task details page.
- Displays a user interface on launch.
NOTE: To populate the GUID attribute below, click Tools > Create GUID
in the IDE, select GUID Format 6, click Copy, and click Exit.
Replace <Guid("")>
with the copied string.
|
Imports EPDM.Interop.epdm
Imports System.Runtime.InteropServices
<Guid("")> _
<ComVisible(True)> _
Public Class TaskAddIn
Implements
IEdmAddIn5
Public Sub GetAddInInfo(ByRef poInfo As EdmAddInInfo, ByVal poVault
As IEdmVault5,
ByVal poCmdMgr As
IEdmCmdMgr5)
Implements IEdmAddIn5.GetAddInInfo
On Error GoTo ErrHand
' Fill in the add-in's description
poInfo.mbsAddInName = "Task Test Add-in"
poInfo.mbsCompany = "SOLIDWORKS"
poInfo.mbsDescription = "Add-in used to test the task execution system"
poInfo.mlAddInVersion = 1
' Minimum SOLIDWORKS PDM Professional version
needed for VB.NET add-ins is 2010
poInfo.mlRequiredVersionMajor = 10
poInfo.mlRequiredVersionMinor = 0
'Register this add-in as a task add-in
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskRun)
'Register this add-in as being able to append
its own property pages in the Administration tool
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskSetup)
'Register this add-in to be called when the
task is launched on the client computer
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskLaunch)
'Register this add-in to provide extra details
in the Details dialog box in the task list in the Administration tool
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskDetails)
'Register this add-in to be called when the
launch dialog box is closed
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskLaunchButton)
'Register this add-in to be called when the
set-up wizard is closed
poCmdMgr.AddHook(EdmCmdType.EdmCmd_TaskSetupButton)
Exit Sub
ErrHand:
Dim v11 As
IEdmVault11
v11 = poVault
MsgBox(v11.GetErrorMessage(Err.Number))
End Sub
|
Private Sub
OnTaskDetails(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
Dim inst As
IEdmTaskInstance
inst = poCmd.mpoExtra
'Create a custom page in the task properties
dialog box; TaskDetailsPage is a
'user control; TaskDetailsPage::LoadData fills in some edit boxes with
'values from IEdmTaskInstance::GetValEx
Dim myPage As TaskDetailsPage
myPage = New TaskDetailsPage
myPage.CreateControl()
poCmd.mpoExtra = myPage
poCmd.mlParentWnd = myPage.Handle.ToInt32
poCmd.mbsComment = "My Test Page"
myPage.LoadData(inst)
End Sub
|
Private Sub
OnTaskLaunch(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
'Display a message box
where the user types data that is
'passed
to the task add-in via IEdmTaskInstance::SetValEx
Dim v11 As
IEdmVault11
v11 = poCmd.mpoVault
If v11.MsgBox(poCmd.mlParentWnd, "Hello!" + vbLf + "Are you sure you want
to launch the test task?", EdmMBoxType.EdmMbt_YesNo) <> EdmMBoxResult.EdmMbr_Yes
Then
poCmd.mbCancel = True
Exit Sub
End If
'Get the property interface used to access the
framework
Dim inst As
IEdmTaskInstance
inst = poCmd.mpoExtra
inst.SetValEx("MyLaunchVar", "A launch value")
End Sub
|
Private Sub OnTaskLaunchButton(ByRef
poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
'If displaying a card for editing,
this is
'called when the user clicks OK or Cancel in the
launch dialog box
End Sub
|
Private Sub
OnTaskRun(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
'Get the property interface used to access the
framework
Dim inst As
IEdmTaskInstance
inst = poCmd.mpoExtra
On Error GoTo ErrHand
'Inform the framework that the task has started
inst.SetStatus(EdmTaskStatus.EdmTaskStat_Running)
'Format a message to be displayed in the task
list
Dim msg As String
msg = "Test is running:"
msg = msg + " MyTestSetupVar='" + CStr(inst.GetValEx("MyTestSetupVar"))
msg = msg + "' MyLaunchVar='" + inst.GetValEx("MyLaunchVar")
msg = msg + "' Idx="
'This is the main worker loop that does all
of the important work;
'it just beeps and sleeps
Dim idx As Integer
idx = 1
Dim maxPos As Integer
maxPos = 200
inst.SetProgressRange(maxPos, 0, msg + CStr(idx))
While idx < maxPos
'Update progress bar that shows in the
task list
inst.SetProgressPos(idx, msg + CStr(idx))
idx = idx + 1
'Do some important work here
System.Media.SystemSounds.Beep.Play()
System.Threading.Thread.Sleep(60000 / maxPos)
'Handle the cancel button in the task
list
If inst.GetStatus() = EdmTaskStatus.EdmTaskStat_CancelPending Then
inst.SetStatus(EdmTaskStatus.EdmTaskStat_DoneCancelled)
Exit Sub
End If
'Handle temporary suspension of the task
If inst.GetStatus() = EdmTaskStatus.EdmTaskStat_SuspensionPending
Then
inst.SetStatus(EdmTaskStatus.EdmTaskStat_Suspended)
While inst.GetStatus() = EdmTaskStatus.EdmTaskStat_Suspended
System.Threading.Thread.Sleep(1000)
End While
If inst.GetStatus() = EdmTaskStatus.EdmTaskStat_ResumePending
Then
inst.SetStatus(EdmTaskStatus.EdmTaskStat_Running)
End If
End If
End While
'Inform the framework that the task has successfully
completed
inst.SetStatus(EdmTaskStatus.EdmTaskStat_DoneOK)
Exit Sub
ErrHand:
'Return errors to the framework by failing the
task
inst.SetStatus(EdmTaskStatus.EdmTaskStat_DoneFailed, Err.Number,
"The test task failed!")
End Sub
|
'Store the custom set-up page here so it
can be accessed from both OnTaskSetup and OnTaskSetupButton
Dim currentSetupPage As SetupPage |
Private Sub
OnTaskSetup(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
'Get the property interface used to access the
framework
Dim props As
IEdmTaskProperties
props = poCmd.mpoExtra
'Turn on some properties, e.g., the task can
be launched during a
'state change, can
extend the details page, is called when the
'task is
launched, and supports scheduling
props.TaskFlags = EdmTaskFlag.EdmTask_SupportsChangeState
+ EdmTaskFlag.EdmTask_SupportsDetails + EdmTaskFlag.EdmTask_SupportsInitExec
+ EdmTaskFlag.EdmTask_SupportsScheduling
'Set menu commands that launch this task from
File Explorer
Dim cmds(0) As EdmTaskMenuCmd
cmds(0).mbsMenuString = "Run the test task"
cmds(0).mbsStatusBarHelp = "This command runs the task add-in"
cmds(0).mlCmdID = 1
cmds(0).mlEdmMenuFlags = EdmMenuFlags.EdmMenu_Nothing
props.SetMenuCmds(cmds)
'Add a custom setup page; SetupPage is a user
control with an
'edit box; SetupPage::LoadData populates the edit box from a
'variable in IEdmTaskProperties; saving of properties is handled
'by OnTaskSetupButton
currentSetupPage = New SetupPage
currentSetupPage.CreateControl()
currentSetupPage.LoadData(poCmd)
Dim pages(0) As EdmTaskSetupPage
pages(0).mbsPageName = "Test Add-in page"
pages(0).mlPageHwnd = currentSetupPage.Handle.ToInt32
pages(0).mpoPageImpl = currentSetupPage
props.SetSetupPages(pages)
End Sub
|
'Called when the user clicks OK or Cancel
in the
'task property dialog box
Private Sub OnTaskSetupButton(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
'The custom set-up page in currentSetupPage
'was created in method OnTaskSetup;
'StoreData saves the contents of the edit
'box in the user control
to
'IEdmTaskProperties in poCmd.mpoExtra
If poCmd.mbsComment = "OK" And Not currentSetupPage Is
Nothing Then
currentSetupPage.StoreData(poCmd)
End If
currentSetupPage = Nothing
End Sub
|
'Main entry point of the add-in; called
by SOLIDWORKS
'PDM Professional for all task-related events
Public Sub OnCmd(ByRef poCmd As EdmCmd,
ByRef ppoData As EdmCmdData[])
Implements IEdmAddIn5.OnCmd
On Error GoTo ErrHand
'Check the command type and call the right procedure
Select Case poCmd.meCmdType
Case EdmCmdType.EdmCmd_TaskDetails
OnTaskDetails(poCmd, ppoData)
Case EdmCmdType.EdmCmd_TaskLaunch
OnTaskLaunch(poCmd, ppoData)
Case EdmCmdType.EdmCmd_TaskLaunchButton
OnTaskLaunchButton(poCmd, ppoData)
Case EdmCmdType.EdmCmd_TaskRun
OnTaskRun(poCmd, ppoData)
Case EdmCmdType.EdmCmd_TaskSetup
OnTaskSetup(poCmd, ppoData)
Case EdmCmdType.EdmCmd_TaskSetupButton
OnTaskSetupButton(poCmd, ppoData)
End Select
Exit Sub
ErrHand:
Dim v11 As
IEdmVault11
v11 = poCmd.mpoVault
MsgBox(v11.GetErrorMessage(Err.Number))
End Sub
End Class
|
The following is a resource template of the custom set-up page that is displayed
in the Task property dialog box by TaskAddIn::OnTaskSetup.
It is a user control in Visual Studio with an edit box named TextBox1 and a
button named TestButton.
The code behind the custom set-up page is as follows.
Imports EPDM.Interop.epdm
Public Class SetupPage
'Button handler for a button on the page
Private Sub TestButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs)
Handles TestButton.Click
MsgBox("You pressed the test button")
End Sub
Public Sub LoadData(ByRef poCmd As
EdmCmd)
'Get the property interface used to
access the framework
Dim props As
IEdmTaskProperties
props = poCmd.mpoExtra
'Populate the edit box from a variable
TextBox1.Text = props.GetValEx("MyTestSetupVar")
End Sub
Public Sub StoreData(ByRef
poCmd As EdmCmd)
'Get the property interface used to access the
framework
Dim props As
IEdmTaskProperties
props = poCmd.mpoExtra
'Make sure the user has typed a value in the
edit box
If TextBox1.Text = "" Then
MsgBox("Enter a test value for the add-in!")
poCmd.mbCancel = True
Exit Sub
End If
'Save the value entered by the user
props.SetValEx("MyTestSetupVar", TextBox1.Text)
End Sub
End Class
The following
is the resource
template of the extra details page added by TaskAddIn::OnTaskDetails.
It is a user control in Visual Studio that displays two task variables:
The code behind the extra details
page:
Imports EPDM.Interop.epdm
Public Class TaskDetailsPage
Public Sub LoadData(ByRef inst As IEdmTaskInstance)
'Populate the editboxes from the variables in the task
TextBoxSetupVar.Text = CStr(inst.GetValEx("MyTestSetupVar"))
TextBoxLaunchVar.Text = CStr(inst.GetValEx("MyLaunchVar"))
End Sub
End Class

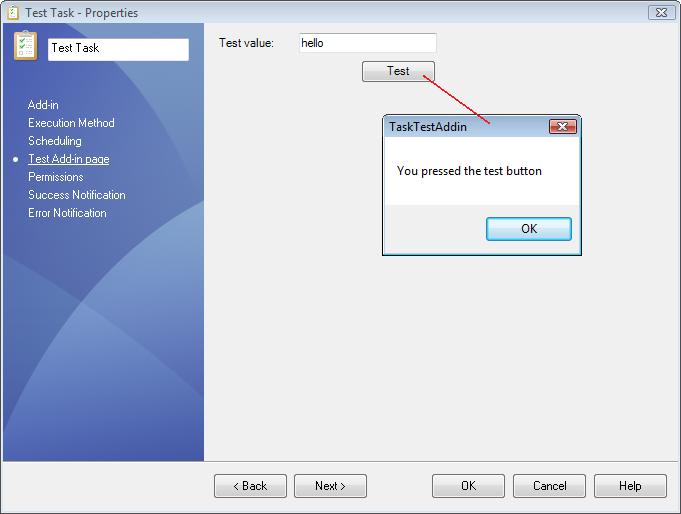

The following is the set-up page
when the add-in is used in a task.

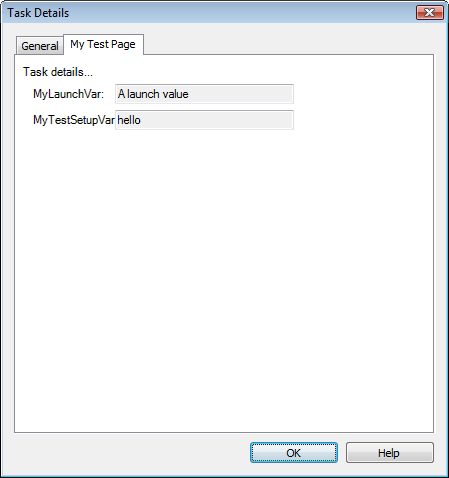

The following is the task details
page when opened from the task list.

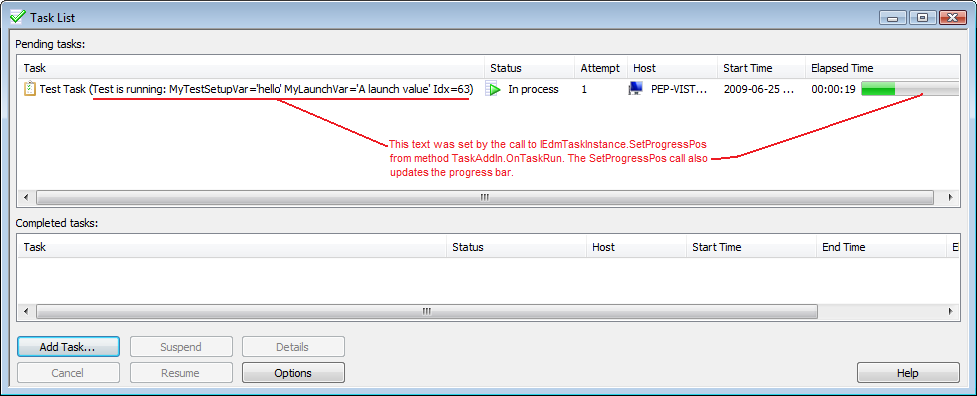

The following is the task list during task execution.
