Update References Example (C#)
This example shows how to update the references of a file
in a vault.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual C# > Windows Forms Application.
// b. Type UpdateReferencesCSharp in Name.
// c. Click Browse and navigate to the folder where to create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form, replace the code in Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and click
// EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 4. Click Debug > Start Debugging or press F5.
//
// Postconditions:

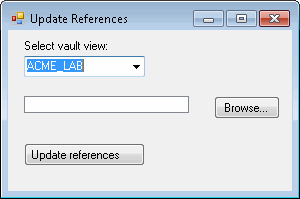

// 1. Displays your Update References dialog box.
// 2. Select a vault view.
// 3. Click Browse.
// 4. Displays the Select a file dialog box.
// a. Click a file in the selected vault.
// b. Click Open.
// The selected file's path and file name appear
// in the Select a file dialog box.
// 5. Click Update references.
// 6. Initializes and displays SOLIDWORKS PDM Professional's Update References
// dialog box, which shows the name of the selected file whose file references
// to update and the names of the file references, if any.
// 7. Click Close.
// 8. Close your Update References dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace UpdateReferencesCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
IEdmVault5 vault1 = null;
IEdmFile5 aFile;
string fileName;
private void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void UpdateReferencesButton_Click(System.Object sender, System.EventArgs e)
{
try
{
//Only create a new vault object
//if one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Update the references for the selected document
//and show SOLIDWORKS PDM Professional Update References dialog
IEdmUpdateReferences updateRefs = default(IEdmUpdateReferences);
IEdmVault7 vault2 = (IEdmVault7)vault1;
updateRefs = (IEdmUpdateReferences)vault2.CreateUtility(EdmUtility.EdmUtil_UpdateReferences);
updateRefs.AddFile(fileName);
updateRefs.ShowDlg(this.Handle.ToInt32(), 0, 0);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try
{
//If one hasn't been created yet
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Set the initial directory in the Select a file dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select a file dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
//Do nothing
}
else
{
//Browse for a file whose next possible state
//transitions to get
fileName = OpenFileDialog1.FileName;
FileListBox.Items.Add(fileName);
IEdmFolder5 retFolder = default(IEdmFolder5);
aFile = vault1.GetFileFromPath(fileName, out retFolder);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
namespace UpdateReferencesCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.Label1 = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.FileListBox = new System.Windows.Forms.ListBox();
this.BrowseButton = new System.Windows.Forms.Button();
this.UpdateReferencesButton = new System.Windows.Forms.Button();
this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
this.SuspendLayout();
//
// Label1
//
this.Label1.AutoSize = true;
this.Label1.Location = new System.Drawing.Point(13, 9);
this.Label1.Name = "Label1";
this.Label1.Size = new System.Drawing.Size(91, 13);
this.Label1.TabIndex = 0;
this.Label1.Text = "Select vault view:";
//
// VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(16, 26);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
// FileListBox
//
this.FileListBox.FormattingEnabled = true;
this.FileListBox.Location = new System.Drawing.Point(16, 66);
this.FileListBox.Name = "FileListBox";
this.FileListBox.Size = new System.Drawing.Size(165, 17);
this.FileListBox.TabIndex = 2;
//
// BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(206, 66);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(66, 23);
this.BrowseButton.TabIndex = 3;
this.BrowseButton.Text = "Browse...";
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click += new System.EventHandler(this.BrowseButton_Click);
//
// UpdateReferencesButton
//
this.UpdateReferencesButton.Location = new System.Drawing.Point(16, 113);
this.UpdateReferencesButton.Name = "UpdateReferencesButton";
this.UpdateReferencesButton.Size = new System.Drawing.Size(121, 23);
this.UpdateReferencesButton.TabIndex = 4;
this.UpdateReferencesButton.Text = "Update references";
this.UpdateReferencesButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft;
this.UpdateReferencesButton.UseVisualStyleBackColor = true;
this.UpdateReferencesButton.Click += new System.EventHandler(this.UpdateReferencesButton_Click);
//
// OpenFileDialog1
//
this.OpenFileDialog1.FileName = "OpenFileDialog1";
this.OpenFileDialog1.Multiselect = true;
this.OpenFileDialog1.Title = "Select a file";
//
// Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 161);
this.Controls.Add(this.UpdateReferencesButton);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.FileListBox);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.Label1);
this.Name = "Form1";
this.Text = "Update References";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
private System.Windows.Forms.Label Label1;
private System.Windows.Forms.ComboBox VaultsComboBox;
private System.Windows.Forms.ListBox FileListBox;
private System.Windows.Forms.Button BrowseButton;
private System.Windows.Forms.Button UpdateReferencesButton;
private System.Windows.Forms.OpenFileDialog OpenFileDialog1;
}
}
