Access File Card Variables Example (C#)
This example shows how to access file card variables.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual
C# > Windows Forms Application.
// b. Type CardVars_CSharp in Name.
// c. Click Browse and navigate to the folder where to create
// the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form,
replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and click
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:
// 1.

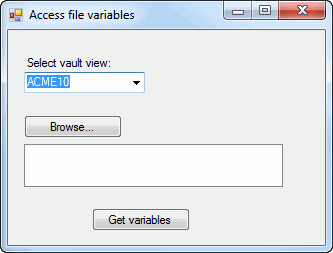

Displays the Access file variables dialog box.
//
a. Select a vault view.
//
b. Click Browse.
//
1. Locate and click a file in the vault.
// 2. Click Open.
// c. Click Get variables.
// 1. Checks out the selected file to the
root folder of the vault.
// 2. Displays a message box with all of the
card variables that can be
// updated for the selected file
in configuration, @.
// d. Click OK.
// e. Undoes the check-out of the selected
file.
// 2. Close the Access
file variables dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace CardVars_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try
{
ListBox.Items.Clear();
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Set the initial directory in the Open dialog
OpenFileDialog.InitialDirectory = vault1.RootFolderPath;
//Show the Open dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog.ShowDialog();
//If the user didn't click Open, exit
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
return;
}
foreach (string FileName in OpenFileDialog.FileNames)
{
ListBox.Items.Add(FileName);
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void GetVars_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmFile5 aFile = default(IEdmFile5);
IEdmFolder5 ppoRetParentFolder = null;
aFile = vault2.GetFileFromPath(ListBox.Items[0].ToString(), out ppoRetParentFolder);
//Get card variables only from a file checked into the vault
if (!aFile.IsLocked)
{
aFile.LockFile(ppoRetParentFolder.ID, this.Handle.ToInt32(), (int)EdmLockFlag.EdmLock_Simple);
IEdmEnumeratorVariable5 varEnum = default(IEdmEnumeratorVariable5);
varEnum = aFile.GetEnumeratorVariable();
object[] valueList = null;
varEnum.GetUpdateVars(aFile.LockedInFolderID, out valueList);
int idx = 0;
idx = Information.LBound(valueList);
int upper = 0;
upper = Information.UBound(valueList);
string msg = null;
msg = "Card variables for " + aFile.Name + " in configuration, @:" + "\n" + "\n";
IEdmVariableMgr5 varMgr = default(IEdmVariableMgr5);
varMgr = (IEdmVariableMgr5)aFile.Vault;
IEdmVariable5 var = default(IEdmVariable5);
IEdmVariableValue6 value = default(IEdmVariableValue6);
while (idx <= upper)
{
value = (IEdmVariableValue6)valueList[idx];
idx = idx + 1;
var = varMgr.GetVariable(value.VariableID);
msg = msg + value.VariableName + " = > " + value.GetValue("@").ToString() + "\n";
msg = msg + "EdmVariableFlags: " + var.Flags + ", EdmVariableType: " + var.VariableType + "\n" + "\n";
}
MessageBox.Show(msg);
aFile.UndoLockFile(this.Handle.ToInt32());
}
else
{
//User selected a checked-out file
MessageBox.Show("Please select a checked-in file.");
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
