Batch Get and Set Reference Variables Example (VB.NET)
This example shows how to get and set reference variables in one batch.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type BatchGetSetRefVariables in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the
form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Open the Administration tool.
' a. Log into a vault.
' b. Double-click Bill of Materials > BOM.
' c. Click Description in the Columns list.
' d. Select Look for variable in reference specific
values.
' e. Click OK.
' 5. Open File Explorer on a vault view.
' 6. Ensure that an assembly and its referenced parts reside in the
vault.
' 7. Check out the assembly.
' 8. Click the Bill of Materials tab in the vault view.
' 9. Select Latest in the Reference Version dropdown.
' 10. Select @ in the Configuration dropdown.
' 11. Type a description in Description for each part in the assembly.
' 12. Click Save on the Bill of Materials toolbar and close the vault
view.
' 13. Click Debug > Start Debugging or press F5.
'
' Postconditions:

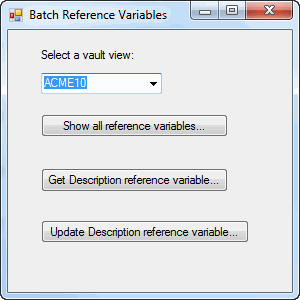

' 1. The Batch Reference Variables dialog box displays.
' a. Select a vault view.
' b. Click Show
all reference variables.
' 1. In the Select Parent File dialog,
select the assembly file identified
' in Preconditions
step 5 and click Open.
' 2. In the Select Child File dialog,
select a part file referenced by the
' assembly file and click Open.
' Displays all of
the reference variables for all configurations.
'
3. Click OK in the dialog box.
'
c. Click Get Description reference variable.
' 1.
In the Select Parent File dialog, select the assembly
file identified
' in Preconditions
step 5 and click Open.
' 2.
In the Select Child File dialog, select a part file
referenced by the
' assembly file and click Open.
' Displays the
current value of reference variable, Description.
'
3. Click OK in the dialog box.
' d. Click Update Description reference variable.
' 1.
In the Select Parent File dialog, select the assembly
file identified
' in Preconditions
step 5 and click Open.
' 2.
In the Select Child File dialog, select a part file
referenced by the
' assembly file and click Open.
' 3. Type a new description and click
OK.
'
4. Click OK in the dialog box.
' 2. Close the Batch Reference Variables dialog box.
' 3. Open the vault view and click the assembly.
' 4. Click the Bill of Materials tab.
' 5. Select @ in the Configuration dropdown.
' 6. Observe the text in the Description column for the updated
part.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault As IEdmVault5 = Nothing
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
vault = New EdmVault5()
Dim vault1 As IEdmVault8 = DirectCast(vault, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault1.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
ShowRefVars(vault)
End Sub
Public Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
ShowRefDescription(vault)
End Sub
Public Sub Button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.Click
UpdateRefDescription(vault)
End Sub
Private Sub ShowRefVars(ByVal vault As IEdmVault11)
If vault Is Nothing Then
vault = New EdmVault5()
End If
If Not vault.IsLoggedIn Then
vault.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Let the user select the parent file
Dim pathList As IEdmStrLst5
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:")
If pathList Is Nothing Then Exit Sub
Dim parent As IEdmFile8
parent = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Let the user select the child file
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:")
If pathList Is Nothing Then Exit Sub
Dim child As IEdmFile8
child = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Get reference variables in the latest version
Dim batch As IEdmBatchRefVars
batch = vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars)
Dim vars() As EdmRefVar
vars = Nothing
batch.GetAllRefVars(vars, parent.ID, 0, child.ID)
'Show the result
Dim msg As String
msg = "Reference variables:" + vbLf + vbLf
Dim idx As Integer
idx = LBound(vars)
While idx <= UBound(vars)
msg = msg + "Parent ID: " + CStr(vars(idx).mlParentFileID) + vbLf
msg = msg + "Parent cfg: " + vars(idx).mbsParentCfgName + vbLf
msg = msg + "Child ID: " + CStr(vars(idx).mlChildFileID) + vbLf
msg = msg + "Child cfg: " + vars(idx).mbsChildCfgName + vbLf
msg = msg + "Status: " + vault.GetErrorMessage(vars(idx).mhResult) + vbLf
msg = msg + "Variable ID: " + CStr(vars(idx).mlVarID) + vbLf
msg = msg + "Value: " + CStr(vars(idx).moValue) + vbLf
msg = msg + vbLf
idx = idx + 1
End While
MsgBox(msg)
End Sub
Private Sub ShowRefDescription(ByVal vault As IEdmVault11)
If vault Is Nothing Then
vault = New EdmVault5()
End If
If Not vault.IsLoggedIn Then
vault.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Let the user select the parent file
Dim pathList As IEdmStrLst5
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:")
If pathList Is Nothing Then Exit Sub
Dim parent As IEdmFile8
parent = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Let the user select the child file
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:")
If pathList Is Nothing Then Exit Sub
Dim child As IEdmFile8
child = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Get the Description variable
Dim varMgr As IEdmVariableMgr6
varMgr = vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr)
Dim desc As IEdmVariable5
desc = varMgr.GetVariable("Description")
If desc Is Nothing Then Exit Sub
'Get reference variables in the latest version
Dim batch As IEdmBatchRefVars
batch = vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars)
Dim vars(0) As EdmRefVar
vars(0).mlParentFileID = parent.ID
vars(0).mlChildFileID = child.ID
vars(0).mbsChildCfgName = "@"
vars(0).mbsParentCfgName = "@"
vars(0).mlParentVersion = 0
vars(0).mlVarID = desc.ID
batch.GetRefVars(vars)
'Show the result to the caller
Dim msg As String
msg = "Reference variable: " + "Description" + vbLf + vbLf
msg = msg + "Status: " + vault.GetErrorMessage(vars(0).mhResult) + vbLf
msg = msg + "Value: " + CStr(vars(0).moValue)
MsgBox(msg)
End Sub
Private Sub UpdateRefDescription(ByVal vault As IEdmVault11)
If vault Is Nothing Then
vault = New EdmVault5()
End If
If Not vault.IsLoggedIn Then
vault.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Let the user select the parent file
Dim pathList As IEdmStrLst5
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:")
If pathList Is Nothing Then Exit Sub
Dim parent As IEdmFile8
parent = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Let the user select the child file
pathList = vault.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:")
If pathList Is Nothing Then Exit Sub
Dim child As IEdmFile8
child = vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition))
'Get the Description variable
Dim varMgr As IEdmVariableMgr6
varMgr = vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr)
Dim desc As IEdmVariable5
desc = varMgr.GetVariable("Description")
If desc Is Nothing Then Exit Sub
'Get reference variables in the latest version
Dim batch As IEdmBatchRefVars
batch = vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars)
Dim vars(0) As EdmRefVar
vars(0).mlParentFileID = parent.ID
vars(0).mlChildFileID = child.ID
vars(0).mbsChildCfgName = "@"
vars(0).mbsParentCfgName = "@"
vars(0).mlParentVersion = 0
vars(0).mlVarID = desc.ID
batch.GetRefVars(vars)
'Let the user edit the Description variable
vars(0).moValue = InputBox("Enter new description:", "Update Reference Variable", vars(0).moValue)
'Store the value back in the reference
batch.SetRefVars(vars)
MsgBox(vault.GetErrorMessage(vars(0).mhResult))
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.Button1 = New System.Windows.Forms.Button()
Me.Button2 = New System.Windows.Forms.Button()
Me.Button3 = New System.Windows.Forms.Button()
Me.SuspendLayout()
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(33, 43)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 0
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(30, 18)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(100, 13)
Me.VaultsLabel.TabIndex = 1
Me.VaultsLabel.Text = "Select a vault view:"
'
'Button1
'
Me.Button1.Location = New System.Drawing.Point(33, 84)
Me.Button1.Name = "Button1"
Me.Button1.Size = New System.Drawing.Size(187, 23)
Me.Button1.TabIndex = 2
Me.Button1.Text = "Show all reference variables..."
Me.Button1.UseVisualStyleBackColor = True
'
'Button2
'
Me.Button2.Location = New System.Drawing.Point(33, 138)
Me.Button2.Name = "Button2"
Me.Button2.Size = New System.Drawing.Size(187, 24)
Me.Button2.TabIndex = 3
Me.Button2.Text = "Get Description reference variable..."
Me.Button2.UseVisualStyleBackColor = True
'
'Button3
'
Me.Button3.Location = New System.Drawing.Point(33, 190)
Me.Button3.Name = "Button3"
Me.Button3.Size = New System.Drawing.Size(208, 23)
Me.Button3.TabIndex = 4
Me.Button3.Text = "Update Description reference variable..."
Me.Button3.UseVisualStyleBackColor = True
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(284, 262)
Me.Controls.Add(Me.Button3)
Me.Controls.Add(Me.Button2)
Me.Controls.Add(Me.Button1)
Me.Controls.Add(Me.VaultsLabel)
Me.Controls.Add(Me.VaultsComboBox)
Me.Name = "Form1"
Me.Text = "Batch Reference Variables"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents Button1 As System.Windows.Forms.Button
Friend WithEvents Button2 As System.Windows.Forms.Button
Friend WithEvents Button3 As System.Windows.Forms.Button
End Class
Back to top
