Create Labels on Folders Example (C#)
This example shows how to create a label on a folder and
all of its subfolders and files.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual
C# > Windows Forms Application.
// b. Type CreateLabel_CSharp in Name.
// c. Click Browse and navigate to the folder where to create
// the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with this code.
// g. To create the form,
replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference, click
// Assemblies > Framework in the left-side panel, browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and click
// EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
// Embed Interop Types to False to handle methods that pass arrays of
// structures.
// 4. Click Debug > Start Debugging or press F5.
//
// Postconditions:

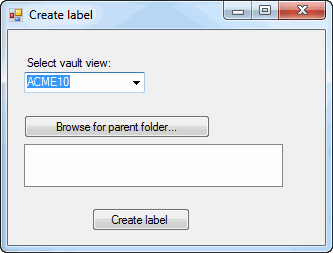

// 1. Displays the Create label dialog box.
// a. Select a vault view.
// b. Click Browse for
parent folder.
// 1. Locate and click a
folder
in the vault.
// 2. Click OK.
// c. Click Create label.
// 1. Creates label, MyCompany,
on the
selected folder and all of its
// subfolders and files.
// 2. Displays a message box with information
about all of the labels
//
on the selected folder.
// 3. Click OK.
// 2. Close the Create label dialog box.
//
3. To verify label creation on a folder or file, open a view on the
// selected vault, click either a folder or a file, and click
// Display > History.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace CreateLabel_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void BrowseButton_Click(System.Object sender, System.EventArgs e)
{
try
{
ListBox.Items.Clear();
if (vault1 == null)
{
vault1 = new EdmVault5();
}
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Show the Browse For Folder dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = FolderBrowserDialog1.ShowDialog();
//If the user didn't click OK, exit
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
return;
}
ListBox.Items.Add(FolderBrowserDialog1.SelectedPath);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void CreateLabel_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
//Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
IEdmFolder5 parentFolder = default(IEdmFolder5);
parentFolder = vault2.GetFolderFromPath(ListBox.Items[0].ToString());
int labelID = 0;
string labelName = "MyCompany";
labelID = parentFolder.CreateLabel(labelName, "Label set by test program", true);
IEdmPos5 pos = default(IEdmPos5);
IEdmLabel5 label = default(IEdmLabel5);
string message = null;
message = "The following labels have been set on folder " + parentFolder.Name + ":" + "\n";
pos = parentFolder.GetFirstLabelPosition();
while (!pos.IsNull)
{
label = (IEdmLabel5)parentFolder.GetNextLabel(pos);
message = message + label.Name + " (" + label.Comment + ")" + " created by " + label.User.Name + "(ID = " + label.UserID + ")" + " at " + label.Time + "\n";
}
MessageBox.Show(message);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
Back to top
//Form1.Designer.cs
namespace CreateLabel_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.BrowseButton = new System.Windows.Forms.Button();
this.ListBox = new System.Windows.Forms.ListBox();
this.CreateLabel = new System.Windows.Forms.Button();
this.FolderBrowserDialog1 = new System.Windows.Forms.FolderBrowserDialog();
this.SuspendLayout();
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(13, 26);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(94, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = " Select vault view:";
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(16, 42);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
//BrowseButton
//
this.BrowseButton.Location = new System.Drawing.Point(16, 85);
this.BrowseButton.Name = "BrowseButton";
this.BrowseButton.Size = new System.Drawing.Size(186, 23);
this.BrowseButton.TabIndex = 3;
this.BrowseButton.Text = "Browse for parent folder...";
this.BrowseButton.UseVisualStyleBackColor = true;
this.BrowseButton.Click +=new System.EventHandler(BrowseButton_Click);
//
//ListBox
//
this.ListBox.FormattingEnabled = true;
this.ListBox.HorizontalScrollbar = true;
this.ListBox.Location = new System.Drawing.Point(16, 114);
this.ListBox.Name = "ListBox";
this.ListBox.Size = new System.Drawing.Size(259, 43);
this.ListBox.TabIndex = 4;
//
//CreateLabel
//
this.CreateLabel.Location = new System.Drawing.Point(84, 178);
this.CreateLabel.Name = "CreateLabel";
this.CreateLabel.Size = new System.Drawing.Size(98, 23);
this.CreateLabel.TabIndex = 5;
this.CreateLabel.Text = "Create label";
this.CreateLabel.UseVisualStyleBackColor = true;
this.CreateLabel.Click +=new System.EventHandler(CreateLabel_Click);
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(317, 215);
this.Controls.Add(this.CreateLabel);
this.Controls.Add(this.ListBox);
this.Controls.Add(this.BrowseButton);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Create label";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
#endregion
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button BrowseButton;
internal System.Windows.Forms.ListBox ListBox;
internal System.Windows.Forms.Button CreateLabel;
internal System.Windows.Forms.FolderBrowserDialog FolderBrowserDialog1;
}
}
