Generate Configuration Values Example (VB.NET)
This example shows how to copy card control variable values from one
configuration to another.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type Files in Name.
' c. Click Browse and navigate to the folder where to create
' the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form,
replace the code in Form1.Designer.vb with this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Check out a file that has a data card with two or more configurations.
' 5. Modify a control variable in the @ configuration.
' 6. Click Debug > Start Debugging or press F5.
'
' Postconditions:

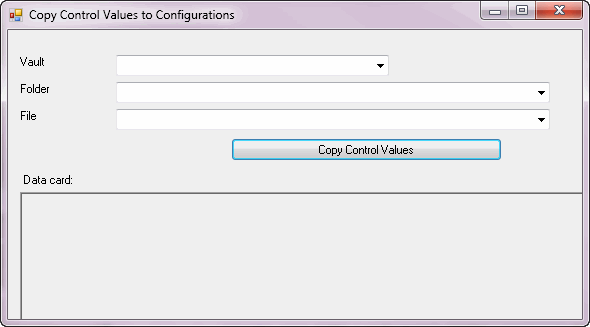

' 1. Displays the Copy Control Values
to Configurations dialog box.
' a. Select a vault view.
' Folder is set
to the root folder.
' b. Select a file that has a data card with two or more
configurations.
' c. Displays the data card.
' d. Click Copy Control Values.
' Copies the value set in Preconditions step
5 to all configurations.
' 2. Close the dialog box.
' 3. Inspect the control values in all of the configurations of the data card.
'----------------------------------------------------------------------------
'Form1.vb
Imports System
Imports System.Collections.Generic
Imports System.ComponentModel
Imports System.Data
Imports System.Drawing
Imports System.Linq
Imports System.Text
Imports System.Threading.Tasks
Imports System.Windows.Forms
Imports EPDM.Interop.epdm
Partial Public Class MainForm
Inherits Form
Private oFoldersArray As Dictionary(Of Integer,IEdmFolder5) = New Dictionary(Of Integer, IEdmFolder5)()
Private oFileArray As New Dictionary(Of Integer, IEdmFile5)()
Private edmCardView As IEdmCardView63
Public Sub New()
InitializeComponent()
End Sub
Private Sub MainForm_Load(ByVal sender As Object, ByVal e As EventArgs) Handles Me.Load
Try
'Declare and create an instance of IEdmVault5
Dim vault1 As IEdmVault5 = New EdmVault5()
'Cast IEdmVault5 to IEdmVault8
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views() As EdmViewInfo = Nothing
'Populate the form with the names of
'the vaults on the computer
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next View
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" & ex.ErrorCode.ToString("X") & ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub VaultsComboBox_SelectedIndexChanged(ByVal sender As Object, ByVal e As EventArgs) Handles VaultsComboBox.SelectedIndexChanged
Try
'Declare and create an instance of IEdmVault5
Dim vault As IEdmVault5 = New EdmVault5()
'Log into selected vault as the current user
vault.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
Dim folderPos As IEdmPos5 = vault.RootFolder.GetFirstSubFolderPosition()
FoldersComboBox.Items.Clear()
oFoldersArray.Clear()
Dim i As Integer = FoldersComboBox.Items.Add("\")
oFoldersArray(i) = vault.RootFolder
Do While Not folderPos.IsNull
Dim edmFolder As IEdmFolder5 = vault.RootFolder.GetNextSubFolder(folderPos)
i = FoldersComboBox.Items.Add(edmFolder.Name)
oFoldersArray(i) = edmFolder
Loop
FoldersComboBox.Text = CStr(FoldersComboBox.Items(0))
Catch e1 As Exception
FoldersComboBox.Items.Clear()
oFoldersArray.Clear()
FoldersComboBox.Text = "Error"
End Try
End Sub
Private Sub FoldersComboBox_SelectedIndexChanged(ByVal sender As Object, ByVal e As EventArgs) Handles FoldersComboBox.SelectedIndexChanged
Try
Dim i As Integer = FoldersComboBox.SelectedIndex
Dim edmFolder As IEdmFolder5 = oFoldersArray(i)
Dim filePos As IEdmPos5 = edmFolder.GetFirstFilePosition()
FilesComboBox.Items.Clear()
oFileArray.Clear()
Do While Not filePos.IsNull
Dim edmFile As IEdmFile5 = edmFolder.GetNextFile(filePos)
i = FilesComboBox.Items.Add(edmFile.Name)
oFileArray(i) = edmFile
Loop
FilesComboBox.Text = CStr(FilesComboBox.Items(0))
Catch ex As Exception
FilesComboBox.Items.Clear()
oFileArray.Clear()
FilesComboBox.Text = "Error"
End Try
End Sub
Private Sub ShowDataCard()
If edmCardView IsNot Nothing Then
edmCardView.ShowWindow(False)
End If
Dim i As Integer = FoldersComboBox.SelectedIndex
Dim edmFolder As IEdmFolder5 = oFoldersArray(i)
i = FilesComboBox.SelectedIndex
Dim edmFile As IEdmFile5 = oFileArray(i)
Dim vault1 As IEdmVault10 = DirectCast(edmFolder.Vault, IEdmVault10)
Dim params As EdmCardViewParams = Nothing
params.mlFileID = edmFile.ID
params.mlFolderID = edmFolder.ID
params.mlCardID = 0
params.mlX = 10
params.mlY = 15
params.mhParentWindow = CardPanel.Handle.ToInt32()
params.mlEdmCardViewFlags = CInt(EdmCardViewFlag.EdmCvf_Normal)
edmCardView = vault1.CreateCardViewEx2(params, Me)
If edmCardView Is Nothing Then
MessageBox.Show("The file does not have a card.")
Return
End If
edmCardView.SetFocus(0)
Dim width_Renamed As Integer = 0
Dim height_Renamed As Integer = 0
edmCardView.GetCardSize(width_Renamed, height_Renamed)
CardPanel.Width = width_Renamed+20
CardPanel.Height = height_Renamed+20
edmCardView.ShowWindow(True)
End Sub
Private Sub FilesComboBox_SelectedIndexChanged(ByVal sender As Object, ByVal e As EventArgs) Handles FilesComboBox.SelectedIndexChanged
ShowDataCard()
End Sub
Private Sub DoBtn_Click(ByVal sender As Object, ByVal e As EventArgs) Handles DoBtn.Click
Dim i As Integer = FoldersComboBox.SelectedIndex
Dim edmFolder As IEdmFolder5 = oFoldersArray(i)
i = FilesComboBox.SelectedIndex
Dim edmFile As IEdmFile14 = DirectCast(oFileArray(i), IEdmFile14)
Dim cfgList As New List(Of String)()
Dim configLst As EdmStrLst5 = edmFile.GetConfigurations()
Dim cfgPos As IEdmPos5 = configLst.GetHeadPosition()
Do While Not cfgPos.IsNull
Dim configName As String = configLst.GetNext(cfgPos)
cfgList.Add(configName)
Loop
For Each configName As String In cfgList
' Move variable values from "@" to configName
edmFile.GenerateDefaultConfigValues(edmFile.ID, "@", configName, "", False)
Next configName
ShowDataCard()
End Sub
End Class
Back to top
'Form1.Designer.vb
Partial Public Class MainForm
''' <summary>
''' Required designer variable.
''' </summary>
Private components As System.ComponentModel.IContainer = Nothing
''' <summary>
''' Clean up any resources being used.
''' </summary>
''' <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
If disposing AndAlso (components IsNot Nothing) Then
components.Dispose()
End If
MyBase.Dispose(disposing)
End Sub
#Region "Windows Form Designer generated code"
''' <summary>
''' Required method for Designer support - do not modify
''' the contents of this method with the code editor.
''' </summary>
Private Sub InitializeComponent()
Me.DoBtn = New System.Windows.Forms.Button()
Me.CardPanel = New System.Windows.Forms.Panel()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.FoldersComboBox = New System.Windows.Forms.ComboBox()
Me.FilesComboBox = New System.Windows.Forms.ComboBox()
Me.label1 = New System.Windows.Forms.Label()
Me.label2 = New System.Windows.Forms.Label()
Me.label3 = New System.Windows.Forms.Label()
Me.label4 = New System.Windows.Forms.Label()
Me.SuspendLayout()
'
' DoBtn
'
Me.DoBtn.Location = New System.Drawing.Point(223, 108)
Me.DoBtn.Name = "DoBtn"
Me.DoBtn.Size = New System.Drawing.Size(271, 23)
Me.DoBtn.TabIndex = 0
Me.DoBtn.Text = "Copy Control Values"
Me.DoBtn.UseVisualStyleBackColor = True
'
' CardPanel
'
Me.CardPanel.AutoScroll = True
Me.CardPanel.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Center
Me.CardPanel.BorderStyle = System.Windows.Forms.BorderStyle.Fixed3D
Me.CardPanel.Location = New System.Drawing.Point(12, 162)
Me.CardPanel.Name = "CardPanel"
Me.CardPanel.Size = New System.Drawing.Size(841, 479)
Me.CardPanel.TabIndex = 1
'
' VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(108, 25)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(273, 21)
Me.VaultsComboBox.TabIndex = 2
'
' FoldersComboBox
'
Me.FoldersComboBox.FormattingEnabled = True
Me.FoldersComboBox.Location = New System.Drawing.Point(108, 52)
Me.FoldersComboBox.Name = "FoldersComboBox"
Me.FoldersComboBox.Size = New System.Drawing.Size(434, 21)
Me.FoldersComboBox.TabIndex = 3
'
' FilesComboBox
'
Me.FilesComboBox.FormattingEnabled = True
Me.FilesComboBox.Location = New System.Drawing.Point(108, 79)
Me.FilesComboBox.Name = "FilesComboBox"
Me.FilesComboBox.Size = New System.Drawing.Size(434, 21)
Me.FilesComboBox.TabIndex = 4
'
' label1
'
Me.label1.AutoSize = True
Me.label1.Location = New System.Drawing.Point(9, 25)
Me.label1.Name = "label1"
Me.label1.Size = New System.Drawing.Size(31, 13)
Me.label1.TabIndex = 5
Me.label1.Text = "Vault"
'
' label2
'
Me.label2.AutoSize = True
Me.label2.Location = New System.Drawing.Point(9, 52)
Me.label2.Name = "label2"
Me.label2.Size = New System.Drawing.Size(36, 13)
Me.label2.TabIndex = 6
Me.label2.Text = "Folder"
'
' label3
'
Me.label3.AutoSize = True
Me.label3.Location = New System.Drawing.Point(9, 79)
Me.label3.Name = "label3"
Me.label3.Size = New System.Drawing.Size(23, 13)
Me.label3.TabIndex = 7
Me.label3.Text = "File"
'
' label4
'
Me.label4.AutoSize = True
Me.label4.Location = New System.Drawing.Point(12, 143)
Me.label4.Name = "label4"
Me.label4.Size = New System.Drawing.Size(57, 13)
Me.label4.TabIndex = 8
Me.label4.Text = "Data card:"
'
' MainForm
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6F, 13F)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(913, 670)
Me.Controls.Add(Me.label4)
Me.Controls.Add(Me.label3)
Me.Controls.Add(Me.label2)
Me.Controls.Add(Me.label1)
Me.Controls.Add(Me.FilesComboBox)
Me.Controls.Add(Me.FoldersComboBox)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.CardPanel)
Me.Controls.Add(Me.DoBtn)
Me.Name = "MainForm"
Me.Text = "Copy Control Values to Configurations"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
#End Region
Private WithEvents DoBtn As System.Windows.Forms.Button
Private CardPanel As System.Windows.Forms.Panel
Private WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Private WithEvents FoldersComboBox As System.Windows.Forms.ComboBox
Private WithEvents FilesComboBox As System.Windows.Forms.ComboBox
Private label1 As System.Windows.Forms.Label
Private label2 As System.Windows.Forms.Label
Private label3 As System.Windows.Forms.Label
Private label4 As System.Windows.Forms.Label
End Class
