Get and Set Item References Example (VB.NET)
This example shows how to get and set item references.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type ItemRefs in Name.
' c. Click Browse and navigate to the folder where to create
' the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form,
replace the code in Form1.Designer.vb with this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Ensure that an item folder with at least one item is checked into the
vault.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

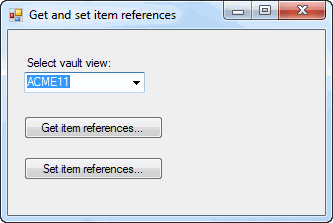

' 1. Displays the Get and set item
references dialog box.
' 2. Select a vault view.
' 3. Click Get item references.
' a. Click an item folder
in the vault.
' b. Click OK.
' c. Displays a message box confirming your folder selection.
' d. Click OK.
' e. Displays a message box with item references for the first
item found
' in the selected folder.
' f. Click OK.
' 4. Click Set item references.
' a. Click one or more files to add as references to the item.
' b. Click Open.
' c. Displays a message box with the updated references.
' - or -
' Displays a message box with errors.
' d. Click OK.
' 5. Close the Get and set item references dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Dim item As IEdmItem
Dim fileInt As IEdmFile8
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
Dim vault1 As IEdmVault5 = New EdmVault5()
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Button1.Enabled = False
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub GetItemRefs_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GetItemRefs.Click
Try
Dim vault2 As IEdmVault11 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault11)
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
Dim folder As IEdmFolder6
folder = vault2.BrowseForFolder2(Me.Handle.ToInt32, "Select a folder", vault2.RootFolder, EdmBrowseForFolderFlag.EdmBwsFld_None)
If Not folder Is Nothing Then
If folder.ObjectType = EdmObjectType.EdmObject_Folder Then
MsgBox("You selected the file folder: " + vbLf + folder.LocalPath)
Else
MsgBox("You selected the item folder: " + vbLf + folder.LocalPath)
End If
End If
'Get the first item in the selected folder
Dim pos As IEdmPos5
Dim msg As String
pos = folder.GetFirstFilePosition
fileInt = folder.GetNextFile(pos)
'Search for item by name to get its ID
Dim search As IEdmSearch7
search = vault2.CreateUtility(EdmUtility.EdmUtil_Search)
search.FindFiles = True
search.FindFolders = False
search.Recursive = True
search.SetToken(EdmSearchToken.Edmstok_FindItems, True)
search.StartFolderID = vault2.ItemRootFolderID
search.FileName = fileInt.Name
Dim result As IEdmSearchResult5
result = search.GetFirstResult
If result Is Nothing Then
MessageBox.Show("The item '" + fileInt.Name + "' was not found.")
End If
While Not result Is Nothing
If (result.IsKindOf(EdmObjectType.EdmObject_Item)) Then
fileInt = result
item = fileInt
'Create a message about the item and
its references
msg = "Name=" & item.Name & vbLf
msg = msg & "ID = " & item.ID.ToString & vbLf
msg = msg & "Descriptive name = " & item.ItemDescriptiveName & vbLf
msg = msg & "Check-out path = " & fileInt.LockPath & vbLf
msg = msg & "Workflow state = " & fileInt.CurrentState.Name & vbLf
msg = msg & vbLf & "Referenced files:" & vbLf
Dim refs() As EdmItemRef = Nothing
item.GetReferences(EdmRefFlags.EdmRef_Dynamic + EdmRefFlags.EdmRef_Static + EdmRefFlags.EdmRef_Item + EdmRefFlags.EdmRef_File, refs)
Dim idx As Integer
idx = LBound(refs)
While (idx <= UBound(refs))
msg = msg + "File ID=(" + CStr(refs(idx).moNamePathOrID) + ") "
msg = msg + "Parent Item ID=(" + CStr(refs(idx).moParentNamePathOrItemID) + ") "
msg = msg + "Configuration='" + refs(idx).mbsConfiguration + "' "
If (refs(idx).mlEdmRefFlags And EdmRefFlags.EdmRef_Dynamic) = EdmRefFlags.EdmRef_Dynamic Then
msg = msg + " (auto-update reference)"
Else
If (refs(idx).mlEdmRefFlags And EdmRefFlags.EdmRef_Static) = EdmRefFlags.EdmRef_Static Then
msg = msg + " (static reference)"
End If
End If
idx = idx + 1
msg = msg + vbLf
End While
MessageBox.Show(msg)
Button1.Enabled = True
End If
Exit Sub
End While
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
'Set item references
Try
Dim vault2 As IEdmVault11 = Nothing
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
vault2 = DirectCast(vault1, IEdmVault11)
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Get the current item references
Dim oldRefs() As EdmItemRef = Nothing
item.GetReferences(EdmRefFlags.EdmRef_Dynamic + EdmRefFlags.EdmRef_Static + EdmRefFlags.EdmRef_Item + EdmRefFlags.EdmRef_File, oldRefs)
'Let the user browse for new file references
Dim pathList As IEdmStrLst5 = vault2.BrowseForFile(Me.Handle.ToInt32, EdmBrowseFlag.EdmBws_ForOpen + EdmBrowseFlag.EdmBws_PermitVaultFiles + EdmBrowseFlag.EdmBws_PermitMultipleSel, "All Files|*.*||")
If pathList Is Nothing Then Return
'Create an array of new item references
Dim newRefs(pathList.Count - 1) As EdmItemRef
Dim idx As Integer = 0
Dim pos As IEdmPos5
pos = pathList.GetHeadPosition
While Not pos.IsNull
Dim path As String
path = pathList.GetNext(pos)
newRefs(idx).moNamePathOrID = path
newRefs(idx).mlEdmRefFlags = EdmRefFlags.EdmRef_Static + EdmRefFlags.EdmRef_File
newRefs(idx).moParentNamePathOrItemID = item.ID
idx = idx + 1
End While
'Check out the item
fileInt.LockFile(vault2.ItemRootFolderID, Me.Handle.ToInt32())
'Update the item references
item.UpdateReferences(newRefs, oldRefs)
'Collect all errors
Dim msg As String = ""
Dim errstr As String = ""
idx = LBound(newRefs)
While (idx <= UBound(newRefs))
If newRefs(idx).mhResult <> 0 Then
errstr = vault2.GetErrorName(newRefs(idx).mhResult)
msg = msg + "Failed to save ref: '" + CStr(newRefs(idx).moNamePathOrID) + "' (" + errstr + ")" + vbLf
End If
idx = idx + 1
End While
idx = LBound(oldRefs)
While (idx <= UBound(oldRefs))
If oldRefs(idx).mhResult <> 0 Then
errstr = vault2.GetErrorName(oldRefs(idx).mhResult)
msg = msg + "Failed to delete ref: '" + CStr(oldRefs(idx).moNamePathOrID) + "' (" + errstr + ")" + vbLf
End If
idx = idx + 1
End While
'Display a status message
If msg = "" Then
msg = "Updated references successfully!" & vbLf
Dim refs() As EdmItemRef = Nothing
item.GetReferences(EdmRefFlags.EdmRef_Dynamic + EdmRefFlags.EdmRef_Static + EdmRefFlags.EdmRef_Item + EdmRefFlags.EdmRef_File, refs)
idx = LBound(refs)
'Construct a message about the reference
updates
While (idx <= UBound(refs))
msg = msg + "File ID=(" + CStr(refs(idx).moNamePathOrID) + ") "
msg = msg + "Parent Item ID=(" + CStr(refs(idx).moParentNamePathOrItemID) + ") "
msg = msg + "Configuration='" + refs(idx).mbsConfiguration + "' "
If (refs(idx).mlEdmRefFlags And EdmRefFlags.EdmRef_Dynamic) = EdmRefFlags.EdmRef_Dynamic Then
msg = msg + " (auto-update reference)"
Else
If (refs(idx).mlEdmRefFlags And EdmRefFlags.EdmRef_Static) = EdmRefFlags.EdmRef_Static Then
msg = msg + " (static reference)"
End If
End If
idx = idx + 1
msg = msg + vbLf
End While
MessageBox.Show(msg)
Else
MessageBox.Show("Errors detected: " + vbLf + msg)
End If
'Check in the item
fileInt.UnlockFile(Me.Handle.ToInt32(), "Updated item references", EdmUnlockFlag.EdmUnlock_IgnoreRefsNotLockedByCaller)
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
''' <summary>
''' Required designer variable.
''' </summary>
Private components As System.ComponentModel.IContainer = Nothing
''' <summary>
''' Clean up any resources being used.
''' </summary>
''' <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
If disposing AndAlso (components IsNot Nothing) Then
components.Dispose()
End If
MyBase.Dispose(disposing)
End Sub
#Region "Windows Form Designer generated code"
''' <summary>
''' Required method for Designer support - do not modify
''' the contents of this method with the code editor.
''' </summary>
Private Sub InitializeComponent()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.GetItemRefs = New System.Windows.Forms.Button()
Me.OpenFileDialog = New System.Windows.Forms.OpenFileDialog()
Me.Button1 = New System.Windows.Forms.Button()
Me.SuspendLayout()
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(13, 26)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(94, 13)
Me.VaultsLabel.TabIndex = 0
Me.VaultsLabel.Text = " Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(16, 42)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 1
'
'GetItemRefs
'
Me.GetItemRefs.Location = New System.Drawing.Point(16, 86)
Me.GetItemRefs.Name = "GetItemRefs"
Me.GetItemRefs.Size = New System.Drawing.Size(139, 23)
Me.GetItemRefs.TabIndex = 5
Me.GetItemRefs.Text = "Get item references..."
Me.GetItemRefs.UseVisualStyleBackColor = True
'
'OpenFileDialog
'
Me.OpenFileDialog.Title = "Open"
'
'Button1
'
Me.Button1.Location = New System.Drawing.Point(16, 127)
Me.Button1.Name = "Button1"
Me.Button1.Size = New System.Drawing.Size(139, 23)
Me.Button1.TabIndex = 6
Me.Button1.Text = "Set item references..."
Me.Button1.UseVisualStyleBackColor = True
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(317, 185)
Me.Controls.Add(Me.Button1)
Me.Controls.Add(Me.GetItemRefs)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.VaultsLabel)
Me.Name = "Form1"
Me.Text = "Get and set item references"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
#End Region
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents GetItemRefs As System.Windows.Forms.Button
Friend WithEvents OpenFileDialog As System.Windows.Forms.OpenFileDialog
Friend WithEvents Button1 As System.Windows.Forms.Button
End Class
Back to top
