Update File Raw References Example (VB.NET)
This example shows how to get file references directly
from a file and update file references directly in that file.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type RawReferencesVBNET in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Check out a SOLIDWORKS assembly or drawing document whose file
' references you want to update and check out all of the document's
' referenced files.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

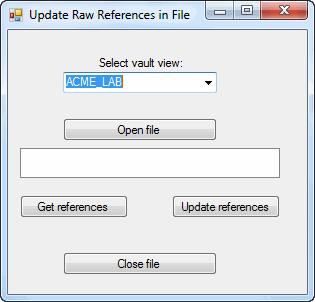

' 1. Displays the Update Raw References in File dialog box.
' 2. Select the vault view where the SOLIDWORKS assembly or
' drawing document that you checked out in
' Preconditions step 4 resides.
' 3. Click Open file.
' 4. Displays the Open a file dialog box.
' a. Click the assembly or drawing document you checked
' out in Preconditions step 4.
' b. Click Open.
' The opened file's path and file name appear
' in the Update Raw References in File dialog box.
' 5. Click Get references.
' a. Displays a message box for each referenced file.
' The referenced file's ID, path and file name, file name,
' type, and number of times referenced appear in the
' message box.
' b. Click OK to close each message box.
' 6. Rename one of the referenced files in the selected vault
' in File Explorer.
' 7. Click Update references.
' a. Displays a message box confirming that references were updated.
' b. Click OK to close the message box.
' 8. Click Get references.
' a. Displays a message box for each referenced file.
' The referenced file's ID, path and file name, file name,
' type, and number of times referenced appear in the
' message box. Note that the renamed file is now a referenced
' file of the open document.
' b. Click OK to close each message box.
' 9. Click Close file.
' 10. Click OK to close the message box confirming that the
' open document was closed.
' 11. Close the Update Raw References in File dialog box.
' 12. Check in the SOLIDWORKS assembly or drawing and its
' file references.
'----------------------------------------------------------------------------
'Form1.vb
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Dim aFile As IEdmFile5
Dim fileName As String
Dim rawRefs As IEdmRawReferenceMgr
Dim refs() As EdmRawReference = Nothing
Private Sub Form1_Load( _
ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
Try
Dim vault As IEdmVault8 = New EdmVault5
Dim Views() As EdmViewInfo = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = VaultsComboBox.Items(0)
End If
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + _
ex.ErrorCode.ToString("X") + vbCrLf + _
ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub UpdateButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles UpdateButton.Click
Try
'Only create a new vault object
'if one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Update the file references directly in the file
rawRefs.UpdateReferences(refs)
MessageBox.Show("File references updated.")
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub OpenButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles OpenButton.Click
Try
'If one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Set the initial directory in the Open a file dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
'Show the Open a file dialog
Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
DialogResult = OpenFileDialog1.ShowDialog()
If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
'Do nothing
Else
'Open a file
fileName = OpenFileDialog1.FileName
FileListBox.Items.Add(fileName)
aFile = vault1.GetFileFromPath(fileName)
End If
'Get IEdmRawReferences interface
rawRefs = vault1.CreateUtility(EdmUtility.EdmUtil_RawReferenceMgr)
Dim fileRefsSupported As Boolean
fileRefsSupported = rawRefs.Open(fileName)
If Not fileRefsSupported Then
MessageBox.Show("File's format does not support file references.")
Exit Sub
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub GetButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GetButton.Click
Try
'Only create a new vault object
'if one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
Dim arrSize As Integer
Dim i As Integer = 0
Dim message As String
'Get the file references directly from the file
rawRefs.GetReferences(refs)
arrSize = refs.Length
If arrSize = 0 Then
MessageBox.Show("No file references for opened file.")
Exit Sub
End If
While i < arrSize
message = "File reference information: " + vbLf + vbLf
message = message + " Internal ID: " + refs(i).mbsRefID + vbLf
message = message + " Referenced how: " + refs(i).mbsIncludePath + vbLf
message = message + " Reference name: " + refs(i).mbsRefName + vbLf
message = message + " Number of times file referenced = " + refs(i).mlCount.ToString + vbLf
Select Case refs(i).mlFlags
Case EdmRawRefFlags.Edmrrf_Ghost
message = message + " Type = DWG files can store grandchildren as references" + vbLf
Case EdmRawRefFlags.Edmrrf_InternalComponent
message = message + " Type = Not used" + vbLf
Case EdmRawRefFlags.Edmrrf_Nothing
message = message + " Type = Normal file reference" + vbLf
End Select
i = i + 1
MessageBox.Show(message)
End While
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub CloseButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles CloseButton.Click
Try
'Only create a new vault object
'if one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Close the file
rawRefs.Close()
MessageBox.Show("File closed.")
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.Label1 = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.OpenButton = New System.Windows.Forms.Button()
Me.GetButton = New System.Windows.Forms.Button()
Me.UpdateButton = New System.Windows.Forms.Button()
Me.CloseButton = New System.Windows.Forms.Button()
Me.FileListBox = New System.Windows.Forms.ListBox()
Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
Me.SuspendLayout()
'
'Label1
'
Me.Label1.AutoSize = True
Me.Label1.Location = New System.Drawing.Point(88, 26)
Me.Label1.Name = "Label1"
Me.Label1.Size = New System.Drawing.Size(91, 13)
Me.Label1.TabIndex = 0
Me.Label1.Text = "Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(55, 42)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(154, 21)
Me.VaultsComboBox.TabIndex = 1
'
'OpenButton
'
Me.OpenButton.Location = New System.Drawing.Point(55, 88)
Me.OpenButton.Name = "OpenButton"
Me.OpenButton.Size = New System.Drawing.Size(154, 23)
Me.OpenButton.TabIndex = 2
Me.OpenButton.Text = "Open file"
Me.OpenButton.UseVisualStyleBackColor = True
'
'GetButton
'
Me.GetButton.Location = New System.Drawing.Point(12, 165)
Me.GetButton.Name = "GetButton"
Me.GetButton.Size = New System.Drawing.Size(108, 23)
Me.GetButton.TabIndex = 3
Me.GetButton.Text = "Get references"
Me.GetButton.UseVisualStyleBackColor = True
'
'UpdateButton
'
Me.UpdateButton.Location = New System.Drawing.Point(164, 165)
Me.UpdateButton.Name = "UpdateButton"
Me.UpdateButton.Size = New System.Drawing.Size(108, 23)
Me.UpdateButton.TabIndex = 4
Me.UpdateButton.Text = "Update references"
Me.UpdateButton.UseVisualStyleBackColor = True
'
'CloseButton
'
Me.CloseButton.Location = New System.Drawing.Point(55, 222)
Me.CloseButton.Name = "CloseButton"
Me.CloseButton.Size = New System.Drawing.Size(154, 23)
Me.CloseButton.TabIndex = 5
Me.CloseButton.Text = "Close file"
Me.CloseButton.UseVisualStyleBackColor = True
'
'FileListBox
'
Me.FileListBox.FormattingEnabled = True
Me.FileListBox.Location = New System.Drawing.Point(12, 118)
Me.FileListBox.Name = "FileListBox"
Me.FileListBox.Size = New System.Drawing.Size(260, 30)
Me.FileListBox.TabIndex = 6
'
'OpenFileDialog1
'
Me.OpenFileDialog1.FileName = "OpenFileDialog1"
Me.OpenFileDialog1.Multiselect = True
Me.OpenFileDialog1.Title = "Open a file"
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(284, 264)
Me.Controls.Add(Me.FileListBox)
Me.Controls.Add(Me.CloseButton)
Me.Controls.Add(Me.UpdateButton)
Me.Controls.Add(Me.GetButton)
Me.Controls.Add(Me.OpenButton)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.Label1)
Me.Name = "Form1"
Me.Text = "Update References in File"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents Label1 As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents OpenButton As System.Windows.Forms.Button
Friend WithEvents GetButton As System.Windows.Forms.Button
Friend WithEvents UpdateButton As System.Windows.Forms.Button
Friend WithEvents CloseButton As System.Windows.Forms.Button
Friend WithEvents FileListBox As System.Windows.Forms.ListBox
Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
End Class
