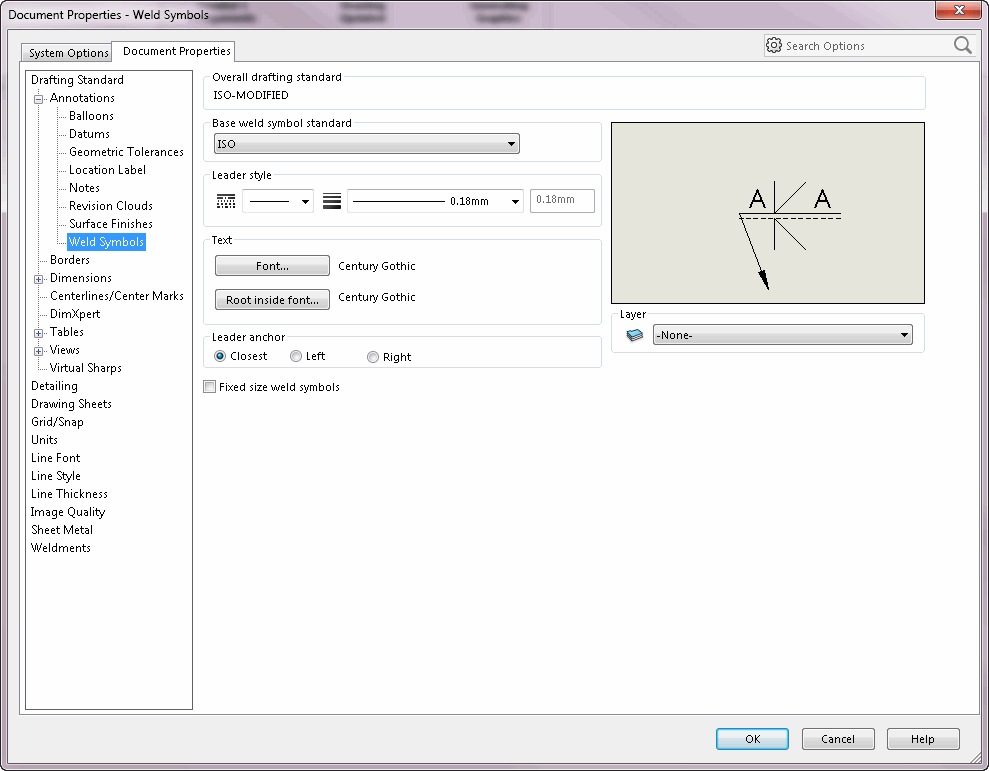

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
Base weld symbol standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingWeldSymbol)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingWeldSymbol, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base weld symbol standard to use |
Leader style - Leader Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderLineStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
|
Leader style - Leader Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
|
Leader style - Custom thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingWeldSymbolLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingWeldSymbolLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies custom thickness of weld symbol leader lines; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingWeldSymbolTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingWeldSymbolTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Text - Root inside font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingWeldSymbolTextRootInsideFont,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingWeldSymbolTextRootInsideFont,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
Font for the weld symbol text fitting inside root gap; to set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
Leader anchor - Closest, Left, or Right |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderSide,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingWeldSymbolLeaderSide,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLeaderSide_e.<Value>) |
See swLeaderSide_e
for valid options |
|
Fixed size weld symbols |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingFixedSizeWeldSymbol,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingFixedSizeWeldSymbol,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether size of weld symbol is scaled according to dimension
font size, or size of weld symbol is dependent on selected dimensioning
standard |
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swuserPreferenceOption_e.swDetailingWeldSymbol)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swuserPreferenceOption_e.swDetailingWeldSymbol, <Value>) |
String value |
Specifies the name of the layer to apply settings to; this setting is
available only on drawings |
