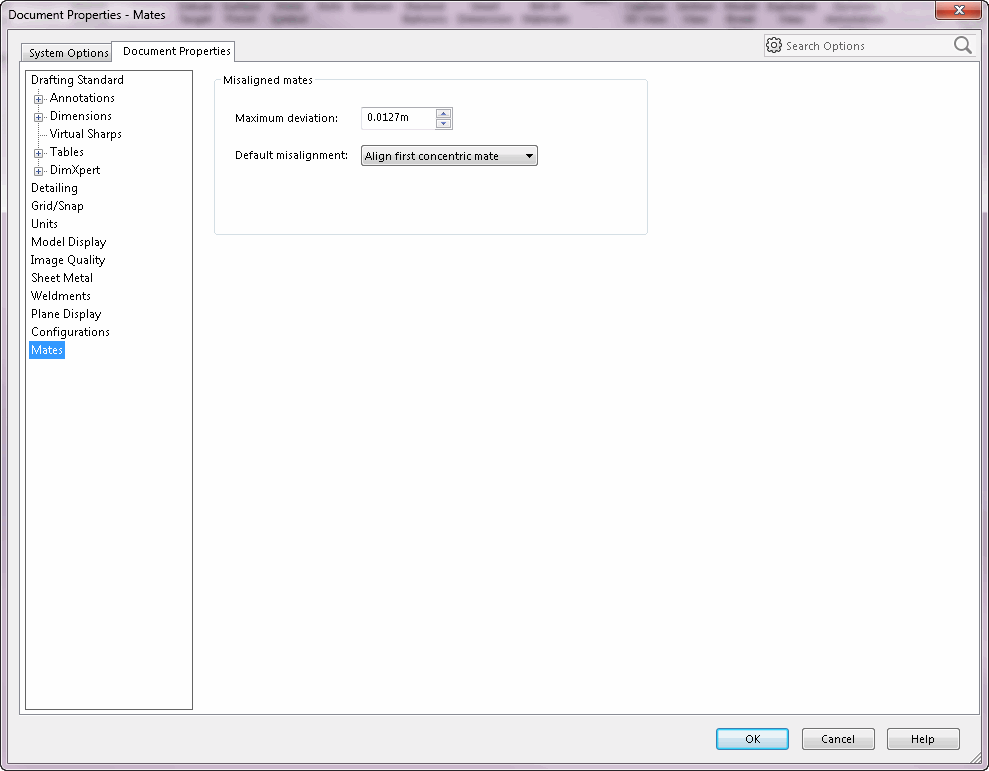

Document Properties > Mates

Setting

Get/Set Methods

Return Value or <Value>

Comments

Misaligned mates - Maximum deviation

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMatesMaximumDeviationForMisalignedMates, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMatesMaximumDeviationForMisalignedMates, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Valid only for assemblies

Misaligned mates - Default misalignment

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swMatesDefaultMisalignedType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swMatesDefaultMisalignedType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swMatesDefaultMisalignment_e.<Value>)

Valid values as defined in swMatesDefaultMisalignment_e

Valid only for assemblies
