Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

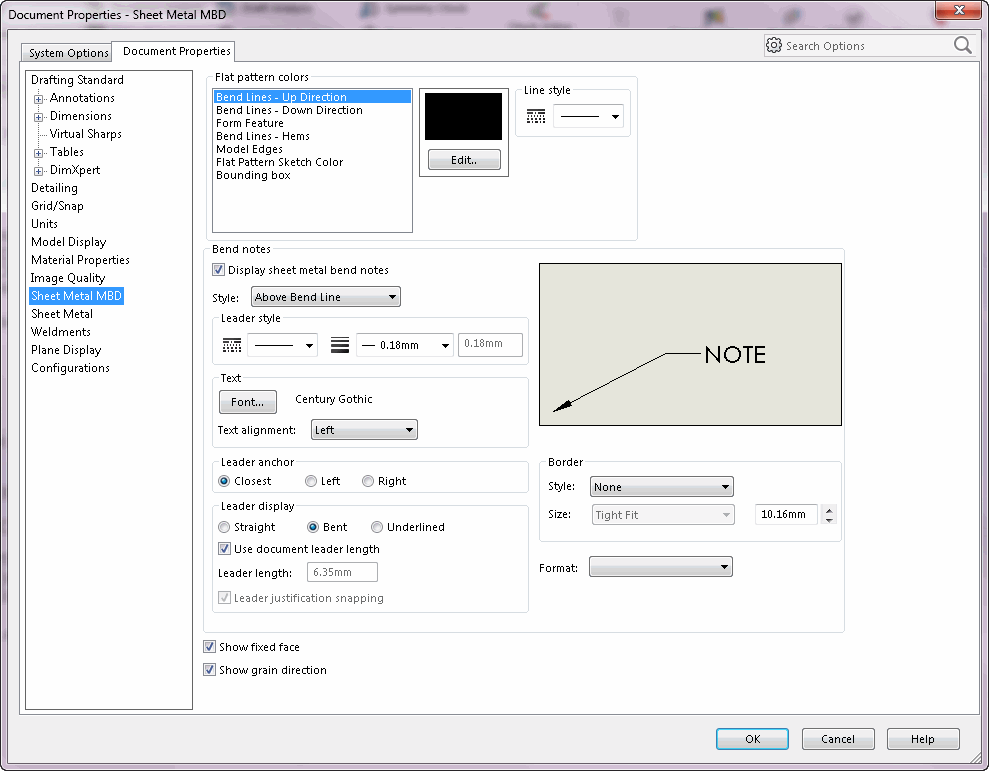

Flat pattern colors - Bend Lines - Up Direction |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBendLinesUpDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBendLinesUpDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Bend Lines - Up Direction - Line style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLineStyle_BendLinesUp,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLineStyle_BendLinesUp,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>) |
Any line style as defined in
swLineStyles_e
except swLineDEFAULT |
|
|
Flat pattern colors - Bend Lines - Down Direction |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBendLinesDownDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBendLinesDownDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Bend Lines - Down Direction - Line style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLineStyle_BendLinesDown,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLineStyle_BendLinesDown,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>) |
Any line style as defined in
swLineStyles_e
except swLineDEFAULT |
|
|
Flat pattern colors - Form Feature |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsFromFeature,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsFromFeature,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Bend Lines - Hems |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalColorBendLinesHems,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalColorBendLinesHems,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Model Edges |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsModelEdges,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsModelEdges,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Flat Pattern Sketch Color |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsFlatPatternSketchColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsFlatPatternSketchColor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Flat pattern colors - Bounding box |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBoundingBox,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swFlatPatternColorsBoundingBox,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer RGB value |
|
|
Bend notes - Display sheet metal bend notes |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDDisplaySheetMetalBendNotes,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDDisplaySheetMetalBendNotes,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
|
|
Bend notes - Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDBendNotesStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDBendNotesStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swSheetMetalMBDBendNotesStyle_e.<Value>) |
See
swSheetMetalMBDBendNotesStyle_e
for valid options |
|
|
Bend notes - Leader style - Leader style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>) |
See
swLineStyles_e
for valid options |
|
|
Bend notes - Leader style - Leader thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderLineThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>) |
See
swLineWeights_e
for valid options |
If set to swLW_CUSTOM, you must also
set Leader style - Leader thickness - Custom Thickness |
|
Bend notes - Leader style - Leader thickness - Custom Thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDLeaderLineThicknessCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
0.00018 <= Double value in meters <= 0.004 |
Valid only if Leader thickness is set to
swLineWeights_e.swLW_CUSTOM |
|
Bend notes - Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swSheetMetalMBDTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swSheetMetalMBDTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in this API's
set method |
|
Bend notes - Text - Text alignment |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDTextAlignment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDTextAlignment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swTextJustification_e.<Value>) |
See
swTextJustification_e
for valid options; None is not a valid option |
|
|
Bend notes - Leader anchor |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderAnchor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderAnchor,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLeaderSide_e.<Value>) |
See
swLeaderSide_e
for valid options |
|
|
Bend notes - Leader display |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDLeaderDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLeaderStyle_e.<Value>) |
See
swLeaderStyle_e
for valid options |
|
|
Bend notes - Leader display - Use document leader length |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDUseDocumentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDUseDocumentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Valid only if Leader display is set to swLeaderStyle_e.Bent |
|
Bend notes - Leader display - Leader length |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
1.0E-7 <= Double value in meters <= 1000.0 |
Valid only if Use document leader length is set to false |
|
Bend notes - Leader display - Leader justification snapping |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDLeaderJustificationSnapping,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDLeaderJustificationSnapping,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
|
|
Bend notes - Border - Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDBalloonStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDBalloonStyle,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonStyle_e.<Value>) |
See
swBalloonStyle_e
for valid options; swBS_SplitCir and swBS_Underline are not valid options |
|
|
Bend notes - Border - Size |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDFit,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSheetMetalMBDFit,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBalloonFit_e.<Value>) |
See
swBalloonFit_e
for valid options |
If set to swBF_UserDef,
you must also set Bend notes - Border - Size - Custom Size |
|
Bend notes - Border - Size - Custom Size |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDBorderSizeCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swSheetMetalMBDBorderSizeCustom,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
0.0002 <= Double value in meters <= 1000.0 |
Valid only if Border Size is set to swBF_UserDef |
|
Bend notes - Format |
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
True value only |
This property is write-true only. The default setting keeps the current bend
note format.
To exchange the current bend note format to another that is specified in a bend note file:
- Specify a new bend note file in System Options > File Locations > Show
folders for > Sheet Metal Bend Line Note File > Folders or set it
using
ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swFileLocationsBendNoteFormatFile,
<Value>) See
System Options > File Locations
documentation.
- Set this property to true.
|
|
Show fixed face |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDShowFixedFace,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDShowFixedFace,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
|
|
Show grain direction |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDShowGrainDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalMBDShowGrainDirection,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
|
