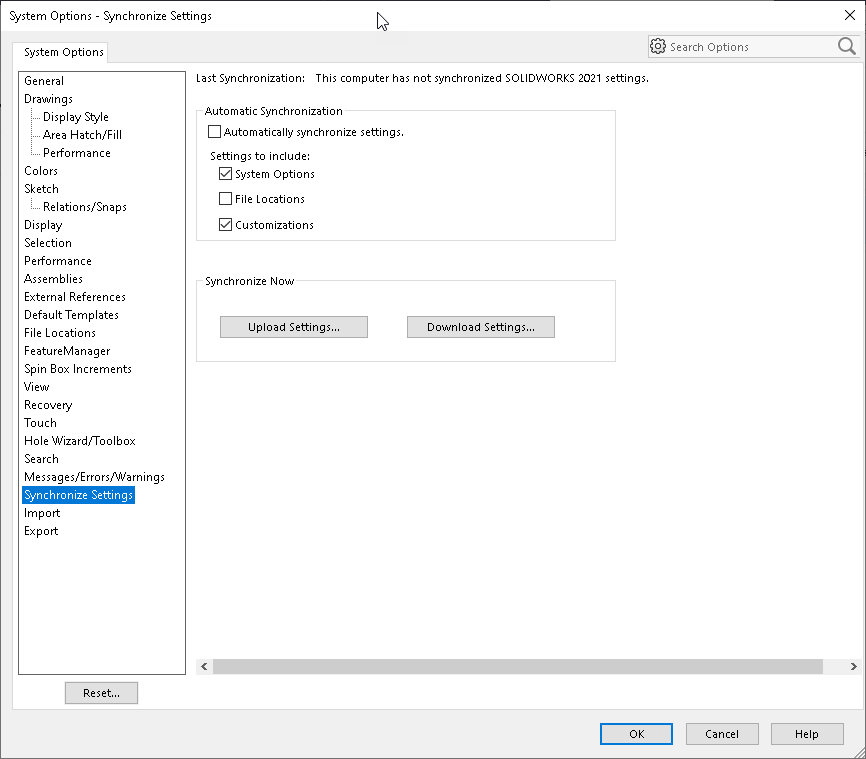

System Options > Synchronize Settings

This dialog is only available in SOLIDWORKS Connected.

Setting	Get/Set Methods	Return value or <Value> or <OnFlag>	Comment
Last Synchronization (SOLIDWORKS Connected only)	ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swLastSynchronizationTimeStamp)	String value
Automatic Synchronization - Automatically synchronize settings (SOLIDWORKS Connected only)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticSyncSettings) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticSyncSettings, <OnFlag>)	Boolean value	When set to true, specified settings to include are automatically synchronized when logging in and out of SOLIDWORKS Connected
Automatic Synchronization - Settings to include - System Options (SOLIDWORKS Connected only)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_SystemOptions) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_SystemOptions, <OnFlag>)	Boolean value	Valid only if swUserPreferenceToggle_e.swAutomaticSyncSettings is set to true
Automatic Synchronization - Settings to include - File Locations (SOLIDWORKS Connected only)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_FileLocations) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_FileLocations, <OnFlag>)	Boolean value	Valid only if swUserPreferenceToggle_e.swAutomaticSyncSettings is set to true
Automatic Synchronization - Settings to include - Customizations (SOLIDWORKS Connected only)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_Customizations) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoSyncSettingsToInclude_Customizations, <OnFlag>)	Boolean value	Valid only if swUserPreferenceToggle_e.swAutomaticSyncSettings is set to true
Synchronize Now - Upload Settings... (SOLIDWORKS Connected only)	ISldWorks::UploadToMySolidWorksSettings	Integer value
Synchronize Now - Download Settings... (SOLIDWORKS Connected only)	ISldWorks::DownloadFromMySolidWorksSettings	Integer value

Search 'System Options > Synchronize Settings' in the SOLIDWORKS Knowledge Base.
