System Options > Export > EDRW/EPRT/EASM

This topic contains two tables. The information in the table:

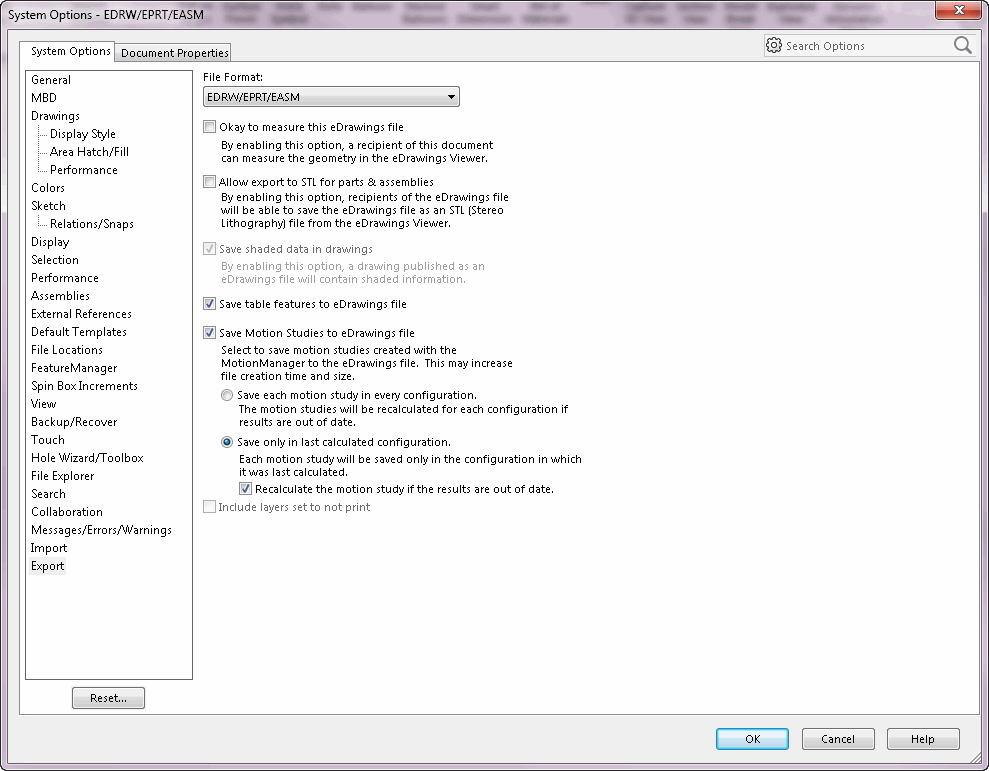

  • appearing immediately after the screen capture corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > EDRW/EPRT/EASM in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select eDrawings.
  3. Click Options.

Exporting of EDRW/EPRT/EASM file formats is not supported in SOLIDWORKS Connected.



Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Okay to measure this eDrawings file

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure, <OnFlag>)

Boolean value

Specifies whether to enable measurement of geometry in eDrawings file

Allow export to STL for parts & assemblies

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay, <OnFlag>)

Boolean value

Specifies whether to allow recipients of eDrawings file to save it as STL file from eDrawings Viewer

Save shaded data in drawings

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings, <OnFlag>)

Boolean value

For SOLIDWORKS drawings only; specifies whether to save shaded data from SOLIDWORKS drawing document in published eDrawings file

Save Bill of Materials features to eDrawings file

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM, <OnFlag>)

Boolean value

Specifies whether to save BOM in eDrawings file

Save Motion Studies to eDrawings file

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay, <OnFlag>)

Boolean value

Specifies whether to save motion studies to eDrawings file

Save each motion study in every configuration

and

Save only in last calculated configuration

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs, <OnFlag>)

Boolean value:

  • True: Save each motion study in every configuration

  • False: save each motion study only in the configuration in which it was last calculated

Specifies how to save motion studies to eDrawings files

Recalculate the motion study if the results are out of date

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate, <OnFlag>)

Boolean value

Specifies whether to recalculate the motion study or use existing results in eDrawings file


Include layers set not to print
(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint, <OnFlag>)


Boolean value
Specifies whether to include layers set not to print



Obsolete Enumerators

Enumerator

Comment

swEDrawingsCompression

Obsolete

swEdrawingsSaveAsSelectionOption

Obsolete

swEmodelSelectionList

Obsolete
