Linear and Angular Tolerances

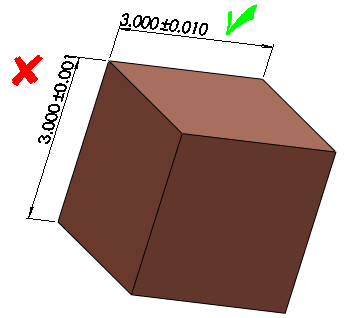

Tolerances should be no tighter than necessary. Stringent tolerances might require special process parameters that are not within the natural capability of available machine tools.

To configure tolerance rules, set Minimum Linear Tolerance Zone and Minimum Angular Tolerance Zone.
