The electrical flattening functionality allows disjointed routes in Manufacturing and Annotation styles.

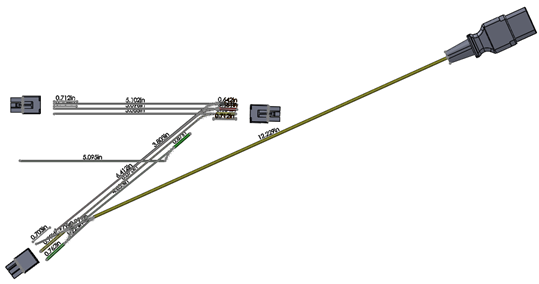

Display of disjointed routes is supported in flattened drawings.
In the flattened state, where multiple, disjointed routes are present, clips are visually
associated with at least one route segment and placed parallel to the route segment.
You can manually drag route assemblies in the flattened state. Select Move
Connected Route Segments from the shortcut menu.
A route is a disjointed route segment when a route assembly having
multiple individual routes that are not connected to each other, form a circuit-like
system.
