When you replace components in an assembly, the Missing Entities pop-up toolbar helps you to navigate through existing mates as you replace mate references.
From the pop-up toolbar, you can:
- Show the replacement part alone, show the replacement part with related parts, or show the entire assembly.
- Undo selections and operations.
- Delete mates.
- Skip mates.
- Toggle mate alignments.
To access the Missing Entities pop-up toolbar, select the Re-attach mates option in the Replace Components PropertyManager:
- Right-click a component and select Replace Components.
- In the PropertyManager:
- For With this one
, select a replacement component.
- Under Options, select Re-attach mates.
- Click
.

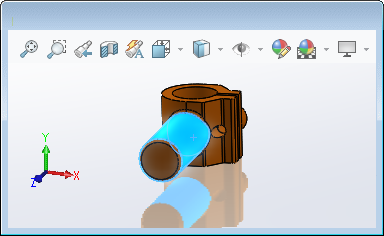

The Mated Entities PropertyManager opens. Additionally, the Missing Entities pop-up toolbar appears, and a window shows the original component with the missing mate entity highlighted.
|
Isolate |
Controls which components are visible in the graphics area, to help you focus on the missing mate entities. Click Isolate and select:
![](rgv1491504201840.image) |
Selected Entity |
Shows only the component you are inserting. |
![](gbj1467915942414.image) |
Entity and Mated Parts |
Shows the component you are inserting, plus components that are mated to the part you are replacing. |
![](lue1492107052043.image) |
Entire Assembly |
Shows all visible components in the assembly. |
|
![](idi1524159196595.image) |
Undo |
Undoes the previous action. |
![](qle1494936998198.image) |
Delete Mates |
Deletes the selected mate. |
![](kmp1450449401240.image) |
Next Reference |
Selects the next mate entity in the list without taking action on the current entity. |
![](zmp1525374365200.image) |
Flip Mate Alignment |
Toggles the alignment of the mate. |
