You can insert a bend table in the flat pattern view of sheet metal parts in drawings.
Bend tables provide information about the bends in the sheet metal body including:
- Tags
- Directions
- Angles
- Inner radii
You can use bend tables or bend notes, but not both.

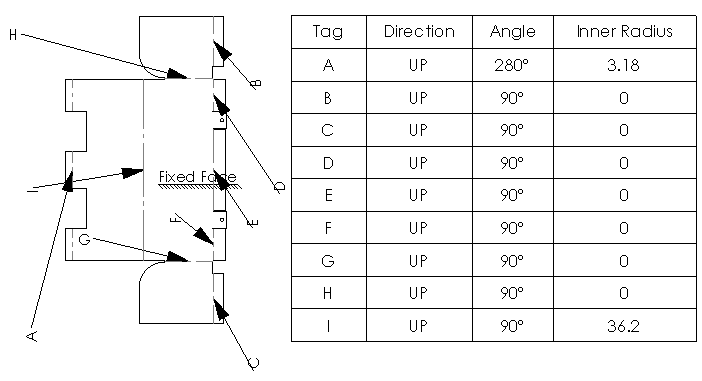

![prj-17286-Flat-Pattern-With-Bend-Table.gif](vrv1450448287736.image) |
Bend Table |

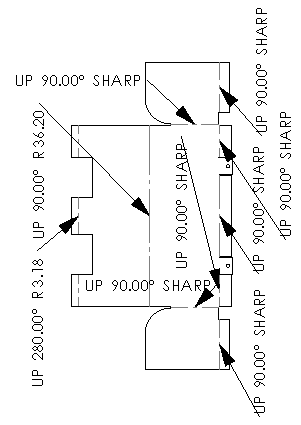

![prj-17286-Flat-Pattern-With-Notes.gif](qux1450448288833.image) |
Bend Notes |
