You can select the faces, edges, and vertices that are created by a section view of a part or assembly.
You cannot open a sketch on a section view face.
Measure and Section Properties
- Select a face on the section plane to calculate its section properties. Select edges or vertices to measure.
- Select truncated faces to measure lengths or calculate section properties. Truncated faces are faces cut by the section plane.
 |

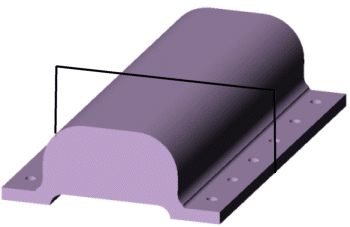

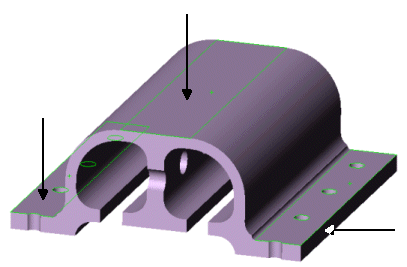

| Truncated Faces
|
Convert Entities
For functions other than Measure and Section Properties, the truncated faces act as if they are not truncated. For example, if you open a sketch on a truncated face and convert the edges, the edges of the full face are converted.
 |

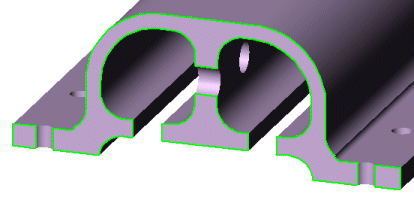

| Full Face is Converted
|
