When you select cylindrical faces or circular edges to mate with an axis, the software creates a concentric mate. When you select two parallel planar faces, the software creates a coincident mate.
Some default mate types have a secondary default mate that is created when the primary default mate type coincident mate over-defines the assembly. For example, the software creates a parallel mate between two planar parallel faces when a coincident mate over-defines the assembly.
To mate an axis with a cylindrical face in an assembly:
![defaultmatesnoselected.png](kqz1490877959723.image)
- Select an axis and a cylindrical face or circular edge.
To display temporary axes, expand
Hide/Show Items ![](idc1492106051458.image)
(Heads-up View toolbar) and click
View Temporary Axes ![](alp1495814023439.image)
.
-
Click Mate
(Assembly toolbar) or .

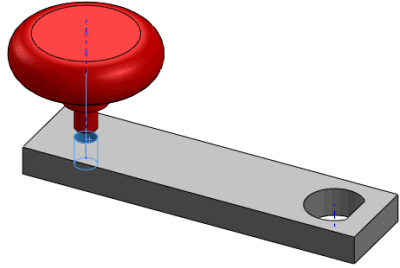

The mate defaults to a cylindrical mate.
![defaultconcentric.png](kff1490875470973.image)
- Complete the mate and click
.
