Predefined Views

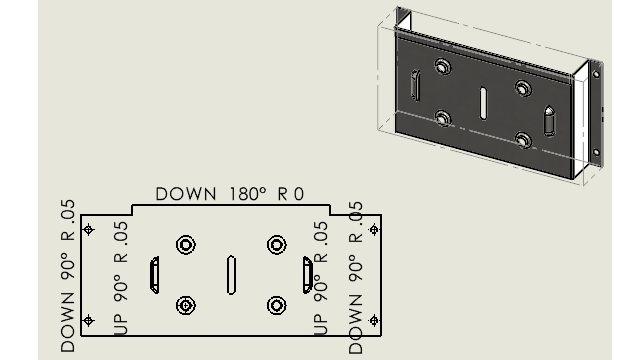

When you create a predefined view in a drawing, you can specify the model orientation as trimetric, dimetric, or flat pattern. This is helpful if you need drawing templates that contain specific predefined views.

Click Predefined View or Insert > Drawing View > Predefined. In the PropertyManager, under Orientation, select Flat pattern, Trimetric, or Dimetric.
