Blended Curvature-Based Mesher

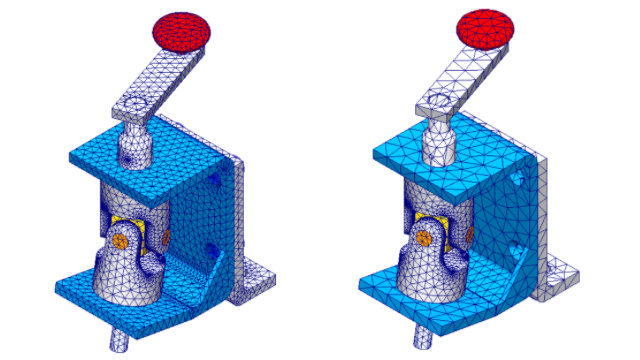

Using the Blended Curvature-based mesher, you can apply mesh control that has a larger element size than the global mesh size.

Create a coarser mesh for bodies that may be not critical for the simulation to reduce the analysis time. Previously, you could only apply a mesh control to refine the mesh of selected bodies and geometric entities.

After creating a mesh, you can access the Mesh summary, which reports the size assignments of individual bodies and geometric entities. In a Simulation study tree, right-click Mesh and click Summary.

The Blended Curvature-based mesher is the default mesher for new simulation studies.
The option Calculate Minimum Element Size (available for the Blended curvature-based mesher) is removed from the Mesh PropertyManager.
