Purpose
This document explains how to create a c# dll.
Create C# project with Visual Studio
- Open Visual Studio
- File -> New -> Project

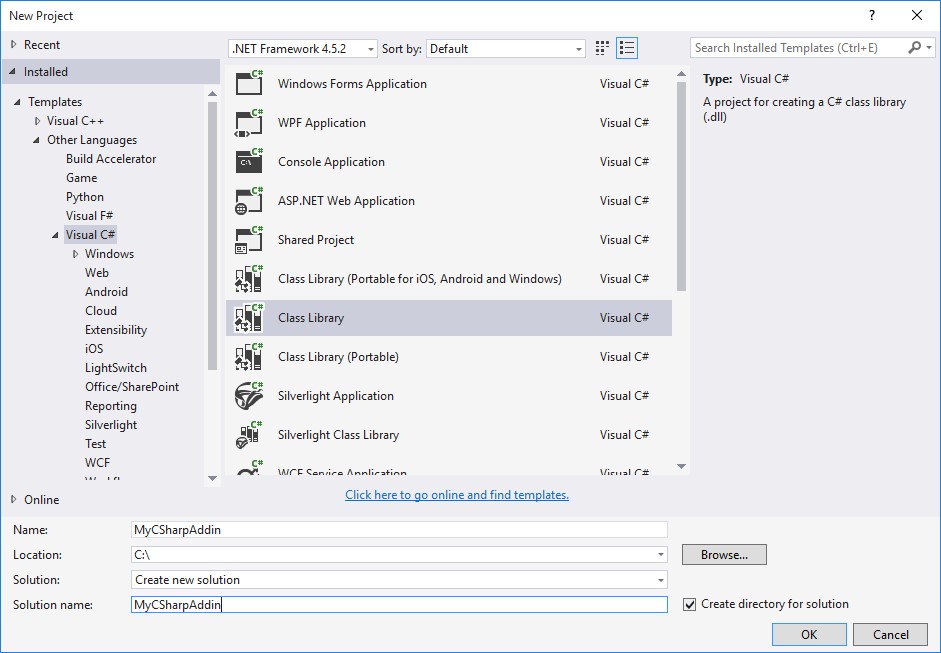

- Select Visual C# -> Class Library
Click OK.
In the solution tree -> Go to project properties.
Verify that solution platform is x64
Otherwise create it.
In Build tab, select platform x64 and check "Register for COM interop"

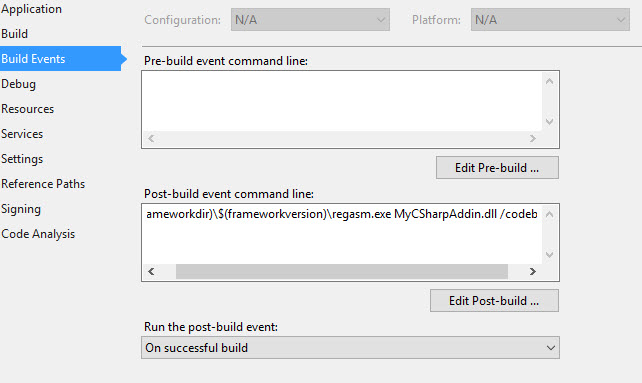

In the Build Events tab, In the Post-build events command line Add this comand line: C:\WINDOWS\Microsoft.NET\Framework64\$(frameworkversion)\regasm.exe "$(TargetPath)" /codebase

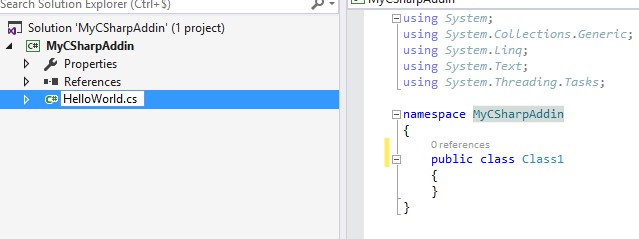

Rename Class1.cs file with an appropriate name for the add-in.
Modify code to make the Add-in
Open Assemblyinfo.cs, cut selected lines below:

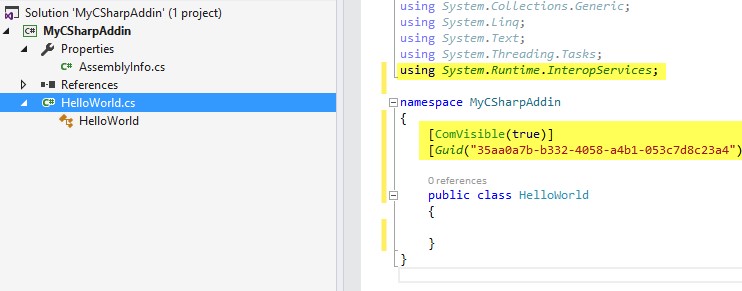

In your Class interface (HelloWorld.cs):
- Paste previously copied information
- Verify that you have ComVisible(true) and not ComVisible(false).
- Add: using System.Runtime.InteropServices;
Like in screen shot below:
Include reference to EwAPIX.dll

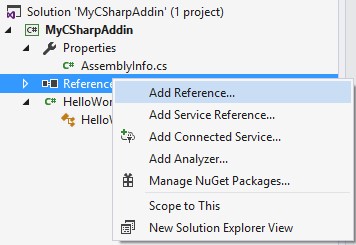

Right click on Reference and select Add reference...
Browse to the location of EwAPIX.dll

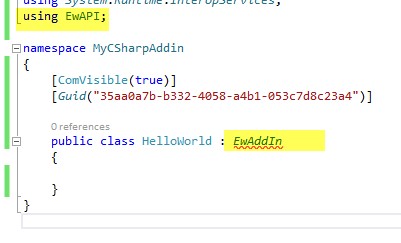

Add: using EwAPI;
Inherit your main class from EwAddIn
Implement those two methods:
public class HelloWorld : EwAPI.EwAddIn
{
public bool connectToEwAPI(object ewInteropFactory)
{
if (mEwInteropFactory == null)
return false;
mEwApplicationX = mEwInteropFactory.
getEwApplication(
"License Code(*)", out ewErrorCode);
if ((ewErrorCode !=
EwErrorCode.EW_NO_ERROR) ||(mEwApplicationX ==
null))
return false;
hello();
return true;
}
public bool disconnectFromEwApi()
{
goodBye();
return true;
}
Finally add those two methods to your main class to register this add-in:
[ComRegisterFunctionAttribute]
public static void RegisterFunction(Type t)
{
try
{
Microsoft.Win32.RegistryKey hklm = Microsoft.Win32.Registry.LocalMachine;
Microsoft.Win32.RegistryKey hkcu = Microsoft.Win32.Registry.CurrentUser;
string keyname = "SOFTWARE\\Trace Software\\Electrical\\AddIns\\{" + t.GUID.ToString() + "}";
Microsoft.Win32.RegistryKey addinkey = hklm.CreateSubKey(keyname);
addinkey.SetValue(null, 0);
addinkey.SetValue("Description", "Your add in description");
addinkey.SetValue("Title", "Your Add-in Name");
addinkey.SetValue("Path", System.Reflection.Assembly.GetExecutingAssembly().Location);
addinkey = hkcu.CreateSubKey(keyname);
addinkey.SetValue("StartUp", Convert.ToInt32(1), Microsoft.Win32.RegistryValueKind.DWord);
}
catch (System.NullReferenceException nl)
{
Console.WriteLine("There was a problem registering this dll. \n\"" + nl.Message + "\"");
}
catch (System.Exception e)
{
Console.WriteLine(e.Message);
}
}
[ComUnregisterFunctionAttribute]
public static void UnregisterFunction(Type t)
{
try
{
Microsoft.Win32.RegistryKey hklm = Microsoft.Win32.Registry.LocalMachine;
Microsoft.Win32.RegistryKey hkcu = Microsoft.Win32.Registry.CurrentUser;
string keyname = "Software\\Trace Software\\Electrical\\AddIns\\{" + t.GUID.ToString() + "}";
hklm.DeleteSubKey(keyname);
hkcu.DeleteSubKey(keyname);
}
catch (System.NullReferenceException nl)
{
Console.WriteLine("There was a problem unregistering this dll: " + nl.Message);
}
catch (System.Exception e)
{
Console.WriteLine("There was a problem unregistering this dll: " + e.Message);
}
}
Here is an example of implementation:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Runtime.InteropServices;
using EwAPI;
namespace MyCSharpAddin
{
[ComVisible(true)]
[Guid("edb6bfd9-22a6-486a-98b0-07be0d9b34d0")]
public class HelloWorld : EwAPI.EwAddIn
{
public bool connectToEwAPI(object ewInteropFactory)
{
if (mEwInteropFactory == null)
return false;
mEwApplicationX = mEwInteropFactory.
getEwApplication(
"License Code(*)", out ewErrorCode);
if ((ewErrorCode !=
EwErrorCode.EW_NO_ERROR) ||(mEwApplicationX ==
null))
return false;
hello();
return true;
}
public bool disconnectFromEwApi()
{
goodBye();
return true;
}
public void hello()
{
if (mEwApplicationX == null)
return;
EwDialogTaskX ewDialogTask = mEwApplicationX.
getEwDialogTask(out ewErrorCode);
if ((ewErrorCode !=
EwErrorCode.EW_NO_ERROR) || (ewDialogTask ==
null))
return;
ewDialogTask.addButton("Ok", 1);
ewDialogTask.show(out ewErrorCode);
}
public void goodBye()
{
if (mEwApplicationX == null)
return;
EwDialogTaskX ewDialogTask = mEwApplicationX.
getEwDialogTask(out ewErrorCode);
if ((ewErrorCode !=
EwErrorCode.EW_NO_ERROR) || (ewDialogTask ==
null))
return;
ewDialogTask.addButton("Ok", 1);
ewDialogTask.show(out ewErrorCode);
}
[ComRegisterFunctionAttribute]
public static void RegisterFunction(Type t)
{
try
{
Microsoft.Win32.RegistryKey hklm = Microsoft.Win32.Registry.LocalMachine;
Microsoft.Win32.RegistryKey hkcu = Microsoft.Win32.Registry.CurrentUser;
string keyname = "SOFTWARE\\Trace Software\\Electrical\\AddIns\\{" + t.GUID.ToString() + "}";
Microsoft.Win32.RegistryKey addinkey = hklm.CreateSubKey(keyname);
addinkey.SetValue(null, 0);
addinkey.SetValue("Description", "Your add in description");
addinkey.SetValue("Title", "Your Add-in Name");
addinkey.SetValue("Path", System.Reflection.Assembly.GetExecutingAssembly().Location);
addinkey = hkcu.CreateSubKey(keyname);
addinkey.SetValue("StartUp", Convert.ToInt32(1), Microsoft.Win32.RegistryValueKind.DWord);
}
catch (System.NullReferenceException nl)
{
Console.WriteLine("There was a problem registering this dll. \n\"" + nl.Message + "\"");
}
catch (System.Exception e)
{
Console.WriteLine(e.Message);
}
}
[ComUnregisterFunctionAttribute]
public static void UnregisterFunction(Type t)
{
try
{
Microsoft.Win32.RegistryKey hklm = Microsoft.Win32.Registry.LocalMachine;
Microsoft.Win32.RegistryKey hkcu = Microsoft.Win32.Registry.CurrentUser;
string keyname = "Software\\Trace Software\\Electrical\\AddIns\\{" + t.GUID.ToString() + "}";
hklm.DeleteSubKey(keyname);
hkcu.DeleteSubKey(keyname);
}
catch (System.NullReferenceException nl)
{
Console.WriteLine("There was a problem unregistering this dll: " + nl.Message);
}
catch (System.Exception e)
{
Console.WriteLine("There was a problem unregistering this dll: " + e.Message);
}
}
}
}
- Note
- License Code(*): Contact your reseller to get your license code
